GIGABYTE H610M S2H DDR5 mATX Motherboard

GIGABYTE H610M S2H DDR5 mATX Motherboard

Stock: In Stock
Model: H610M S2H DDR5
Product id: 28338

Based on 0 reviews. - Write a review

11,500৳

Ex Tax: 11,500৳

EMI starts at 4,033৳/month. View all 25 banks EMI plans >

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supports Intel 12th-14th Gen CPUs
Dual-channel DDR5 up to 64GB
HDMI, DP, DVI-D & D-Sub outputs
PCIe 4.0 x16 & M.2 slot support

Basic Information
Supported CPU	Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package L3 cache varies with CPU
Chipset	Intel H610 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
General Information
DVI	1 x DVI-D port
Expansion Slots
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type	DDR5
Slots	2 x DDR DIMM sockets
Supported Memory	13th Generation Intel Core i9/i7 processors: Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: Support for DDR5 4800/4400 MT/s memory modules 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 64 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI	1 x HDMI port
USB (s)	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage	Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Audio	3 x audio jacks
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Others
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) cFosSpeed
Connectivity
D-Sub	1 x D-Sub port
Warranty Information
Warranty	3 years

GIGABYTE H610M S2H DDR5 mATX Motherboard

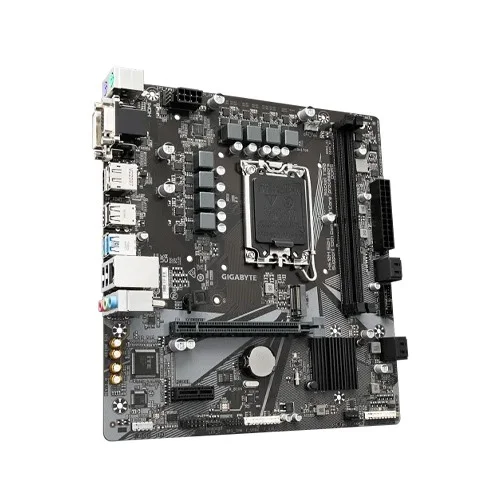

The GIGABYTE H610M S2H DDR5 mATX Motherboard is designed to offer users a stable and efficient platform for building modern PCs using Intel’s 12th, 13th, or 14th Gen Core processors. Built on the Intel H610 chipset, this micro-ATX motherboard supports LGA1700 CPUs, ensuring solid compatibility and performance for everyday computing, professional workloads, or gaming setups.With support for DDR5 memory up to 64GB, users can enjoy the latest memory technology that boosts bandwidth and multitasking capability. The dual-channel design enhances system responsiveness, while compatibility with Intel XMP profiles ensures easy performance tuning for enthusiasts.The motherboard features integrated Intel UHD Graphics support and offers multiple display outputs, including HDMI 2.1, DisplayPort, DVI-D, and D-Sub. This allows seamless multi-display setups with high resolutions, making it ideal for content creators and professionals.For connectivity, the GIGABYTE H610M S2H includes USB 3.2 Gen 1, multiple USB 2.0 ports, Realtek Gigabit LAN, and expansion slots with PCIe 4.0 x16 and PCIe 3.0 x1 interfaces. It also supports an M.2 PCIe 3.0 slot and four SATA 6Gb/s connectors for high-speed storage options.The board is equipped with advanced features like Q-Flash Plus, RGB Fusion, Smart Backup, and APP Center utilities for enhanced customization and control. Audio is powered by a high-definition Realtek codec for immersive sound experiences.Backed by a 3-year warranty, this motherboard delivers excellent value and performance in a compact micro-ATX form factor. Whether you're building a new system or upgrading, the GIGABYTE H610M S2H DDR5 is a solid, future-ready choice.

Features

Supports 12th/13th/14th Gen Intel Core CPUs with LGA1700 socket
Dual-channel DDR5 memory up to 64GB for faster performance
PCIe 4.0 x16 and PCIe 3.0 x1 slots for high-speed expansion
Integrated Intel UHD Graphics with HDMI, DP, DVI-D, and D-Sub ports
1 x M.2 PCIe 3.0 slot and 4 x SATA 6Gb/s for versatile storage
Realtek GbE LAN for stable and fast internet connectivity
High-definition 7.1-channel audio with Realtek Audio CODEC
Q-Flash Plus, RGB Fusion, and APP Center utility support
Multiple USB 3.2 Gen 1 and USB 2.0 ports for connectivity
Compact Micro ATX form factor with durable components
