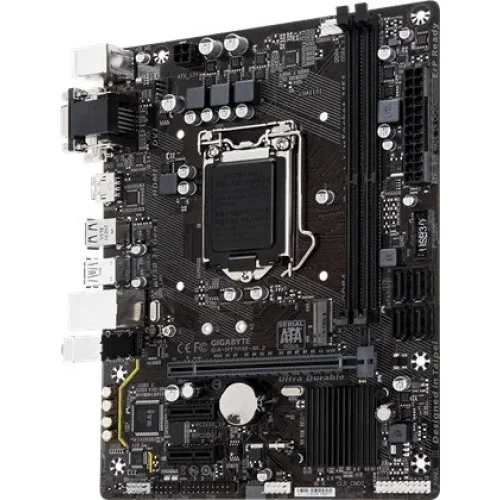

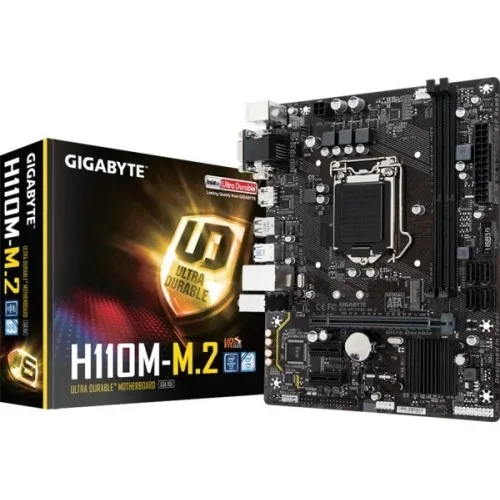

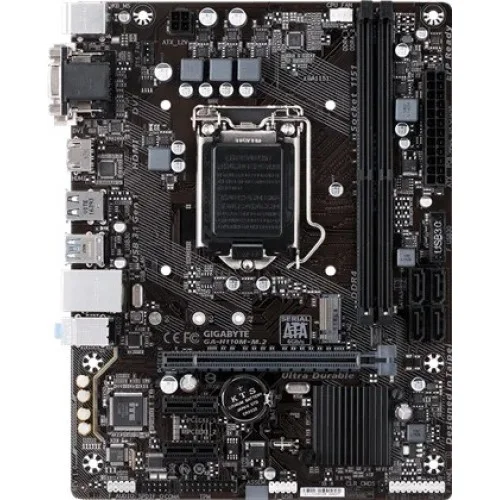

Gigabyte GA-H110M-M.2 Motherboard
The Gigabyte GA-H110M-M.2 (Rev. 1.0) is a compact Micro ATX motherboard designed for budget-conscious PC users who want a reliable platform for 6th and 7th Generation Intel processors. Built around the Intel H110 Express chipset and LGA1151 socket, it supports Intel Core i7, i5, i3, Pentium and Celeron processors. For Bangladeshi users upgrading an older desktop or building an affordable office, home, study or everyday-use PC, this motherboard provides a practical combination of essential connectivity, DDR4 memory support and M.2 storage.
Processor and Memory Support
The motherboard supports 6th and 7th Generation Intel processors, making it suitable for compatible Core i3, Core i5, Core i7, Pentium and Celeron CPUs. It features two DDR4 DIMM slots with support for up to 32GB of system memory in a dual-channel architecture. DDR4 2400/2133 MHz memory modules are supported, while 2400 MHz and XMP functionality requires a compatible 7th Generation processor. This makes the GA-H110M-M.2 a sensible choice for users who already have compatible Intel hardware and want to keep their upgrade cost under control.
M.2 and Storage Connectivity
One of the key advantages of this Gigabyte motherboard is its M.2 connector. The M.2 socket supports 2242, 2260 and 2280 storage devices with SATA and PCIe x2 support. Alongside the M.2 slot, there are four SATA 6Gb/s connectors for conventional SATA SSDs and hard drives. Users can therefore configure a faster M.2-based system drive while keeping additional storage for documents, software, games and media. For an older PC upgrade in Bangladesh, moving from a traditional hard drive to an appropriate M.2 SSD can provide a noticeable improvement in everyday responsiveness.
Display, Audio and Networking
The integrated graphics outputs include HDMI 1.4, DVI-D and D-Sub, allowing compatible Intel processors with integrated graphics to connect with different types of monitors. HDMI supports up to 4096x2160 resolution at 24Hz, while DVI-D and D-Sub support up to 1920x1200 at 60Hz. The board also features Realtek ALC887 High Definition Audio with support for multi-channel audio and S/PDIF output. An Intel Gigabit LAN controller provides 10/100/1000 Mbps network connectivity for office work, browsing, online learning and general internet use.
USB Ports and Compact Micro ATX Design
With USB 3.1 Gen 1 and USB 2.0/1.1 connectivity, the GA-H110M-M.2 provides ports for keyboards, mice, storage devices, printers and other everyday peripherals. Its 22.6cm x 17.4cm Micro ATX form factor makes it suitable for compact desktop cases where space is limited. This can be particularly useful for students, home users, small offices and budget PC builders who do not need a large ATX motherboard.
Who Should Buy This Motherboard?
The Gigabyte GA-H110M-M.2 is best suited to users working with compatible 6th or 7th Generation Intel hardware. It can be a practical option for office computers, educational PCs, home productivity systems, basic multimedia use and affordable desktop upgrades. It is also useful for buyers who already own an LGA1151 processor and DDR4 RAM and want to avoid replacing multiple components at once. Creatus can be a convenient choice for Bangladeshi buyers looking for a motherboard with the specifications needed for a compatible budget PC build.
Reliability and Practical Value
Gigabyte includes features such as voltage, temperature and fan-speed monitoring, overheating warnings and fan-speed control to help users monitor system operation. Q-Flash and other Gigabyte utilities also provide practical maintenance and management features. However, buyers should verify processor compatibility, BIOS requirements, RAM specifications and the warranty terms before purchasing, especially when upgrading an older-generation platform. Creatus helps buyers make an informed purchase by providing product information for PC components in the Bangladesh market.
Why Choose Gigabyte GA-H110M-M.2?
If your priority is an affordable motherboard for an existing 6th or 7th Gen Intel PC, the GA-H110M-M.2 offers useful features without unnecessary complexity. Its DDR4 support, M.2 storage interface, multiple display outputs, Gigabit LAN and Micro ATX design make it suitable for practical everyday computing. For buyers comparing H110 motherboard prices in Bangladesh, checking CPU compatibility, storage requirements and warranty support is important to ensure the motherboard matches the rest of the PC. Creatus can help you choose the right configuration according to your requirements and budget.
1. What is the Gigabyte GA-H110M-M.2 motherboard price in Bangladesh?
The price can vary depending on stock, warranty and seller. Check the current product price before placing your order, as older-generation motherboard availability can change over time.
2. Does the GA-H110M-M.2 support 6th and 7th Gen Intel processors?
Yes. It supports compatible 6th and 7th Generation Intel Core i7, i5, i3, Pentium and Celeron processors using the LGA1151 socket. 7th Gen processor support requires the appropriate BIOS version.
3. Does this motherboard support M.2 SSD and DDR4 RAM?
Yes. It has one M.2 connector supporting compatible SATA and PCIe x2 SSDs, along with two DDR4 DIMM slots supporting up to 32GB of system memory.
