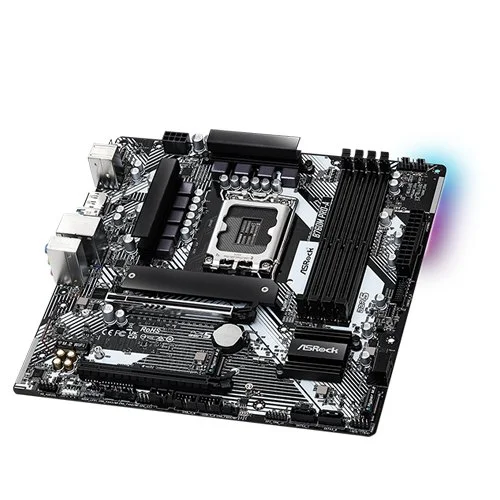

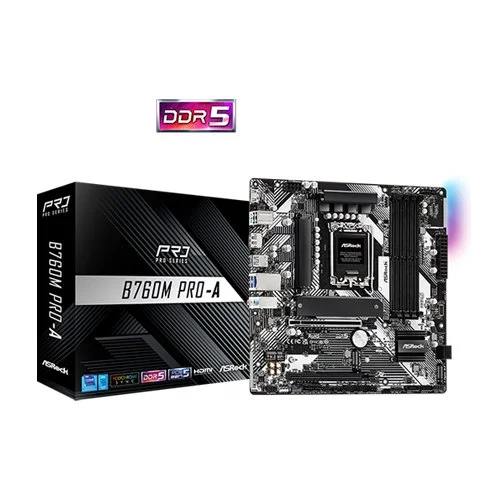

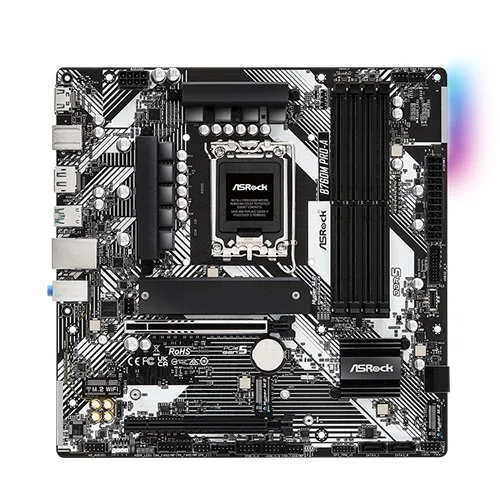

ASRock B760M Pro-A DDR5 Micro ATX Motherboard

ASRock B760M Pro-A DDR5 Micro ATX Motherboard is designed to cater to the needs of gamers, PC enthusiasts, and professionals looking for a reliable and efficient foundation for their builds. This motherboard supports the latest 14th, 13th, and 12th generation Intel® Core™ processors with the LGA1700 socket, making it a versatile choice for those looking to leverage Intel's Hybrid Technology and advanced performance features like Intel Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT). The ASRock B760M Pro-A is built around the Intel B760 chipset, offering robust support for the latest technologies and high-speed components. It features a Micro ATX form factor, measuring 9.6 inches by 9.6 inches (24.4 cm x 24.4 cm), making it compact enough to fit in smaller cases while still providing a wealth of features. The motherboard supports DDR5 memory, a significant upgrade from DDR4, providing faster data rates and improved power efficiency. It has four memory slots supporting dual-channel DDR5 memory technology, with speeds up to 5333+ MHz (OC) and a maximum capacity of 64GB. This makes it ideal for multitasking and running demanding applications. In terms of expansion slots, the ASRock B760M Pro-A offers a range of options. It has a PCIe 5.0 x16 slot for the latest graphics cards, supporting x16 mode, which ensures maximum bandwidth for high-performance GPUs. Additionally, it includes a PCIe 3.0 x16 slot (operating in x4 mode) and an M.2 socket (Key E) for a WiFi/BT module or Intel CNVio/CNVio2, catering to those who want to add wireless connectivity options. The motherboard supports AMD CrossFire, providing the ability to use multiple AMD graphics cards for enhanced gaming performance. The ASRock B760M Pro-A also offers extensive storage options with three Hyper M.2 sockets, all supporting PCIe Gen4x4 (64 Gb/s) mode for ultra-fast NVMe SSDs. Additionally, it has four SATA3 6.0 Gb/s connectors for traditional HDDs and SSDs, allowing users to build a comprehensive storage solution. RAID support is also available, with RAID 0, 1, 5, and 10 configurations for SATA storage devices, providing flexibility for performance or redundancy as needed. For graphics output, the motherboard supports Intel Xe Graphics Architecture (Gen 12) and provides one HDMI 2.1 port and one DisplayPort 1.4, capable of delivering high-resolution output, with HDMI supporting up to 4K at 60Hz and DisplayPort supporting up to 8K at 60Hz or 5K at 120Hz. This makes it suitable for high-resolution monitors and multi-monitor setups. The audio experience is powered by the Realtek ALC897 Audio Codec, providing 7.1 channel HD audio, which is sufficient for most gaming and multimedia applications. The ASRock B760M Pro-A motherboard emphasizes durability and connectivity. It features a 7+1+1 power phase design with Dr.MOS for stable power delivery to the CPU and GPU, which is crucial for overclocking and maintaining system stability under heavy loads. The inclusion of 2.5 Gigabit LAN (Dragon RTL8125BG) with advanced features such as bandwidth control and optimized settings for different applications (gaming, browsing, streaming) ensures a smooth and lag-free online experience. ASRock also provides a suite of software tools to enhance user experience, including A-Tuning Utility, Dragon 2.5G LAN Software, Polychrome SYNC for RGB lighting control, and various UEFI tools like EZ Mode, Full HD UEFI, and Instant Flash. These tools make system management, performance tuning, and troubleshooting more straightforward and accessible, even for novice users. Overall, the ASRock B760M Pro-A DDR5 Micro ATX Motherboard is a well-rounded motherboard that offers a blend of performance, expandability, and durability. It is an excellent choice for those looking to build a high-performance PC using the latest Intel processors and DDR5 memory while benefiting from advanced connectivity and robust power delivery.
