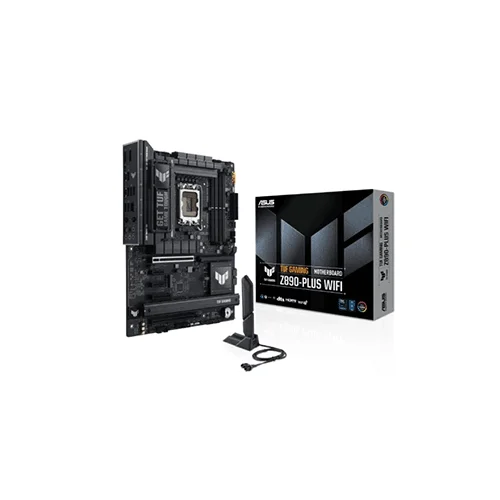

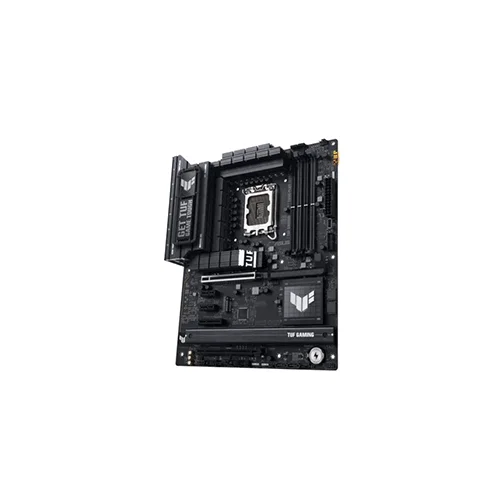

ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX Motherboard
- Stock: In Stock
- Model: TUF GAMING Z890-PLUS WIFI
- Product id: 28097
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9066+MT/s (OC)
- Graphics Output: 1x DisplayPort, 1 x HDMI, 2 x USB Type-C
- Features: 4x M.2, 1x Intel 2.5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4
| Basic Information | |
| Supported CPU | Support Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z890 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm) |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Expansion Slots | |
| PCI | Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 4.0 x1 slots |
| M.2 Socket | Total Supports 4 x M.2 slots Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| Memory | |
| Type | DDR5 |
| Slots | 4 x DIMM slots |
| Supported Memory | Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
| Maximum Memory | 256GB |
| Graphics | |
| Graphics | 1 x DisplayPort 1 x HDMI port 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output |
| Connector & Ports | |
| HDMI | 1 x HDMI |
| Display Port (s) | 1 x DisplayPort 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output |
| USB (s) | Rear USB (Total 8 ports) 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet TUF LANGuard |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 |
| Supported Storage | Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |

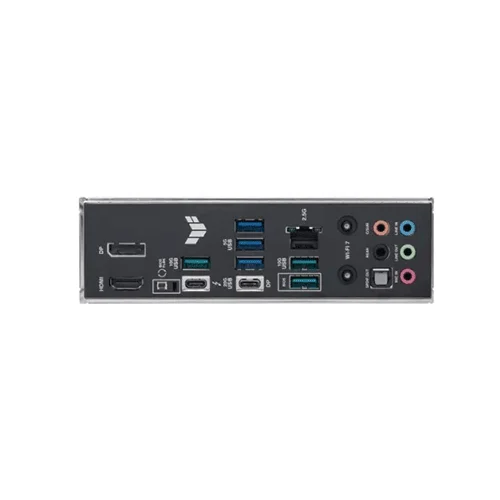

| Internal I/O Ports | Back Panel I/O Ports 1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 3 x USB 10Gbps ports (3 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |
| Others | |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
| Warranty Information | |
| Warranty | 3 Years |
ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX Motherboard
The ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX motherboard is designed to provide robust performance and reliability for gamers and PC enthusiasts. Powered by the Intel Z890 Chipset and compatible with the latest Intel Core Ultra Processors (Series 2), this motherboard offers exceptional performance with support for Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. Built for high-speed memory, the motherboard supports DDR5 RAM with a capacity of up to 256GB and speeds reaching 9066+ MT/s (OC), ensuring seamless multitasking and faster game loads. The dual-channel memory architecture and support for Intel Extreme Memory Profile (XMP) provide additional performance enhancements. Equipped with 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (x4 mode), and multiple M.2 slots (including PCIe 5.0 x4 mode support), the Z890-PLUS WIFI offers excellent expansion options for graphics cards, storage drives, and other high-performance components. With a total of 4 x M.2 slots and 4 x SATA 6Gb/s ports, users can configure a powerful storage setup tailored to their needs. For connectivity, this motherboard includes Wi-Fi 7 (802.11be) with 2.9Gbps transfer rates and Bluetooth v5.4, ensuring ultra-fast wireless speeds. It also features Intel 2.5Gb Ethernet and Thunderbolt 4 support, delivering a reliable and fast wired networking experience. Audio is powered by the Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC, providing high-quality sound for gaming and multimedia. The motherboard also boasts TUF PROTECTION, including ESD Guards, TUF LANGuard, and overvoltage protection, ensuring durability and long-lasting performance. With Aura Sync RGB lighting, M.2 heatsinks, and easy-to-use BIOS tools, the ASUS TUF GAMING Z890-PLUS WIFI is an ideal choice for gamers seeking power, stability, and customization in their build, backed by a 3-year warranty.
