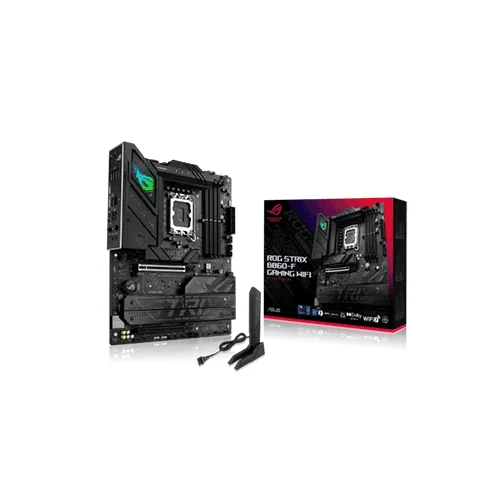

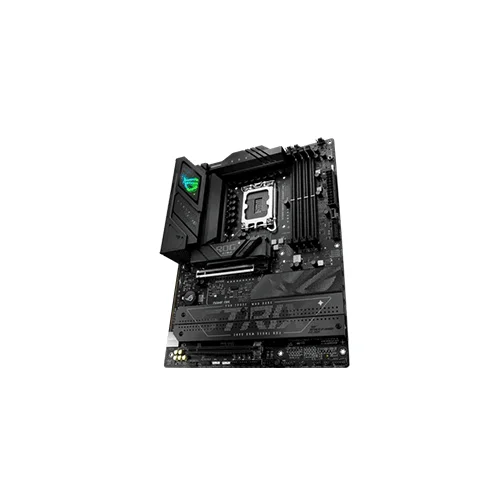

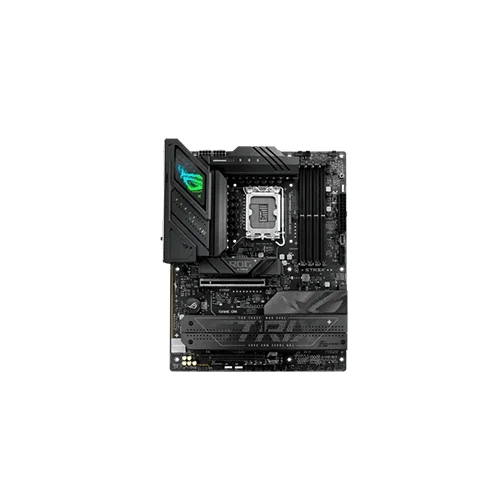

Asus ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard

Name: Asus ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard
Brand: ASUS
Price: 43.00 BDT
Availability: InStock

Save: 5200৳ (11%)

Asus ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard

Stock: In Stock
Model: ROG STRIX B860-F GAMING WIFI
Product id: 28101

Based on 0 reviews. - Write a review

43,200৳

48,400৳

Ex Tax: 43,200৳

EMI starts at 15,149৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Max 256GB, 9066MT/s (OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x USB Type-C (Thunderbolt)
Features: 4x M.2, Realtek 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4

Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset	INTEL B860
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Supports up to 32-bit/384 kHz playback
Expansion Slots
PCI	Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 Socket	4 x M.2
Memory
Type	DDR5
Slots	4
Supported Memory	4 x DIMM slots, max. 256GB, DDR5 Support up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module DIMM Fit ASUS Enhanced Memory Profile III (AEMP III)
Maximum Memory	Maximum Memory Capacity 256GB
Graphics
Graphics	1 x DisplayPort 1 x HDMI port 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4. Supports 8K@60Hz with DSC as specified in HDMI 2.1. In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, with maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. VGA resolution support depends on the processors' or graphic cards' resolution.
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4a
USB (s)	Rear USB (Total 9 ports) 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 6 x USB 5Gbps ports (6 x Type-A) Front USB (Total 6 ports) 1 x USB 10Gbps (1 x USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A
LAN Port (s)	1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module	Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
Supported Storage	Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with SSD device, PCIEX16(G4) will be disabled. Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
RAID	SATA RAID 0/1/5/10
Audio	2 x Audio jacks

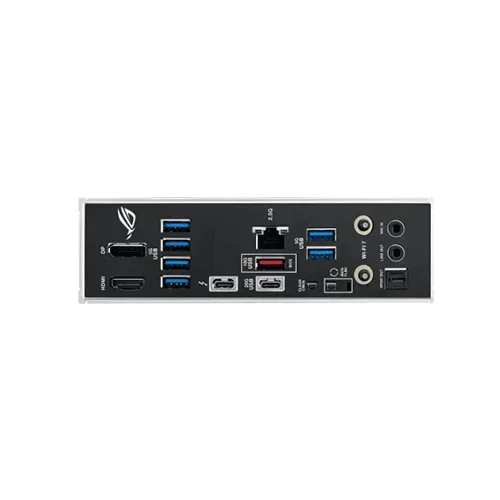

Internal I/O Ports	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x Thunderbolt™ 4 (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 6 x USB 5Gbps ports (6 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Others
Special Features	Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers
Bundled Software	ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - Power Saving ASUS Driver Hub AIDA64 Extreme (60 days free trial) HWiNFO ASUS GlideX TurboV Core Adobe Creative Cloud (Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS NPU Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Warranty	3 Year warranty

Asus ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard

The Asus ROG STRIX B860-F GAMING WIFI is a powerful ATX motherboard built to unleash the full potential of Intel's latest Core Ultra Processors (Series 2) with the LGA1851 socket. Powered by the Intel B860 chipset, it offers exceptional performance and next-generation connectivity for gamers and creators alike. Designed with robust build quality and stylish ROG aesthetics, this board supports up to 256GB DDR5 memory with speeds reaching 9066MT/s (OC). For expansion, it includes a PCIe 5.0 x16 slot for high-end graphics cards and an additional PCIe 4.0 x16 slot, along with four M.2 slots supporting PCIe Gen 5 and Gen 4 storage, ensuring blazing-fast data access and gaming load times. Connectivity is a major highlight with Wi-Fi 7, Intel 2.5Gb Ethernet, and an extensive range of USB ports, including a Thunderbolt 4 Type-C, a USB 20Gbps Type-C, and multiple USB 5Gbps ports. Display options include HDMI 2.1 and DisplayPort 1.4a, supporting up to 8K@60Hz resolutions, perfect for cutting-edge monitors. Audio is crystal clear with the ROG SupremeFX 7.1 Surround Sound powered by the ALC4080 codec, offering up to 32-bit/384kHz playback. Thermal performance is enhanced by a VRM heatsink design and M.2 heatsink backplates, while the Q-Design features like M.2 Q-Latch and PCIe Q-Release make building and upgrading easier. Additional premium features include Aura Sync RGB lighting, BIOS FlashBack™, Clear CMOS button, and support for AI-based optimizations. Bundled software like Armoury Crate, Dolby Atmos, and AIDA64 Extreme (trial) enhance the user experience further. Backed by a 3-year warranty, the ASUS ROG STRIX B860-F GAMING WIFI is an outstanding choice for gamers and PC builders who demand high-end features, speed, and reliability.
