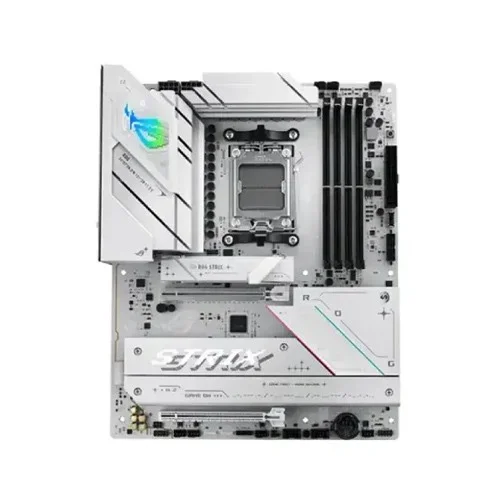

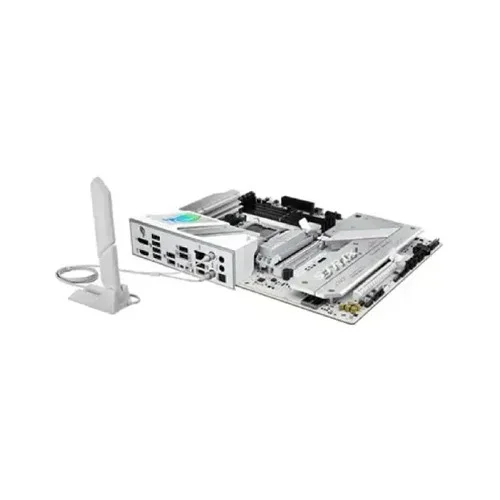

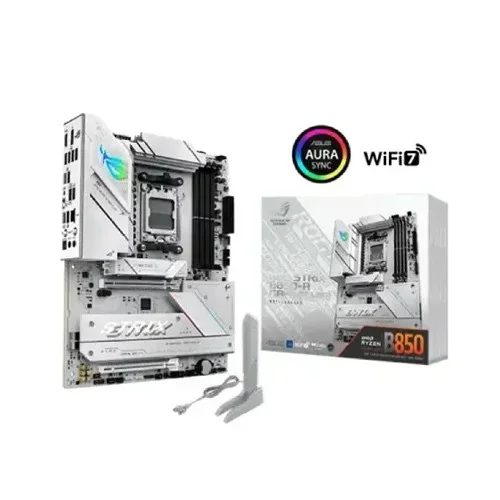

ASUS ROG STRIX B850-A GAMING WIFI AMD Ryzen AM5 ATX Gaming Motherboard
- Stock: In Stock
- Model: ROG STRIX B850-A GAMING WIFI
- Product id: 27805
- Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
- Supported RAM: 4x DDR5, up to 256GB, 8000+ MT/s (OC)
- Graphics Output: 1x HDMI, 1x Display Port
- Features: Realtek 2.5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4
| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Expansion Slots | |
| PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports PCIe 4.0 x8 or x4 mode)* AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)** Specifications vary by CPU types. ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3 |
| M.2 Socket | 4 x M.2 |
| Memory | |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
| Maximum Memory | 256GB |
| Graphics | |
| Graphics | 1 x DisplayPort* 1 x HDMI™ port** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4 ** Supports 4K@60Hz as specified in HDMI 2.1 *** VGA resolution support depends on processors' or graphic cards' resolution. |
| Connector & Ports | |
| HDMI | 1x HDMI 2.1 |
| Display Port (s) | 1x DisplayPort 1.4 |
| USB (s) | Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) |
| Front USB | Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth v5.4 |
| Supported Storage | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth v5.4 |
| RAID | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth v5.4 |
| Audio | 2 x Audio jacks |

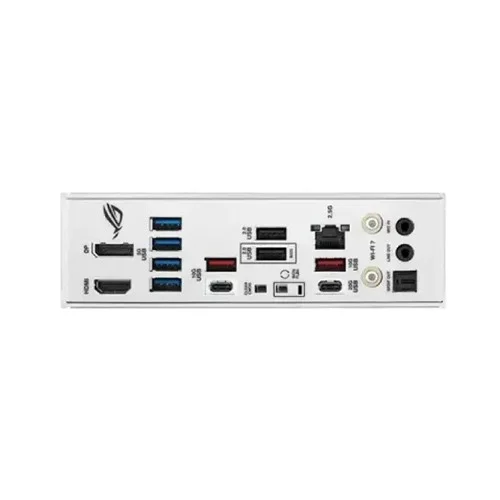

| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| Others | |
| Special Features | Extreme Engine Digi+ 5K Black metallic capacitors ASUS Q-Design M.2 Q-Latch M.2 Q-Release M.2 Q-Slide PCIe Slot Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink backplate M.2 heatsink ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED Clear CMOS button ProCool Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable Gen 2 headers |
| Bundled Software | ROG Exclusive Software ROG CPU-Z Dolby Atmos |
| Warranty Information | |
| Warranty | 3 Years Warranty |
ASUS ROG STRIX B850-A GAMING WIFI AMD Ryzen AM5 ATX Gaming Motherboard
ASUS ROG STRIX B850-A GAMING WIFI is a high-performance ATX gaming motherboard designed for the latest AMD Ryzen 9000, 8000, and 7000 series processors. Built on the AMD B850 chipset, this motherboard delivers exceptional performance, advanced connectivity, and premium cooling solutions, making it an ideal choice for gaming enthusiasts and PC builders.Efficient Performance for Modern ComputingSupporting AMD Ryzen AM5 processors, this motherboard ensures top-tier computing power. With DDR5 memory support up to 8000+ MT/s and a maximum capacity of 256GB, it is perfect for gaming and high-performance applications.Reliable Memory Support for MultitaskingEquipped with four DIMM slots, it supports both ECC and Non-ECC Un-buffered DIMM modules. AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP) enable easy overclocking and optimization for peak performance.High-Quality Graphics and Display OptionsFeaturing DisplayPort 1.4 and HDMI 2.1, the motherboard supports stunning 8K and 4K resolutions, providing crisp visuals for immersive gaming and professional workloads.Fast and Versatile Storage OptionsWith four M.2 slots and two SATA 6Gb/s ports, users can leverage PCIe 5.0 and PCIe 4.0 storage speeds, ensuring ultra-fast boot times and seamless data transfers.Comprehensive Connectivity PortsThe motherboard includes 10 rear USB ports, including USB 20Gbps Type-C®, USB 10Gbps, and USB 5Gbps ports. It also features Intel 2.5Gb Ethernet and Wi-Fi 7 with Bluetooth 5.4 for ultra-fast networking and stable connections.Enhanced Cooling and DurabilityAdvanced cooling solutions, including M.2 heatsinks, multiple fan headers, and an AIO pump header, ensure the system remains cool under heavy workloads. The ROG SupremeFX 7.1 Surround Sound with ALC4080 audio codec delivers crystal-clear audio for an immersive experience.Built for Stability and LongevityThe motherboard features user-friendly Q-Design elements such as PCIe Slot Q-Release Slim, M.2 Q-Latch, and SafeSlot for easy upgrades. The pre-mounted I/O shield and ASUS EZ DIY tools further enhance the building experience.Why Choose the ASUS ROG STRIX B850-A?With its high-speed performance, advanced cooling, and top-tier connectivity, the ASUS ROG STRIX B850-A GAMING WIFI is the ultimate choice for gamers, content creators, and professionals seeking a powerful and future-proof motherboard.
Features
- Supports AMD Ryzen AM5 Processors – Compatible with Ryzen 9000, 8000, and 7000 series CPUs.
- Advanced DDR5 Memory Support – Up to 256GB, speeds exceeding 8000+MT/s for high performance.
- PCIe 5.0 & PCIe 4.0 Storage – Four M.2 slots and two SATA 6Gb/s ports for ultra-fast storage.
- Comprehensive Connectivity – USB 20Gbps Type-C®, USB 10Gbps, Intel 2.5Gb LAN, Wi-Fi 7, and Bluetooth 5.4.
- High-Resolution Display Support – HDMI 2.1 (4K@60Hz) and DisplayPort 1.4 (8K@30Hz).
- ROG SupremeFX 7.1 Audio – High-quality ALC4080 codec for immersive sound.
- Enhanced Cooling Solutions – Multiple fan headers, M.2 heatsinks, and an AIO pump header.
- DIY-Friendly Features – Q-Release PCIe Slot, M.2 Q-Latch, Pre-mounted I/O Shield for easy setup.
