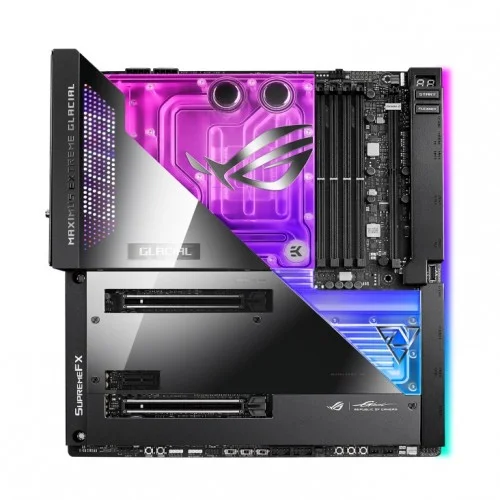

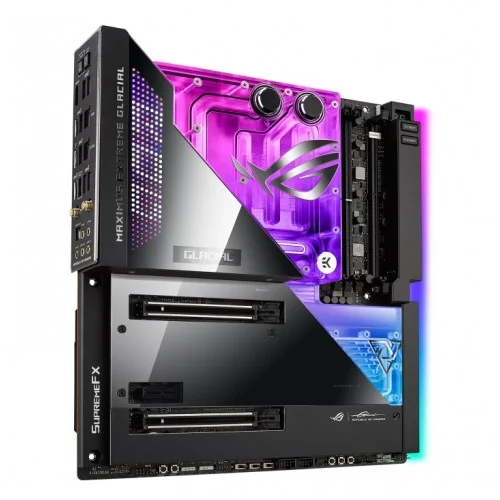

Asus ROG MAXIMUS Z690 EXTREME GLACIAL 12th Gen E-ATX Motherboard

Name: Asus ROG MAXIMUS Z690 EXTREME GLACIAL 12th Gen E-ATX Motherboard
Brand: ASUS
Availability: OutOfStock

Discontinued

Asus ROG MAXIMUS Z690 EXTREME GLACIAL 12th Gen E-ATX Motherboard

Stock: Discontinued
Model: Model-24134
Product id: 22628

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

- Socket LGA1700 for 12th Gen Intel Core, Pentium Gold & Celeron Processors
- 24+1 teamed power stages rated for 105 A
- Cold forged heatsink, enlarged VRM heatsinks
- PCIe 5.0, Gen 5 M.2 slots

General Information
Bundled Software	ROG Exclusive Software – GameFirst VI – ROG CPU-Z – ROG True Voltician – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound – BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation – OLED Display – AniMe MatrixTM LED Display AI Suite 3 – Easy Optimization with AI Overclocking TPU EPU DIGI+ Power Control Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode MemTest86
Special Features	Extreme OC Kit – FlexKey button – LN2 Mode – Probelt – ReTry button – Safe boot button – Start button – Slow Mode Extreme Engine Digi+ – 10K Black Metallic Capacitors – MicroFine Alloy Choke ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Code – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – Steel backplate – VRM heatsink design ASUS EZ DIY – BIOS FlashBack button – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – ROG AURA sync backplate – AURA RGB header(s) – Addressable Gen 2 header(s) Dual BIOS OLED 2″ Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support – Support: up to 60W charging* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W ASUS HYDRANODE – 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P) * Visit ASUS Website for the latest compatibility list.
Connector & Ports
Internal I/O Ports	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow headerPower related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connectorStorage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x Intel® Thunderbolt 4 port (USB Type-C®) 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 1 x Addressable Gen 2 header 1 x AURA RGB header 1 x BIOS Switch button 2 x BCLK button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x Osc sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x V_Latch switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

Asus ROG MAXIMUS Z690 EXTREME GLACIAL 12th Gen E-ATX Motherboard

The Asus ROG MAXIMUS Z690 EXTREME GLACIAL 12th Gen E-ATX Motherboard supports Socket LGA1700 for 12th Gen Intel Core, Pentium Gold & Celeron Processors. It features ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking, and Two-Way AI Noise-Cancelation for easy configuration. It has 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors. 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors. It comes with onboard Wi-Fi 6E, Marvell AQtion 10Gb, Intel 2.5Gb Ethernet, and ASUS LANGuard. This Motherboard delivers the fastest Gaming Connectivity: PCIe 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt 4 support, rear triple USB Type-C ports. It also has ROG SupremeFX ALC4082 codec with ESS ES9018Q2C DAC for high-fidelity audio.

ASUS ROG MAXIMUS Z690 Series Motherboard in Bangladesh 2022

It's clear that ASUS has put most of the focus on users planning to buy DDR5 memory for Alder Lake, but it does have a small selection of DDR4 supported Z690 models. The most premium of these is the ASUS ROG Strix Z690-A Gaming WIFI D4 with a Wi-Fi 6 CNVi, USB 3.2 G2x2 Type-C support, four PCIe 4.0 x4 M.2 slots, as well as a premium SupremeFX ALC4080 HD audio codec and Savitech amplifier pairing for the onboard audio. Its TUF Gaming series occupies the mid-range with a model with WIFI and without, but with four PCIe 4.0 x4 M.2, and dual Type-C connectivity on the rear panel (3.2 G2x2 & G2). Operating as mid-range and entry-level models is the Prime series, with the Z690-P WIFI D4 offering Wi-Fi 6, or without this for a slightly cheaper price. ASUS doesn't have any DDR4 enabled Z690 models in mini-ITX, but for users looking to build a smaller system with Alder Lake and DDR4, the ASUS Prime Z690M Plus D4 offers three PCIe 4.0 x4 M.2 slots, four SATA, and support for DDR4-5333 memory out of the box.

MOTHERBOARD MODEL	SIZE
Asus ROG MAXIMUS Z690 APEX 12th Gen ATX Motherboard	ATX
Asus ROG MAXIMUS Z690 HERO 12th Gen ATX Motherboard	ATX
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard	ATX
Asus ROG MAXIMUS Z690 EXTREME 12th Gen E-ATX Motherboard	E-ATX
Asus ROG MAXIMUS Z690 EXTREME GLACIAL 12th Gen E-ATX Motherboard	E-ATX
