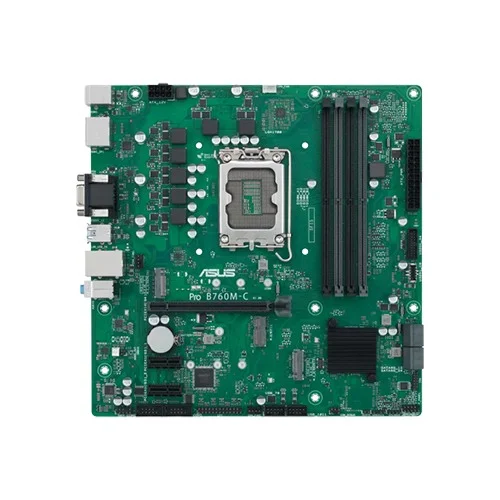

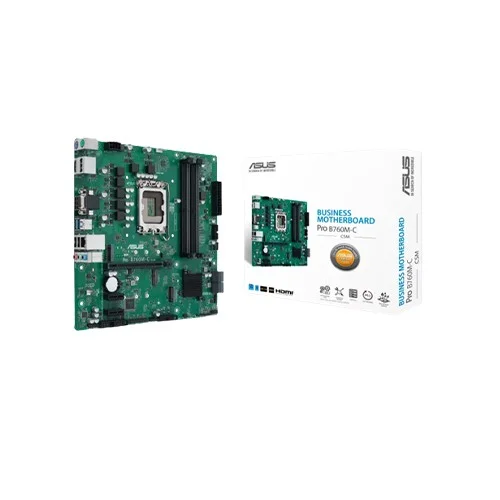

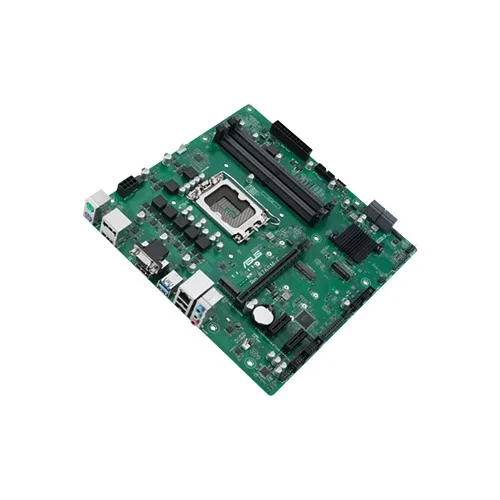

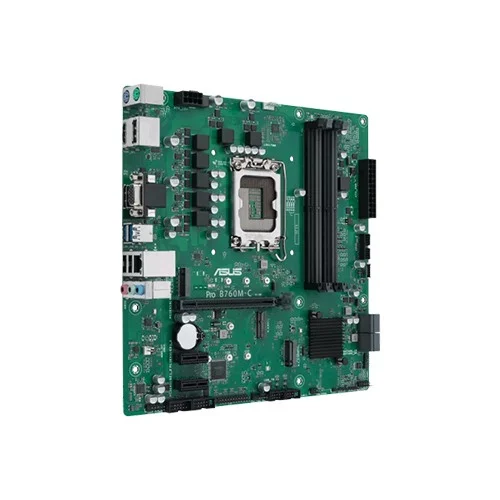

ASUS PRO B760M-C-CSM Micro-ATX Motherboard
- Stock: In Stock
- Model: PRO B760M-C-CSM
- Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 4 x DIMM, Max. 192GB, DDR5 6200(OC)
- Graphics Output: 2 x DisplayPort, 1 x VGA, 1 x HDMI
- Features: 1 x Intel 1Gb Ethernet
Specification
| Supported CPU | Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| BIOS | 128Mb Flash ROM |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B760 Chipset 2 x PCIe 3.0 x1 slots |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem II |
| Maximum Memory | Max. 192GB |
| Graphics | 2 x DisplayPort** 1 x VGA port 1 x HDMI port*** ** Support max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| HDMI | 1 x HDMI |
| Display Port (s) | 2 x DisplayPort |
| VGA (s) | 1 x VGA port |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| LAN Port (s) | 1 x Intel 1Gb Ethernet ASUS LANGuard |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Special Features | ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection |
| Bundled Software | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express (ACCE) |
| Manufacturing Warranty | 3 years |
ASUS PRO B760M-C-CSM Micro-ATX Motherboard
The ASUS PRO B760M-C-CSM is a 14th gen micro-ATX motherboard designed for business use. It supports Intel's LGA1700 socket, making it compatible with 14th Gen Intel Core processors as well as 13th, 12th Gen Intel Core, Pentium Gold, and Celeron processors. The motherboard features the Intel B760 chipset and supports up to 192GB of DDR5 memory with speeds up to 6200(OC). It has four DIMM slots with support for dual-channel memory architecture and Intel Extreme Memory Profile (XMP). The Pro B760M-C-CSM provides multiple connectivity options, including 2 x DisplayPort, 1 x VGA port, and 1 x HDMI port. It offers expansion slots such as 1 x PCIe 4.0/3.0 x16 and 2 x PCIe 3.0 x1 for additional devices. Storage options include 2 x M.2 slots and 4 x SATA 6Gb/s ports, and it also features 1 x Intel 1Gb Ethernet port for network connectivity. The motherboard offers various USB ports, audio support with a Realtek 7.1 Surround Sound High Definition Audio CODEC, and comes with ASUS Q-Design features for easy installation and maintenance. It is designed with business-focused features like ASUS Self Recovering BIOS, ASUS Event Log, and 24/7 reliability. The ASUS PRO B760M-C-CSM is a reliable and feature-rich motherboard suitable for business users in need of a compact form factor.
