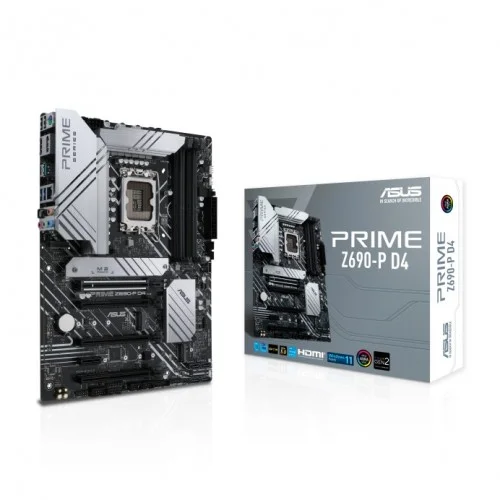

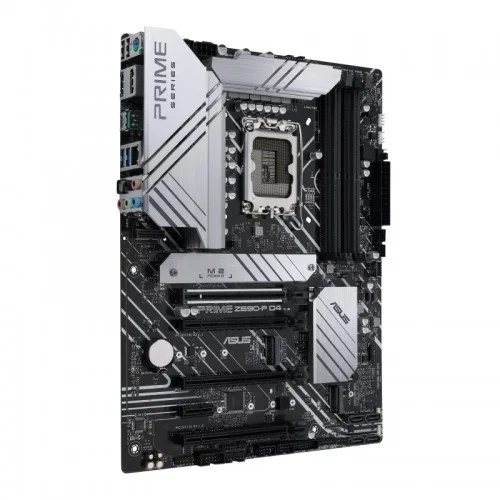

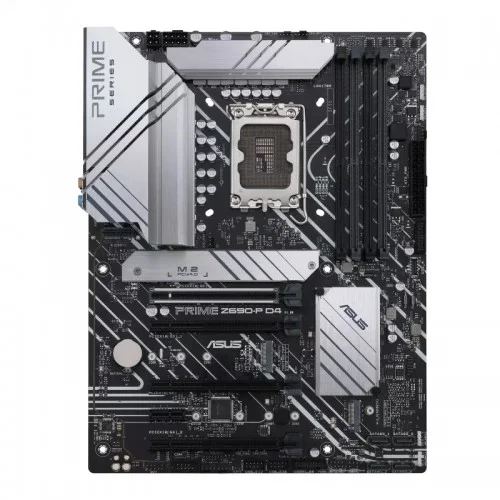

Asus Prime Z690-P D4 12th Gen ATX Motherboard
Save: 1380৳ (5%)
Discontinued
Asus Prime Z690-P D4 12th Gen ATX Motherboard
- Stock: Discontinued
- Model: PRIME Z690-P D4
- Product id: 23712
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Intel LGA 1700 socket: Ready for 12th Gen Intel processors
- 14+1 DrMOS, 8+4 pin ProCool connector
- Large VRM heatsinks, M.2 heatsink
- Supports DDR4, PCIe 5.0, 2.5 Gb Ethernet
Quick Compare
| Product Details | ||||
| Product | Asus Prime Z690-P D4 12th Gen ATX Motherboard | MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard | Gigabyte B650 EAGLE AX ATX AM5 Motherboard | GIGABYTE B760 AORUS ELITE AX 13TH GEN ATX MOTHERBOARD |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | PRIME Z690-P D4 | MAG B760M MORTAR WIFI II | B650 EAGLE AX | B760 AORUS ELITE AX |
| Brand | ASUS | MSI | GIGABYTE | GIGABYTE |
| Availability | Discontinued | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 1 reviews. |
Based on 0 reviews. |
| Summary | Specification Basic Information Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Chipset Z690 BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Form Factor ATX 30.5cm x 23.4cm Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playbackAudio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers Expansion Slots PCI Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s)Intel Z690 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot M.2 Socket Supports 3 x M.2 slots Memory Type DDR4 Slots 4 x DIMM Supported Memory DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II Maximum Memory 128GB Graphics Graphics 1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) Connector & Ports HDMI 1 x HDMI port Display Port (s) 1 x DisplayPort USB (s) Rear USB:Total 6 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A)Front USB:Total 9 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports LAN Port (s) 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wireless Communication module V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately. Supported Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Audio 5 x Audio jacks Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connectorStorage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin) Warranty Information Manufacturing Warranty 3 years Others Special Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 headers Bundled Software ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Asus Prime Z690-P D4 12th Gen ATX Motherboard The Asus Prime Z690-P D4 Motherboard features Intel LGA1700 socket Ready for 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. It comes with an enhanced power solution. 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes, and durable capacitors for stable power delivery. It features Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4. The Asus OptiMem II, careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking The Asus Prime Z690-P D4 is supported with DDR4 memory, PCIe 5.0, 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support, 4 PCIe 4.0 M.2. The Asus Prime Z690-P D4 offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate, and PCB cover. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The Asus Prime Z690-P D4 comes with 3 years of warranty. .. | MSI MAG B760M MORTAR WIFI II DDR5 mATX MotherboardThe MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard is a high-performance, feature-rich platform designed for gamers, creators, and PC enthusiasts who demand speed, stability, and future-proof technology in a compact micro-ATX form factor. Built on the Intel B760 chipset, this motherboard supports Intel’s 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors via the LGA 1700 socket, ensuring a wide range of CPU compatibility. With support for DDR5 memory up to 7800+ MHz (OC) and dual-channel architecture, the board delivers cutting-edge memory performance ideal for intensive multitasking, gaming, and content creation. The motherboard features four DIMM slots, supporting up to 192GB of non-ECC un-buffered memory with Intel XMP profiles for easy overclocking. In terms of connectivity, the MAG B760M MORTAR WIFI II shines with three M.2 slots supporting PCIe 4.0, four SATA 6Gb/s ports, and full support for RAID 0/1/5/10 configurations. For expansion, it includes two PCIe slots, with PCI-E1 supporting Gen 5 x16, ideal for the latest GPUs. The motherboard also features HDMI 2.1 and DisplayPort 1.4 outputs, offering resolutions up to 4K@60Hz and 8K@60Hz, respectively. Onboard networking is robust, featuring a Realtek 2.5Gbps LAN port and Intel Wi-Fi 6E with Bluetooth 5.3, delivering fast, reliable wireless connectivity. The USB configuration is extensive, including USB 3.2 Gen 2x2 Type-C, multiple USB 3.2 Gen1/Gen2, and USB 2.0 ports on both the front and rear panels. Enhanced with EZ Debug LEDs, rich RGB support, and premium 7.1-channel audio via Realtek ALC897, the MSI MAG B760M MORTAR WIFI II is an exceptional choice for a powerful and compact next-gen PC build. Backed by a 3-year warranty, it offers reliability and performance in a sleek mATX package... | Gigabyte B650 EAGLE AX ATX AM5 MotherboardThe Gigabyte B650 EAGLE AX ATX AM5 motherboard offers a robust foundation for high-performance computing systems, designed to accommodate the latest AMD Ryzen™ processors with Socket AM5 compatibility. Engineered with the advanced AMD B650 chipset, this motherboard delivers exceptional performance, reliability, and expandability for gaming, content creation, and productivity tasks. Featuring an integrated graphics processor with versatile connectivity options, including DisplayPort 1.4 and HDMI 2.1 ports, users can enjoy stunning visuals at resolutions up to 3840x2160@144Hz and 4096x2160@60Hz respectively, ensuring a seamless visual experience for gaming and multimedia content. The motherboard supports DDR5 memory modules with speeds up to 7600MHz (OC), providing ample bandwidth for multitasking and demanding applications. With four DDR5 DIMM sockets supporting up to 192GB of system memory, users can enjoy enhanced responsiveness and performance. For expansion and connectivity, the motherboard offers multiple PCIe slots, including a PCIe 4.0 x16 slot for graphics cards or NVMe SSDs, and PCIe 3.0 slots for additional peripherals. A comprehensive array of USB ports, including USB 3.2 Gen 2 Type-A and Type-C ports, ensures high-speed data transfer and device compatibility. Storage options are abundant with M.2 connectors supporting PCIe 5.0/4.0 SSDs and SATA 6Gb/s connectors with RAID support for both NVMe and SATA storage devices, providing flexible storage configurations and fast data access. Networking capabilities are enhanced with Realtek® GbE LAN for reliable wired connections, and the inclusion of a Realtek® Wi-Fi 6E module with Bluetooth 5.3 support for seamless wireless connectivity. With a range of internal I/O ports, including RGB LED headers and multiple fan connectors, users can customize and optimize their system's aesthetics and cooling performance. Backed by a 3-year warranty and bundled with essential software utilities such as Norton® Internet Security, the Gigabyte B650 EAGLE AX motherboard offers a feature-rich platform for building high-performance desktop systems with uncompromising reliability and versatility. Whether for gaming enthusiasts or content creators, this motherboard delivers the performance and flexibility needed to excel in any computing task.Features:AMD Socket AM5 Compatibility: Designed to support both the AMD Ryzen™ 7000 Series and AMD Ryzen™ 8000 Series processors, providing users with a wide range of CPU options to suit their performance needs.AMD B650 Chipset: The motherboard utilizes the AMD B650 chipset, offering a balance of performance, connectivity, and affordability for mainstream users.DDR5 Memory Support: With support for DDR5 memory modules, users can take advantage of high-speed memory configurations up to 7600MHz (OC), enhancing system responsiveness and multitasking capabilities.PCIe 4.0 and PCIe 3.0 Expansion Slots: Featuring multiple PCIe slots, including a PCIe 4.0 x16 slot integrated in the CPU, users can install graphics cards or NVMe SSDs for high-speed data transfer and gaming performance.Comprehensive Connectivity: The motherboard provides a diverse array of USB ports, including USB 3.2 Gen 2 Type-A and Type-C ports for fast data transfer and device compatibility. Additionally, Realtek® GbE LAN ensures reliable wired networking connectivity.Integrated Graphics Processor: Equipped with DisplayPort 1.4 and HDMI 2.1 ports, users can enjoy stunning visuals at resolutions up to 3840x2160@144Hz and 4096x2160@60Hz respectively, ideal for gaming and multimedia applications.M.2 Connectors and SATA Ports: Supporting various M.2 SSD configurations and SATA 6Gb/s connectors with RAID support, users can create flexible storage setups for rapid data access and system responsiveness.Realtek® Wi-Fi 6E Module: With support for Wi-Fi 6E and Bluetooth 5.3, users can enjoy high-speed wireless connectivity and seamless device pairing for a modern computing experience.RGB Lighting and Fan Headers: Featuring multiple addressable RGB Gen2 LED strip headers and fan headers, users can customize their system's aesthetics and optimize cooling performance.Advanced BIOS Features: Utilizing a licensed AMI UEFI BIOS, the motherboard offers a user-friendly interface with advanced overclocking options and system management tools for fine-tuning performance.Bundled Software: The motherboard comes bundled with Norton® Internet Security (OEM Version) and LAN Bandwidth Management Software, providing users with essential security and network optimization tools.Warranty: Backed by a 3-year warranty, users can have peace of mind knowing their investment is protected against defects and malfunctions.Overall, the Gigabyte B650 EAGLE AX ATX AM5 motherboard offers a feature-rich platform for building high-performance desktop systems tailored to the needs of modern computing enthusiasts... | Specification rts 1 X USB Type-C® Port, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 2 Type-A Port (Red) 4 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 2 X SMA Antenna Connectors (2T2R) 1 X HDMI Port 1 X DisplayPort 1 X RJ-45 Port 1 X Optical S/PDIF Out Connector 2 X Audio Jacks WiFi WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands DIMENSIONS ATX Form Factor; 30.5cm X 24.4cm Form Factor ATX Form Factor BIOS 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 HDMI 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3 Warranty 3 Years GIGABYTE B760 AORUS ELITE AX 13TH GEN ATX MOTHERBOARD The Gigabyte B760 AORUS ELITE AX 13th Gen ATX Motherboard is a high-performance motherboard designed to support the 13th and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors. With its LGA1700 socket and Intel® B760 Express Chipset, this motherboard provides excellent compatibility and powerful performance for demanding tasks and gaming.The motherboard supports DDR5 memory modules with speeds up to 7600MHz (O.C.), offering fast and efficient data transfer for smooth multitasking and gaming experiences. With four DDR5 DIMM sockets, it can accommodate up to 192GB of system memory in a dual-channel configuration. It supports both ECC and non-ECC memory modules and offers support for Extreme Memory Profile (XMP) for easy overclocking.Integrated Intel® HD Graphics with HDMI 2.0 and DisplayPort 1.2 support provide crisp and high-resolution visuals. The motherboard also features a Realtek® Audio CODEC that supports high-definition audio output, offering immersive sound quality for gaming and multimedia applications.For networking, the motherboard includes a Realtek® 2.5GbE LAN chip, providing fast and reliable Ethernet connectivity. Additionally, it offers wireless communication options with either an Intel® Wi-Fi 6E AX211 or Realtek® Wi-Fi 6E RTL8852CE module, supporting various Wi-Fi standards and delivering high-speed wireless connections.The motherboard provides multiple expansion slots, including a PCI Express x16 slot running at x16 for optimal graphics card performance. It also offers several storage options, including M.2 connectors for high-speed SSD support and SATA 6Gb/s connectors for traditional storage devices. RAID support is available for SATA storage devices.A variety of USB ports, including USB Type-C® and USB 3.2 Gen 2, provide fast data transfer and connectivity options for peripherals. The motherboard also includes internal headers for addressable LED strips and RGB LED strips, allowing users to customize their system's lighting effects.With a comprehensive set of internal I/O connectors and back panel connectors, the motherboard offers versatile connectivity options for various devices and peripherals. It features an iTE® I/O Controller Chip for efficient hardware monitoring, including voltage, temperature, and fan speed detection.Additional features of this motherboard include GIGABYTE Control Center (GCC) support for convenient system management, Q-Flash and Q-Flash Plus for easy BIOS updates, and bundled software such as Norton® Internet Security for added security.The Gigabyte B760 AORUS ELITE AX 13th Gen ATX Motherboard follows the ATX form factor, ensuring compatibility with a wide range of PC cases. Its dimensions of 30.5cm x 24.4cm make it suitable for standard-sized ATX cases.Overall, the Gigabyte B760 AORUS ELITE AX 13th Gen ATX Motherboard offers a feature-rich and high-performance platform for building a powerful desktop PC that can handle demanding applications, gaming, and multimedia tasks... |
