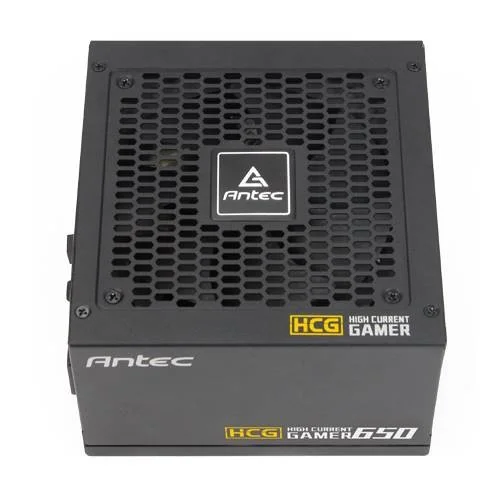

Antec High Current Gamer Gold Series 650 WATT Full Modular Power Supply
Antec High Current Gamer Gold Series 650 WATT Full Modular Power Supply
- Stock: In Stock
- Model: Model-7034
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Frequency Range: 50Hz-60Hz
- Input Current: 9A-4.5A
- Up to 92% efficient
- Input Voltage: 100-240 VAC ±10%
Key Features | |
Efficiency (Approx.) | 80+ Gold |
General information | |
MODULAR | Full |
WATTAGE | 500 to 799Watt |
Antec High Current Gamer Gold Series 650 WATT Full Modular Power Supply
Antec High Current Gamer Gold Series 650W Supply offers unparalleled stability and 80 PLUS Gold-certified efficiency with Fully Modular. The High-performance Japanese capacitors ensure regulation and the tightest DC stability for reliability that you and your system can count on. This power supply Guaranteed 650W of Continuous Power from Antec with 100% Modular that Improves airflow and reduces clutter. This power supply is Up to 92% efficient, to reduce your electricity bill and PhaseWave Design that is server class full bridge LLC design with a synchronous rectification based on a DC-DC topology. In this power supply, it has 100-240 VAC ±10% Input Voltage, 9A-4.5A Input Current, 50Hz-60Hz Input Frequency Range with Active PFC (>0.9 typical) and 100-500ms Power Good Signal. This HCG power supply provides OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO protection ancTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC/KR Regulatory. In this power supply also added 120mm FDB Fan, 28(18+10) pin MBU socket for possible future MBU connectors. ATX12V 2.4 Engineered according to the newest PSU guideline and compatible with the latest CPU generation and also this Compact size 140mm depth power supply is the best choice for compact ATX chassis. This HCG 650W power supply provides 10 years of warranty.Specification:
Key Features | ||
Continuous Power | Guaranteed 650W of Continuous Power from Antec | |
Efficiency (Approx.) | 92% Typically | |
Certification | 80 Plus Gold | |
Fan Size | 120mm FDB Fan | |
Input | ||
Voltage | 100-240 VAC ±10% | |
Frequency Range | 50Hz-60Hz | |
Current | 9A-4.5A | |
Output | ||
Modular Type | Fully Modular | |
Total Power | 650W | |
Connector | ||
Main Power | 1 x MB 24(20+4) Pin | |
CPU | 1 x 8(4+4) Pin EPS 12V | |
PCI-E | 4 x 8(6+2) Pin PCI-E | |
SATA | 8 x SATA | |
Molex | 3 x Molex | |
Floppy | 1 x FDD | |
Warranty Information | ||
Manufacturing Warranty | 10 Years Warranty |
Quick Compare
Product Details | ||||
Product | Antec High Current Gamer Gold Series 650 WATT Full Modular Power Supply | 1ST Player STEAMPUNK PS-750SP GOLD Full-Modular Power supply | Thermaltake Toughpower GF1 650W 80 Plus Gold Fully Modular Power Supply | Thermaltake Toughpower GF2 ARGB 650W Gold Full Modular TT Premium Edition Power Supply Unit |
Image | ||||
Price | 10,000৳ | | | |
Model | Model-7034 | STEAMPUNK PS-750SP | Toughpower GF1 650W | Toughpower GF2 ARGB 650W Gold |
Brand | ANTEC | 1stplayer | THEARMALTAKE | |
Availability | In Stock | In Stock | In Stock | In Stock |
Rating | Based on 0 reviews. | Based on 0 reviews. | Based on 0 reviews. | Based on 0 reviews. |
Summary | Antec High Current Gamer Gold Series 650 WATT Full Modular Power Supply Antec High Current Gamer Gold Series 650W Supply offers unparalleled stability and 80 PLUS Gold-certified efficiency with Fully Modular. The High-performance Japanese capacitors ensure regulation and the tightest DC stability for reliability that you and your system can count on. This power supply Guaranteed 650W of Continuous Power from Antec with 100% Modular that Improves airflow and reduces clutter. This power supply is Up to 92% efficient, to reduce your electricity bill and PhaseWave Design that is server class full bridge LLC design with a synchronous rectification based on a DC-DC topology. In this power supply, it has 100-240 VAC ±10% Input Voltage, 9A-4.5A Input Current, 50Hz-60Hz Input Frequency Range with Active PFC (>0.9 typical) and 100-500ms Power Good Signal. This HCG power supply provides OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO protection ancTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC/KR Regulatory. In this power supply also added 120mm FDB Fan, 28(18+10) pin MBU socket for possible future MBU connectors. ATX12V 2.4 Engineered according to the newest PSU guideline and compatible with the latest CPU generation and also this Compact size 140mm depth power supply is the best choice for compact ATX chassis. This HCG 650W power supply provides 10 years of warranty. Specification:Key FeaturesContinuous Power Guaranteed 650W of Continuous Power from AntecEfficiency (Approx.) 92% TypicallyCertification 80 Plus GoldFan Size 120mm FDB FanInputVoltage 100-240 VAC ±10%Frequency Range 50Hz-60HzCurrent 9A-4.5AOutputModular Type Fully ModularTotal Power 650WConnectorMain Power 1 x MB 24(20+4) PinCPU 1 x 8(4+4) Pin EPS 12VPCI-E 4 x 8(6+2) Pin PCI-ESATA 8 x SATAMolex 3 x MolexFloppy 1 x FDDWarranty InformationManufacturing Warranty 10 Years Warranty.. | 1ST Player STEAMPUNK PS-750SP GOLD Full-Modular Power supply1ST Player STEAMPUNK PS-750SP GOLD Full-Modular Power Supply is a robust and efficient solution for powering your gaming rig or high-performance PC setup. With its sleek design and gold color scheme, it adds a touch of style to your system while delivering reliable and stable power. Measuring at a compact 16015086 mm, this power supply fits comfortably into most PC cases, ensuring compatibility and ease of installation. Its full-modular design allows you to customize your cable management, minimizing clutter and optimizing airflow within your system. Certified with an 80 PLUS GOLD efficiency rating, the PS-750SP ensures high energy efficiency, with up to 92.4% efficiency at typical loading. This not only reduces power consumption but also lowers heat output, contributing to a cooler and quieter operation. With output capacities ranging from 650W to 850W, this power supply provides ample power to support demanding components such as high-end graphics cards and overclocked processors. Its active power factor correction (PFC) helps maintain stable voltage levels across varying loads, enhancing system stability and reliability. Equipped with a 140mm hydraulic bearing fan, the PS-750SP ensures efficient cooling while keeping noise levels to a minimum. Its comprehensive protection features, including under-voltage protection (UVP), over-voltage protection (OVP), over-power protection (OPP), short-circuit protection (SCP), and lightning protection, safeguard your components from electrical hazards. The PS-750SP operates within a wide input voltage range of 100-240VAC, making it suitable for use in various regions around the world. It boasts a long 7-year warranty, providing peace of mind and assurance of its quality and durability. Built with a circuit structure featuring LLC and DC-DC conversion, this power supply delivers clean and stable power to your system, ensuring optimal performance even under heavy loads. It meets stringent regulatory standards such as CE, FCC, C-Tick, ROHS, CCC, cTUVus, IEC, and EAC, attesting to its reliability and safety. Overall, the 1ST Player STEAMPUNK PS-750SP GOLD Full-Modular Power Supply combines high efficiency, robust performance, and sleek design, making it an excellent choice for powering your gaming or enthusiast PC build.Features80 PLUS GOLD Certification: Ensures high energy efficiency, reducing power consumption and heat generation while saving on electricity bills.Full-Modular Design: Allows for easy customization of cable management, minimizing clutter and optimizing airflow within the PC case.Compact Dimensions: Measuring at 16015086 mm, it fits well into most PC cases, ensuring compatibility and ease of installation.Output Capacity Options: Available in 650W, 750W, and 850W variants, catering to different system requirements and power demands.Active PFC (Power Factor Correction): Maintains stable voltage levels across varying loads, enhancing system stability and reliability.140mm Hydraulic Bearing Fan: Provides efficient cooling while keeping noise levels low, ensuring a quieter computing experience.Comprehensive Protections: Includes UVP (Under-Voltage Protection), OVP (Over-Voltage Protection), OPP (Over-Power Protection), SCP (Short-Circuit Protection), and Lightning Protection, safeguarding components from electrical hazards.Wide Input Voltage Range: Operates within a range of 100-240VAC, suitable for use in various regions around the world.Long Warranty Period: Backed by a 7-year warranty, providing peace of mind and assurance of quality and durability.LLC + DC-DC Circuit Structure: Delivers clean and stable power to the system, ensuring optimal performance even under heavy loads.Regulatory Compliance: Meets standards such as CE, FCC, C-Tick, ROHS, CCC, cTUVus, IEC, and EAC, attesting to its reliability and safety... | Thermaltake Toughpower GF1 650W 80 Plus Gold Fully Modular Power Supply The Thermaltake Toughpower GF1 650W 80 Plus Gold Fully Modular Power Supply is crafted by using cutting-edge technology and materials to become the fusion of aesthetics and performance. The series supports synchronization with compatible RGB motherboards from ASUS, GIGABYTE, MSI, and ASRock for countless illumination possibilities. With the most stable but silent operation, the Toughpower GF1 Gold meets and even exceeds the demanding specification of the overclocker, gamers, or enthusiastic PC user. Illuminate with Twisting Blade Shining from Perfect Circles The built-in Riing Duo 14 RGB Fan features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors. Zero Cable Platform & Ultra Quiet Smart Zero Fan Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality. And also the Smart Zero Fan starts to operate when the power supply working load goes over 40%, the undesired noise will be minimized. In this Power Supply, the user-friendly switch is set on the back panel for those who prefer the fan to spin constantly. Ripple Noise & Extremely Strict Voltage All ripples are lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure excellent performance and a reliable operation. The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance. This new 650W power supply comes with high-quality 105 °C (221 ° F) Japanese capacitors to help improve durability and offer impressive stability. Fully Modular Low-profile Flat Black Cables The series offers cable selection for users while powering the system at an advantageous voltage. The low-profile flat black cables make cable management easier, reduce clutter and increase airflow inside the chassis.Powerful single +12V rail helps ensure a stable and reliable supply to other PC components. This Power Supply saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving. The Latest Thermaltake Toughpower GF1 comes with 10 years warranty. SpecificationsKey FeaturesEfficiency (Approx.) Meet 80 PLUS Gold at 115Vac input.Certification 80 PLUS GoldFan Size 14cm hydraulic bearing fanInputVoltage 100V – 240V~Frequency Range 50Hz - 60HzCurrent 10AOutputModular Type Full ModularTotal Power 650 WPeak Power 780 WAC Input AC input voltage: 100 - 240 V, AC Input Frequency: 50/60 HzConnectorMain Power 24 pinCPU CPU power connector (4+4 pin)PCI-E PCI-E 6 + 2pin x 4SATA Number of SATA power connectors 9 SATA power cable length 150, 500mmMolex Peripheral (Molex) power connectors (4-pin) 4Floppy Floppy drive power connector x 1Warranty InformationManufacturing Warranty 10 Years .. | Thermaltake Toughpower GF2 ARGB 650W Gold Full Modular TT Premium Edition Power Supply UnitIntroducing the cutting-edge 650W Power Supply, a pinnacle of performance and reliability for your computing needs. Designed with meticulous attention to detail, this power supply boasts a 14cm hydraulic bearing fan along with a 14cm FDB fan to ensure efficient cooling, maintaining optimal temperatures during intensive tasks. With a power output of 650W and a peak power of 780W, this unit delivers robust performance to meet the demands of modern systems.The power supply is 80 PLUS Gold certified, achieving high efficiency levels at 115Vac input. Active PFC (Power Factor Correction) enhances power efficiency, contributing to energy savings. Its fully modular design allows for easy cable management, optimizing airflow and ensuring a clean and organized system build.Safety is a top priority with CE, cTUVus, TÜV, FCC, BSMI, EAC, S-Mark, and C-TICK certifications. The unit offers reliability with a Hold Up Time exceeding 16msec at 100% full load and a remarkable MTBF of 100,000 hours minimum. The 10-year burn warranty, complemented by the BurnCase, underscores the manufacturer's confidence in the product's durability.Operate with peace of mind in temperatures ranging from 0°C to +40°C, and rest assured with storage capabilities spanning from -40°C to +70°C. With PCI-E 6+2PIN connectors, this power supply is tailored to support high-performance graphics cards. Elevate your computing experience with the 650W Power Supply – a testament to power, efficiency, and longevity.Features OF Thermaltake Toughpower GF2 ARGB 650W Gold Power Supply Power Output: The power supply delivers a robust 650W of continuous power and can handle peak loads up to 780W, ensuring stable performance for high-demand computing tasks.Efficiency Certification: Achieves 80 PLUS Gold certification, guaranteeing high energy efficiency at 115Vac input, reducing power consumption and operating costs.Cooling System: Features a 14cm hydraulic bearing fan and a 14cm FDB fan, providing efficient and reliable cooling to maintain optimal operating temperatures during extended use.Hold Up Time: Boasts a hold-up time exceeding 16msec at 100% full load, ensuring a stable power supply even under demanding conditions.Reliability: With a minimum Mean Time Between Failures (MTBF) of 100,000 hours, this power supply offers long-lasting reliability for uninterrupted operation.Power Good Signal: The power supply provides a power good signal within the range of 100-500 msec, indicating proper power delivery to connected components.Safety Approvals: Holds multiple safety certifications, including CE, cTUVus, TÜV, FCC, BSMI, EAC, S-Mark, and C-TICK, ensuring compliance with international safety standards.Operating Environment: Operates in a wide temperature range from 0°C to +40°C, accommodating various system configurations and environmental conditions.Storage Flexibility: With storage humidity ranging from 20% to 95% (non-condensing) and storage temperature spanning from -40°C to +70°C, this power supply adapts to diverse storage conditions.PCI-E Connectors: Equipped with four PCI-E 6+2PIN connectors, catering to high-performance graphics cards and ensuring compatibility with modern gaming setups.Active Power Factor Correction (PFC): Features Active PFC for enhanced power efficiency, correcting the power factor and reducing wasted energy.Modular Design: The power supply is fully modular, allowing for convenient cable management and customization, optimizing airflow and contributing to a tidy system build.Voltage and Frequency Range: Compatible with a wide voltage range of 100V – 240V and a frequency range of 50Hz - 60Hz, making it suitable for use in various regions.Physical Specifications: The unit is sleek in black, with dimensions of 150mm (W) x 86mm (H) x 160mm (D) and a weight of 3.0kg, providing a compact and lightweight solution.Long Warranty Period: Backed by a 10-year burn warranty, including a BurnCase, underscoring the manufacturer's confidence in the product's durability and reliability... |
