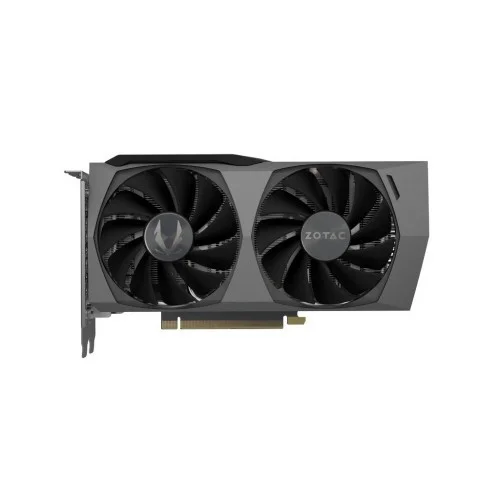

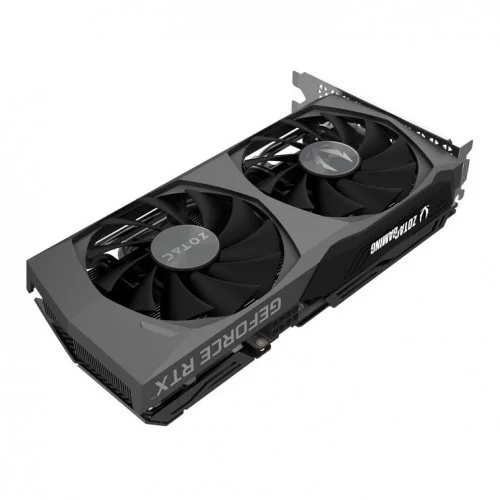

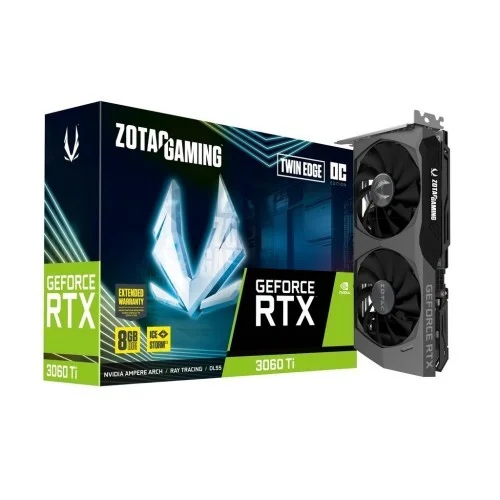

ZOTAC GAMING GeForce RTX 3060 Ti Twin Edge OC LHR 8GB Graphics Card

ZOTAC GAMING GeForce RTX 3060 Ti Twin Edge OC LHR 8GB Graphics Card

Get Amplified with the ZOTAC GAMING GeForce RTX 30 Series based on the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed GDDR6 memory, the ZOTAC GAMINGGeForce RTX 3060 Ti Twin Edge OC LHR gives rise to amplified gaming with high fidelity live To Game with the all-new ZOTAC GeForce RTX 3060 Ti Twin Edge OC LHR Series based on the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast memory, the new ZOTAC GAMING graphics cards give rise to amplified gaming with ultra graphics fidelity. The design underlines durability with a metal backplate that wraps around to increase the overall card rigidity with a simple and intuitive minimal interface, the ZOTAC GAMING FireStorm Utility provides simple tools to transform fine-tuning your GPU into a simple task. It comes with LHR 25 MH/s ETH hash rate (est.). Monitor your GPU, control the fan speed, and many more options. It has 03 years warranty (2 more Years Warranty available if registered online within 28 days of purchase). Total warranty : 3+ 2 ( after reg.) = Total 5 years.

ZOTAC GAMING GeForce RTX 3060 Ti Twin Edge OC LHR 8GB Review

We once again review a GeForce RTX 3060 Ti Twin Edge OC LHR that's a mouth full; meet the ZOTAC GAMING GeForce RTX 3060 Ti Twin Edge OC 8GB, it's the value proposition from ZOTAC with a duo of spinners. Targeted at GeForce RTX 2080 SUPER perf levels in a small form factor, will the ZOTAC card hold up? Armed with a shader core count of 4864 units, this card is paired with 8 GB of GDDR6 graphics memory running 14 Gbps. Much has been said, rumored, and spoken about this card, as with that sexy shading core count, it is bound to be a bit of a beast in that sub-400 EUR/USD price range. This product will sit at GeForce RTX 2080 (SUPER) performance levels and, in due time, will be its replacement.  September 2020, NVIDIA declared its initial Ampere graphics cards in its inaugural launch wave. A week before announcements, specifications of the GeForce RTX 3060 Ti Twin Edge OC LHR, 3070, 3080, and 3090 took a twist; the shader core count mysteriously doubled from what everybody expected. The GPUs are fabricated on an 8nm node derived from Samsung. This process further develops Samsung's 10nm process; no EUV is applied in production just yet. The first wave of announcements would see the GeForce RTX 3080 and 3090 being released first, and, as a bit of a surprise, the GeForce RTX 3060 Ti and 3070 would be arriving in roughly the same timeframe as well. The initial launch of Ampere for consumers entails the GeForce RTX 3060 Ti 8GB, 3070 8GB GDDR6, RTX 3080 10GB GDDR6X, the 24GB GDDR6X based premium flagship, the mighty mo, the GeForce RTX 3090. The lineup nearly doubles ray-tracing performance with Gen2 ray-tracing cores and 3rd iteration Tensor cores. These cards will all be PCIe 4.0 interface compatible and offer HDMI 2.1 and DisplayPort 1.4a, but most importantly is that exorbitant Shader processor count (referred to as CUDA cores by NVIDIA), passing the 10K marker for the flagship product, nobody... not even us, saw that one coming. With just over half the shader processor count seen from the flagship product, we now meet the NVIDIA GA104 GPU again; initially, it was to be used solely in the GeForce RTX 3070 graphics cards, but when rumors emerged that team red would offer a good product sies, all of the sudden the word was out a GeForce RTX 3060 Ti Twin Edge OC LHR. And despite being a lower segmented card, it still holds a sizable GPU die; the 3070's GA104 GPU is firing up over 17 billion transistors with 4864 active shader cores. To compare, a GeForce RTX 3080 is listed at 8,704 Shader cores, and the GeForce RTX 3090 (GA102) has 10496 Shader cores. In this review, we'll check out the Founder edition, aka FE GeForce RTX 3060 Ti Twin Edge OC LHR, paired with 8GB of GDDR6 graphics memory. A product that runs a boost clock of 1665 MHz and enough power under the hood that makes you smirk. ZOTAC is back in da house with their minified version of the GeForce RTX 3060 Ti Twin Edge OC LHR, the Twin Edge OC. The product is a few tenners more expensive over the FE but in return, you receive a compact version of the series. In order to stay so close to that founder price, this product was made with that budget in mind. A simplified looking product, performing at that reference level founder edition as well. Twin Edge refers towards the cooler with its duo of spinners.  The card is tailored with that NVIDIA GA104 GPU, this time the revision 200 GPU SKU; it a proper shader core count as 4864 stream processors are activated and gets paired with 8GB GDDR6 graphics memory at 256-bit running at 14 Gbps. Based on fan stop the card is passive in idle and offering quite normalized acoustics when under load. The card has a single 8-pin power header and the card is rated by us at 224 Watt power draw at the peak; and 219 Watt as average. The factory boost clock frequency as standard as can be, set at 1695 MHz, alright. Let's check 'r out.

Specification

Video Memory Specifications
Type	GDDR6
Size	8GB
Resolution	Up to 7680x4320@60Hz
Core Clock	Boost: 1695 MHz
Memory Clock	14 Gbps
BUS Type	PCI Express4.0 16x
Memory Interface	256-bit
CUDA Cores	4864
Interface
Display Port	3 x DisplayPort 1.4a (up to 7680x4320@60Hz)
HDMI	HDMI 2.1* (up to 7680x4320@60Hz) *Ultra High Speed HDMI Cable is required to support 8K/60FPS or 4K/120FPS
HDCP	2.3
Power Specifications
Connectors	8-pin
Recommended PSU	650W
Consumption	200W
Display Option
Multi Display	Quad Display
Application Programming Interfaces
DirectX	12 Ultimate
OpenGL	4.6
Physical Specifications
Dimensions	222.1mm x 115.6mm x 38.2mm / 8.74" x 4.55" x 1.5"
Warranty
Manufacturing Warranty	03 years warranty (2 Years Warranty available if registered online within 28 days of Purchase) Total warranty :- 3+ 2 ( after reg.) = Total 5 years
