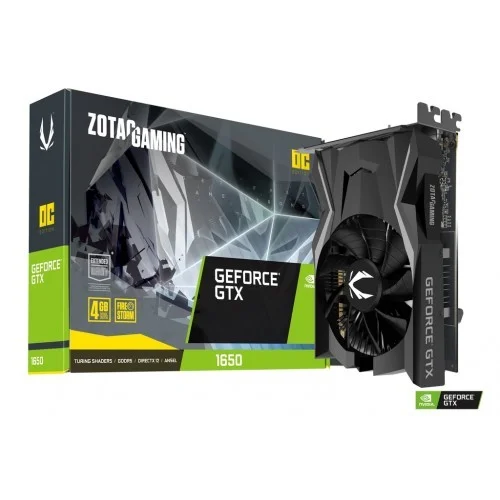

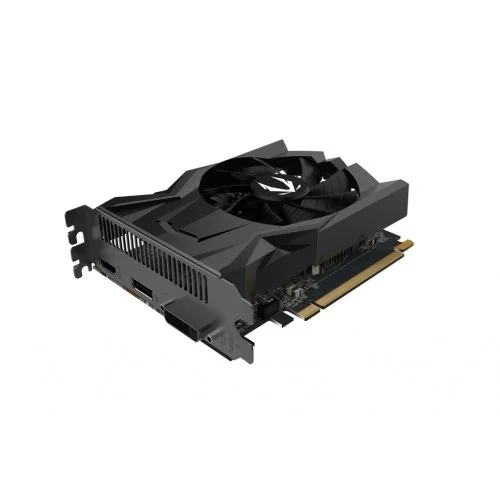

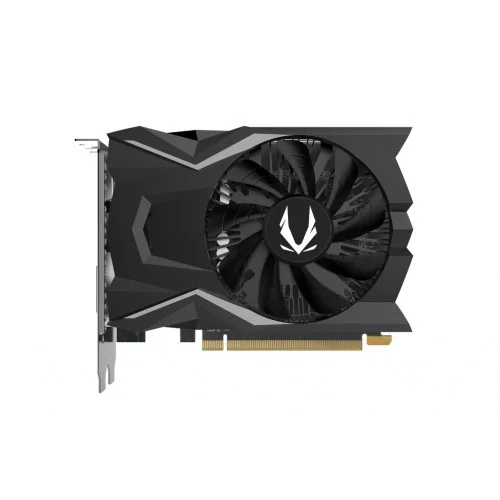

Zotac Gaming GeForce GTX 1650 OC 4GB GDDR6 Graphics Card

The Zotac GTX 1650 OC Series Is Powered By The NVIDIA Turing™ Architecture, Bringing Incredible Performance To The Latest Games. Get Game Ready With GTX. GEFORCE EXPERIENCE Zotac GTX 1650 OC Essential Companion To Your GeForce Graphics Card. Capture And Share Videos, Screenshots, And Live Streams. Keep Your Drivers Up To Date And Optimize Your Games. GAME READY DRIVERS Get The Highest Levels Of Performance, And The Smoothest Experience Possible, From The Moment You Start Playing. SUPER COMPACT Small Powerhouse Design. No Need To Ask “Will It Fit?” VR READY Discover Next-Generation VR Performance, Low Latency, And Plug-And-Play Compatibility With Leading Headsets. LOW POWER EFFICIENCY Powered Only By The PCIe Bus* Means No Additional Power Supply Connection Needed. Less Wires, Less Clutter. Just Drop It In And Secure It Down For A Simple And Clean Install. ALL-NEW FIRESTORM Introducing The All-New ZOTAC GAMING FIRESTORM. Freshly Designed With A More Intuitive And Minimal Interface So You Can Get In And Out Quickly. Fine Tune Your ZOTAC GAMING Graphics Card With Enhanced Intelligence, Adjust The SPECTRA Lighting, Or Simply Monitor The Hardware Status With The New FIRESTORM Utility. OC SCANNER Getting More Out Of Your ZOTAC GAMING GeForce Graphics Cards Has Never Been Easier. With The All-New OC SCANNER Feature, We Take The Tedious Trial And Error And Guesswork Process Out Of The Equation And Drop It Into A Simple Button Press. Start The Process, Take A Short Break, And Come Back To A Recommendation That Is The Most Optimal Settings For Your Graphics Card.

Zotac Gaming GeForce GTX 1650 OC 4GB GDDR6 Review

When it comes to enthusiast grades Graphics solution, ZOTAC needs no introduction as they have been in business for some while now and have been producing a high end to budget segment graphics cards based on the Nvidia’s GPUs (Nvidia AIB Partner). Their other line of products includes storage drives, mini PCs. ZOTAC has a local presence in Pakistan through M/s PakDukaan who are their authorized distributor in this region. They have sent us for ZOTAC GeForce GTX 1660Ti, GTX 1660 and Zotac Gaming GeForce GTX 1650 Review. This content is based on ZOTAC GeForce GTX 1650 OC Edition graphics card, the last of the series. The Zotac GTX 1650 OC Review is based on TU117 chip using 12nm technology with a die size of 200mm² packing 4700M transistors. The Zotac GTX 1650 OC packs 896 CUDA Cores with a base clock of 1485MHz and the boost clock of 1695MHz. It features 4GB VRAM GDDR5 rated at 8 Gbps having a bus width of 128-bit using 128.1 GB/s bandwidth. The graphics card has 1x Display Port, 1x HDMI port and a DVI-D port. It features ZOTAC’s Icestorm 2.0 cooling solution using 1x 90mm fan and a specially designed aluminum heatsink mimicking sunflower, making direct contact with the GPU for effective heat dissipation till the endpoints. It is a small form factor design without any frills attached to it which is understandable. There is no backplate and the card draws power only from the PCIe slot of the motherboard (75W). We review the Zotac GTX 1650 OC Gaming, this incredibly small GeForce GTX 1650 has been fabbed to be a budget-friendly product, with an extremely small and compact size. We're talking less than 15cm here.  The single fan product is energy friendly as well, there's no need for even a power connector as it feeds from the 75 Watt PCIe power slot. These cards are fitted with 4GB GDDR5 memory based upon a 128-bit memory bus. While the clock frequencies of the GPU base and boost frequencies will vary a bit per board partner, the reference base clock speed is close to 1400 MHz. When the first rumors on the GeForce GTX (yes, with a G) surfaced, speculation was everywhere and we had doubts NVIDIA would actually release a new GTX while moving forward towards it's RTX branding. NVIDIA is now injecting Turing based GPUs into the mainstream called TU116 and this new GU117. To make it more affordable NVIDIA stripped away the RTX and DLSS features, that means there are no RT and Tensor cores in these products. It's a fall back towards the original shader design model. So to quickly recap; the 1650/1660 series is making use of the Turing architecture but will not have Raytracing and Tensor cores, this is why NVIDIA dropped the RTX suffix back to GTX. The GeForce GTX 1650 cards are to occupy a 149 to 179 USD price domain slash pricing level which coincidentally also is occupied by the AMD Polaris 20-based Radeon RX 570 series.

Specifications

Video Memory Specifications
Type	GDDR6
Size	4GB
Resolution	3840 X 2160
Core Clock	Boost: 1620 MHz
Memory Clock	12 Gbps
BUS Type	128-bit
Memory Interface	3.0 PCI Express
CUDA Cores	896

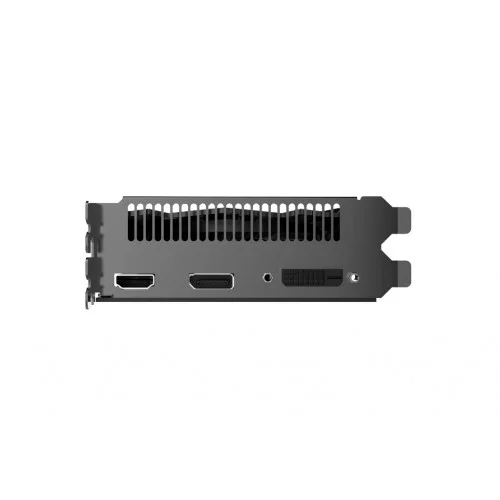

Interface
Display Port	DisplayPort 1.4 x1
HDMI	HDMI 2.0b x1
DVI	Dual Link DVI-D x1
HDCP	Yes
Power Specifications
Recommended PSU	350W
Consumption	75W
Display Option
Multi Display	Triple Display
Application Programming Interfaces
DirectX	12 API feature level 12_1
OpenGL	4.6
Physical Specifications

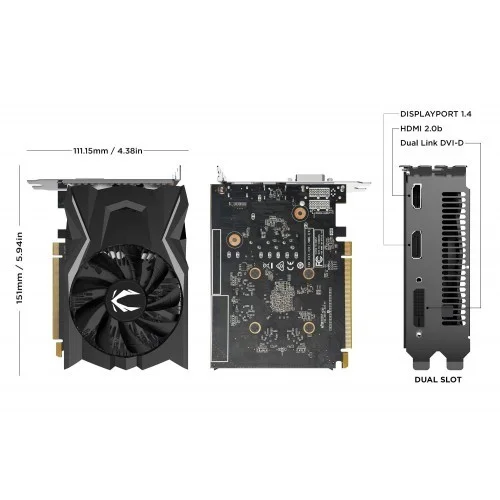

Dimensions	151mm x 111.15mm x 38.8mm
Warranty
Manufacturing Warranty	02 years warranty (3 Years Warranty available if registered online within 28 days of Purchase) Total warranty:- 2+ 3 ( after reg.) = Total 5 years
