Thermaltake Toughpower GF1 650W 80 Plus Gold Fully Modular Power Supply

Thermaltake Toughpower GF1 650W 80 Plus Gold Fully Modular Power Supply

The Thermaltake Toughpower GF1 650W 80 Plus Gold Fully Modular Power Supply is crafted by using cutting-edge technology and materials to become the fusion of aesthetics and performance. The series supports synchronization with compatible RGB motherboards from ASUS, GIGABYTE, MSI, and ASRock for countless illumination possibilities. With the most stable but silent operation, the Toughpower GF1 Gold meets and even exceeds the demanding specification of the overclocker, gamers, or enthusiastic PC user.

Illuminate with Twisting Blade Shining from Perfect Circles

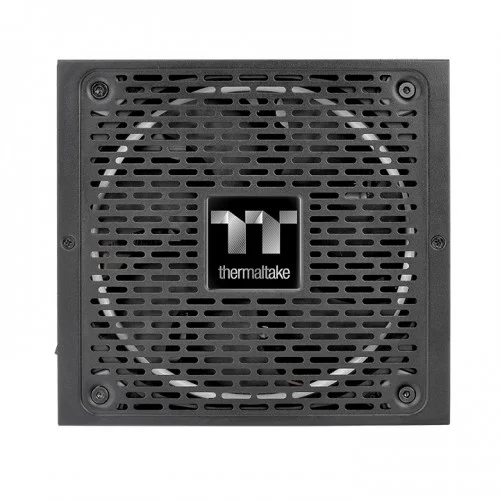

The built-in Riing Duo 14 RGB Fan features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors.

Zero Cable Platform & Ultra Quiet Smart Zero Fan

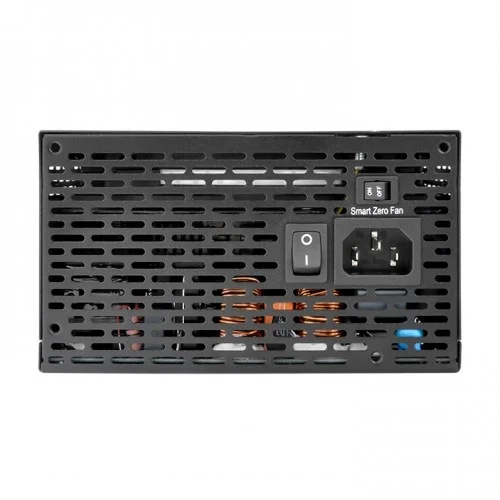

Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality. And also the Smart Zero Fan starts to operate when the power supply working load goes over 40%, the undesired noise will be minimized. In this Power Supply, the user-friendly switch is set on the back panel for those who prefer the fan to spin constantly.

Ripple Noise & Extremely Strict Voltage

All ripples are lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure excellent performance and a reliable operation. The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance. This new 650W power supply comes with high-quality 105 °C (221 ° F) Japanese capacitors to help improve durability and offer impressive stability.

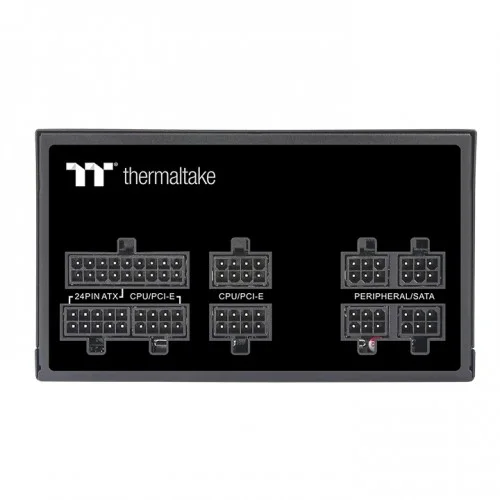

Fully Modular Low-profile Flat Black Cables

The series offers cable selection for users while powering the system at an advantageous voltage. The low-profile flat black cables make cable management easier, reduce clutter and increase airflow inside the chassis. Powerful single +12V rail helps ensure a stable and reliable supply to other PC components. This Power Supply saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

The Latest Thermaltake Toughpower GF1 comes with 10 years warranty.

Specifications

Key Features
Efficiency (Approx.)	Meet 80 PLUS Gold at 115Vac input.
Certification	80 PLUS Gold
Fan Size	14cm hydraulic bearing fan
Input
Voltage	100V – 240V~
Frequency Range	50Hz - 60Hz
Current	10A
Output
Modular Type	Full Modular
Total Power	650 W
Peak Power	780 W
AC Input	AC input voltage: 100 - 240 V, AC Input Frequency: 50/60 Hz
Connector
Main Power	24 pin
CPU	CPU power connector (4+4 pin)
PCI-E	PCI-E 6 + 2pin x 4
SATA	Number of SATA power connectors 9 SATA power cable length 150, 500mm
Molex	Peripheral (Molex) power connectors (4-pin) 4
Floppy	Floppy drive power connector x 1
Warranty Information
Manufacturing Warranty	10 Years
