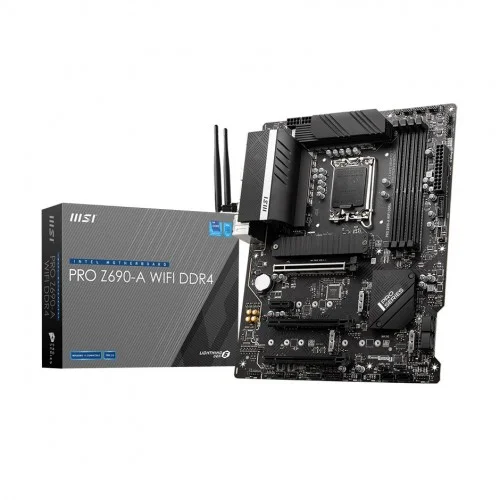

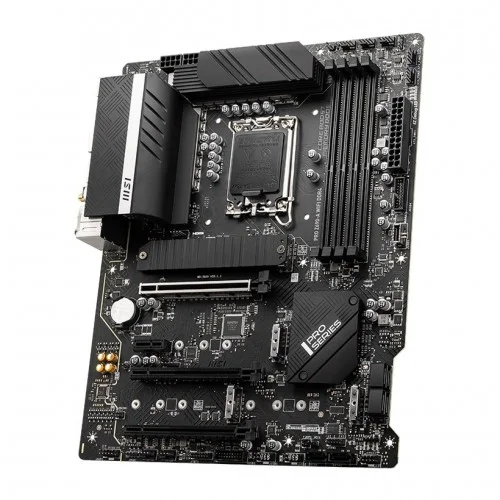

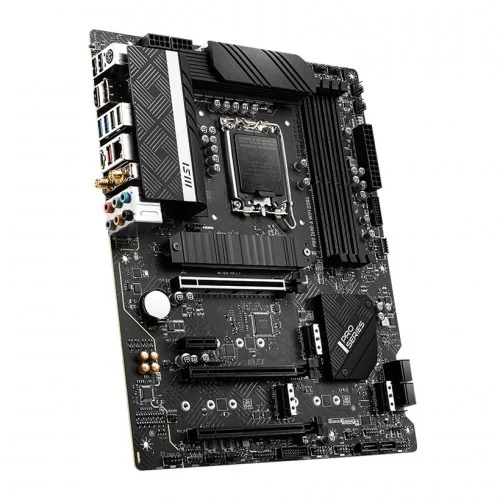

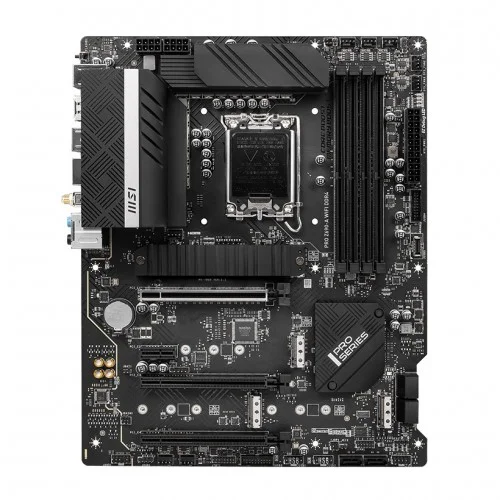

MSI PRO Z690-A WiFi DDR4 12th Gen ATX Motherboard
Save: 1500৳ (6%)
Out Of Stock
MSI PRO Z690-A WiFi DDR4 12th Gen ATX Motherboard
- Stock: Out Of Stock
- Model: PRO Z690-A WiFi DDR4
- Product id: 21779
25,500৳
27,000৳
Ex Tax: 25,500৳
- • Supports 12th Gen Intel Core, Pentium Gold & Celeron processors for LGA 1700 socket • Supports DDR4 Memory, up to 5200+(OC) MHz • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution • Intel Turbo USB 3.2 Gen 2
Quick Compare
| Product Details | ||||
| Product | MSI PRO Z690-A WiFi DDR4 12th Gen ATX Motherboard | GIGABYTE B760M AORUS ELITE AX 13TH GEN Micro ATX MOTHERBOARD | GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard | MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | PRO Z690-A WiFi DDR4 | B760M AORUS ELITE AX | B760M AORUS ELITE X AX | B860M GAMING PLUS WIFI |
| Brand | MSI | GIGABYTE | GIGABYTE | MSI |
| Availability | Out Of Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | MSI PRO Z690-A WiFi DDR4 12th Gen ATX Motherboard The MSI PRO Z690-A WiFi DDR4 Motherboard supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR4 Memory, up to 5200+(OC) MHz. It delivers a Lightning Fast Game experience with PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2. It features 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. It comes with an Enhanced Power Design. Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. The MSI PRO Z690-A WiFi DDR4 comes upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has an 8-layer PCB made of 2oz thickened copper and server-grade level material. The MSI PRO Z690-A WiFi DDR4 comes with 3 years of warranty. Specification Basic Information Supported CPU Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 Chipset Intel Z690 Chipset Form Factor ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Expansion Slots PCI 3x PCIe x16 slots PCI_E1 (from CPU) Supports up to PCIe 5.0 x16 PCI_E3 & PCI_E4 (from Z690 chipset) Supports up to PCIe 3.0 x4 & 3.0 x1 1x PCIe 3.0 x1 slot (from Z690 chipset) M.2 Socket 4x M.2 slots (Key M) Memory Type DDR4 Slots 4 x DIMM Supported Memory Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory 128GB Graphics Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology Connector & Ports HDMI 1x HDMI 2.1 Display Port (s) 1x DisplayPort 1.4 USB (s) Intel Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors) 4x USB 2.0 Type-A ports on the back panel USB Hub GL850G 4x USB 2.0 ports are available through the internal USB connectors LAN Port (s) 1x Intel I225-V 2.5Gbps LAN controller Wireless Communication module Intel Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 Supported Storage 6x SATA 6Gb/s ports (from Z690 chipset) 4x M.2 slots (Key M) M2_1 slot (from CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from Z690 chipset) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for M.2 slots that are from Z690 Chipset Support Intel Smart Response Technology for Intel Core processors Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices Audio 1x Front panel audio connector Internal I/O Ports 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3) TPM (Trusted Platform Module ) 1x TPM module connector Warranty Information Manufacturing Warranty 3 years .. | Key Features Motherboard Supported CPU LGA1700 Socket: Support For The 13th And 12th Generation Intel® Core™, Pentium® Gold And Celeron® Processors* L3 Cache Varies With The CPU Chipset Intel® B760 Express Chipset Memory Support For DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/S Memory Modules 4 X DDR DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules Graphics Integrated Graphics Processor-Intel® HD Graphics Support: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3. 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 Multi-GPU Support Support For AMD CrossFireX™ Technology Slots CPU: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. Chipset: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4) Support For AMD CrossFireX™ Technology Supported Storage CPU: 1 X M.2 Connector (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB) 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices Bluetooth 5.3 LAN Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings. Support For S/PDIF Out USB Port Chipset: 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2x2 Support 1 X USB Type-C® Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel 1 X USB 3.2 Gen 1 Port On The Back Panel 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers Chipset+USB 3.2 Gen 1 Hub: 4 X USB 3.2 Gen 1 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) Chipset+USB 2.0 Hub: 4 X USB 2.0/1.1 Ports On The Back Panel Internal I/O Ports 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 3 X System Fan Headers 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 2 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 2 X Thunderbolt™ Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Q-Flash Plus Button 1 X Reset Button 1 X Reset Jumper 1 X Clear CMOS Jumper External I/O Ports 2 X SMA Antenna Connectors (2T2R) 1 X USB Type-C® Port, With USB 3.2 Gen 2x2 Support 1 X USB 3.2 Gen 2 Type-A Port (Red) 3 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 1 X HDMI Port 1 X DisplayPort 1 X RJ-45 Port 1 X Optical S/PDIF Out Connector 2 X Audio Jacks WiFi Intel® Wi-Fi 6E AX211 WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate DIMENSIONS 24.4cm X 24.4cm Form Factor Micro ATX BIOS 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5. Special Features Support For GIGABYTE Control Center (GCC) * Available Applications In GCC May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications. Support For Q-Flash Support For Q-Flash Plus Software Features Bundled Software Norton® Internet Security (OEM Version) LAN Bandwidth Management Software Others I/O Controller ITE® I/O Controller ChipH/W Monitoring Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control Warranty 3 Years GIGABYTE B760M AORUS ELITE AX 13TH GEN Micro ATX MOTHERBOARD The GIGABYTE B760M AORUS ELITE AX Motherboard is a high-performance motherboard that supports Intel® CoreTM, Pentium® Gold, and Celeron® Processors from the 13th and 12th Generations. This motherboard can give a smooth performance for demanding applications thanks to DDR5 memory support and the Intel® B760 Express Chipset. This motherboard's inbuilt graphics processor supports resolutions of up to 4096x2304 @ 60 Hz and has HDMI and DisplayPort outputs. The Realtek® Audio CODEC supports high-definition audio with 2/4/5.1/7.1-channel capability, while the Realtek® 2.5GbE LAN chip and Intel® Wi-Fi 6E AX211 module offer quick and dependable networking choices. This motherboard also has four SATA 6Gb/s connections, one M.2 connector (Socket 3, M key), and one USB Type-C® port on the rear panel that supports USB 3.2 Gen 2x2. This motherboard is an excellent choice for a powerful and versatile system since it supports AMD CrossFireXTM technology and has 4 USB 3.2 Gen 1 connections. .. | GIGABYTE B760M AORUS ELITE X AX DDR5 mATX MotherboardGIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard, a compact powerhouse designed to deliver exceptional performance and versatility in a smaller form factor. Whether you're a gamer, content creator, or enthusiast, this motherboard combines advanced features, reliable construction, and cutting-edge technology to take your computing experience to new heights. The GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard is built to support the latest Intel 12th generation Alder Lake processors, ensuring powerful performance for demanding applications and games. With its LGA 1700 socket and support for DDR5 memory, this motherboard maximizes the potential of the latest CPUs, enabling seamless multitasking, smooth gaming experiences, and lightning-fast data transfers. Despite its smaller size, the B760M AORUS ELITE X AX doesn't compromise on expansion capabilities. Equipped with PCIe 5.0 slots, this motherboard allows you to install high-performance graphics cards, storage devices, and other expansion cards to meet your needs. With PCIe 5.0, you can take advantage of increased bandwidth and faster data transfer speeds, unleashing the full potential of your system. Connectivity is another area where the B760M AORUS ELITE X AX shines. With a range of USB ports, including USB 3.2 Gen 2x2 and USB Type-C, Thunderbolt 4 support, and the latest Wi-Fi 6E technology, this motherboard ensures lightning-fast data transfers and seamless connectivity. Whether you're gaming online, streaming content, or working on data-intensive projects, this motherboard keeps you connected without compromise. Efficient cooling is a priority for the B760M AORUS ELITE X AX. With multiple fan headers, advanced thermal design, and integrated heatsinks, this motherboard ensures optimal heat dissipation, even during intense workloads. Say goodbye to overheating and hello to uninterrupted performance and stability. Additionally, the B760M AORUS ELITE X AX features an advanced audio solution, delivering immersive and crystal-clear sound for your gaming and multimedia needs. With high-quality audio components and advanced audio technologies, you can experience every detail and nuance in your favorite games, movies, and music. Upgrade your computing experience with the GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard. With its compact size, powerful performance, extensive connectivity options, efficient cooling, and immersive audio, this motherboard is the perfect choice for those seeking a high-performance system in a smaller form factor. Embrace the power and versatility of the B760M AORUS ELITE X AX and take your computing to new heights... | MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX MotherboardThe MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard is a compact yet powerful solution tailored for modern gamers, content creators, and PC builders seeking premium performance in a space-saving form factor. Built on the Intel B860 chipset, this motherboard supports the latest Intel Core Ultra Series 2 processors using the LGA 1851 socket, delivering next-gen processing power and efficiency. Despite its Micro ATX form factor (243.84mm x 243.84mm), the board doesn’t compromise on performance or features. It supports up to 256GB of DDR5 memory across four DIMM slots, with overclocking capabilities up to 8800+ MT/s, and full support for Intel XMP 3.0 for effortless tuning. This ensures smooth multitasking and optimal gaming performance. For storage, the B860M GAMING PLUS WIFI offers three M.2 slots, including one PCIe 5.0 x4 slot from the CPU, and four SATA 6Gbps ports. RAID support (0/1/5/10) enhances data performance and redundancy. Its PCIe configuration includes four PCI-E x16 slots, with Gen 5.0 x16 support for high-end GPUs. Connectivity is future-ready with Intel Killer 5G LAN, Wi-Fi 7, and Bluetooth 5.4, providing ultra-fast and stable wired and wireless networking. Rear I/O includes a diverse array of USB ports, including USB 10Gbps Type-A and Type-C, and even a Thunderbolt 4 port supporting DisplayPort 2.1, capable of outputting 8K@60Hz or 4K@120Hz, perfect for high-resolution displays. Additional features include advanced cooling support, multiple fan headers, ARGB lighting connectors, and diagnostic LEDs for easy troubleshooting. With robust build quality, extensive expansion options, and a 3-year warranty, the MSI B860M GAMING PLUS WIFI is a top-tier Micro ATX board that punches well above its weight... |
