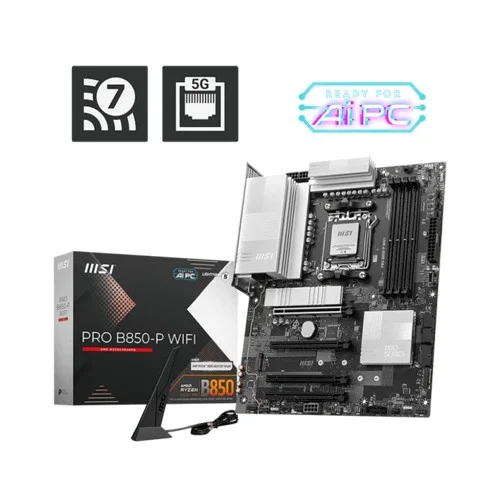

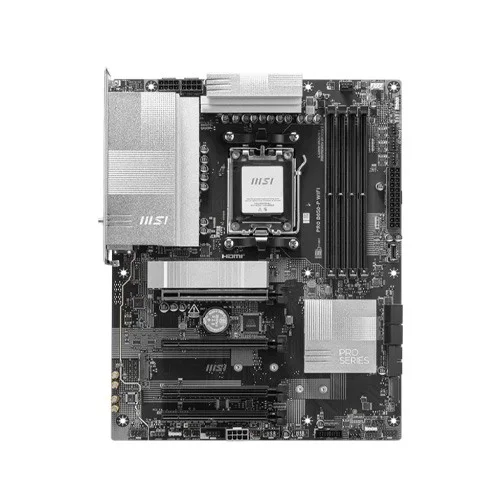

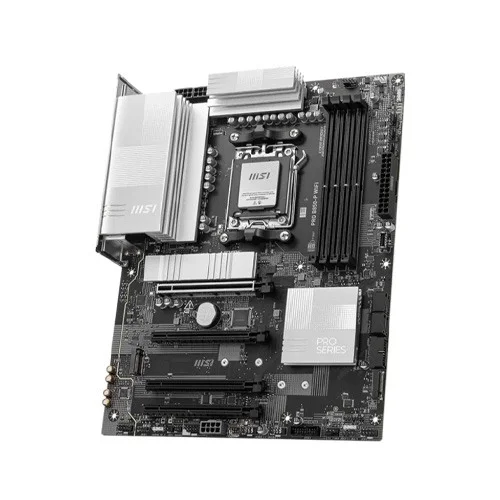

MSI PRO B850M-P WIFI ATX AMD Motherboard
- Stock: In Stock
- Model: PRO B850M-P WIFI
- Product id: 27971
- AMD Ryzen 7000/8000/9000 series desktop processors
- Support for DDR5 8200 MHz memory (OC)
- 3 M.2 PCIe slots (one 5.0 x4 slot)
- High-definition 7.1 audio with Realtek ALC897 chipset
| Basic Information | |
| Supported CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Chipset | AMD B850 |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| M.2 Socket | Socket AM5 |
| Memory | |
| Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot. |
| Supported Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Connector & Ports | |
| HDMI | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* |

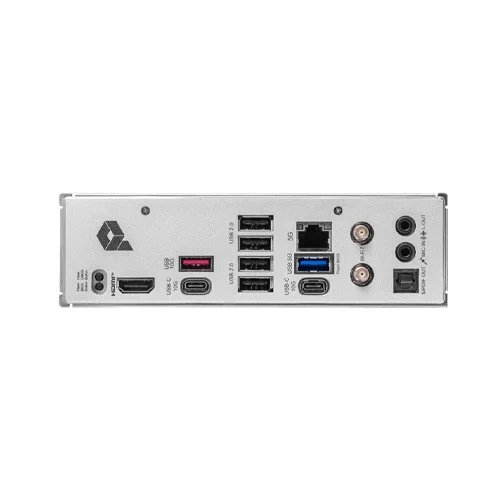

| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) |
| LAN Port (s) | Realtek® 8126VB 5G LAN |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| Warranty Information | |
| Warranty | 3 Years Warranty |
MSI PRO B850M-P WIFI ATX AMD Motherboard
The MSI PRO B850M-P WIFI ATX AMD Motherboard is a high-performance motherboard designed for users who demand reliability and cutting-edge technology for their computing needs. Built for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors, this motherboard supports high overclocking frequencies, making it perfect for gaming, content creation, or heavy multitasking.Equipped with DDR5 memory support, the motherboard can handle up to 256GB of RAM, with speeds ranging from 8200 MT/s (OC) to 4800 MT/s, ensuring fast and efficient memory management. The Wi-Fi 7 module supports MU-MIMO TX/RX and allows wireless speeds up to 5.8Gbps across 2.4GHz, 5GHz, and 6GHz bands. This ensures seamless online gaming, streaming, and other high-bandwidth activities.With PCIe 5.0 and PCIe 4.0 slots, the motherboard offers excellent expansion options for high-speed data transfer, ideal for installing the latest graphics cards, storage devices, and other add-on cards. The Realtek® ALC897 audio chip provides 7.1-channel high-definition audio for a truly immersive audio experience. In addition, it supports HDMI 2.1, allowing you to connect to high-definition displays with resolutions up to 4K 60Hz.For users who need a solid, feature-packed motherboard, the MSI PRO B850M-P WIFI offers multiple connectivity options, including USB 3.2 Gen 2 ports for fast data transfers and 5G LAN for stable wired connections. It also supports RGB LED connectors for customization and enhanced aesthetics. This motherboard is perfect for users looking to build a system that can handle demanding applications while maintaining stability and longevity.With a 3-year warranty, the MSI PRO B850M-P WIFI ATX motherboard ensures a lasting investment in your PC building journey.
Features
- Supports AMD Ryzen™ 9000/8000/7000 Series Processors for optimal performance.
- DDR5 Memory Support up to 256GB with speeds of up to 8200 MT/s (OC).
- PCIe 5.0 and PCIe 4.0 Slots for enhanced expansion and high-speed performance.
- Wi-Fi 7 Support for wireless speeds up to 5.8Gbps, perfect for high-speed internet activities.
- Realtek® ALC897 Audio Chip providing 7.1-channel high-definition audio.
- 5G LAN for fast and stable wired network connectivity.
- HDMI 2.1 with 4K 60Hz support for superior display performance.
- RGB LED Support for enhanced customization of your PC setup.
- Multiple USB Ports for fast data transfers, including USB 3.2 Gen 2 ports.
- 3-Year Warranty ensuring durability and long-lasting performance.
