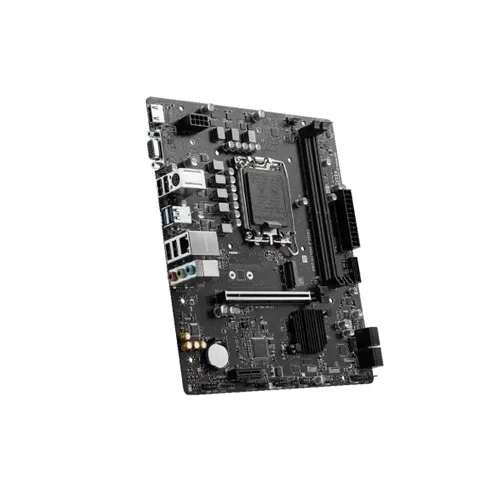

MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard

Save: 3851৳ (29%)

MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard

Stock: In Stock
Model: PRO H610M-E DDR4
Product id: 24409

Based on 0 reviews. - Write a review

Bundle with pc - 8700/-

9,599৳

13,450৳

Ex Tax: 9,599৳

Available Options

Variant :

Bundle with PC

Single (+500৳)

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

- Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 64GB
- Graphics Output: 1x HDMI, 1x VGA
- : 1x M.2 slot, Realtek RTL8111H Gigabit LAN

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Chat Through

Messenger

Specification

Basic Information
Supported CPU	Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset	Intel H610 Chipset
Form Factor	mATX 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Audio	Realtek ALC897 Codec 7.1-Channel High-Definition Audio
Expansion Slots
PCI	1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1
Memory
Type	DDR4
Slots	2
Supported Memory	Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	64GB
Graphics
Graphics	supporting a maximum resolution of 4K 30Hz supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

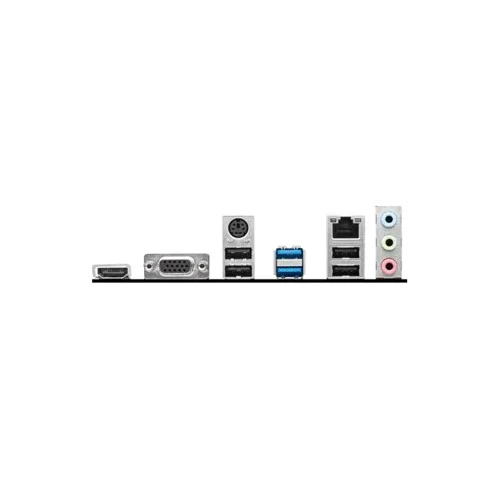

Connector & Ports
HDMI	1x HDMI 1.4 with HDR port
VGA (s)	1x VGA
USB (s)	1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 ports
LAN Port (s)	1x Realtek RTL8111H 1Gbps LAN controller
Supported Storage	1x M.2 slot (Key M) (from CPU) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin +12V power connector 1x 4-pin CPU fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper
TPM (Trusted Platform Module )	1x TPM module connector
Others
Special Features	1x 4-pin RGB LED connector 4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years

MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard

The MSI PRO H610M-E DDR4 12th Gen & 13th Gen mAT, X Motherboard is a high-performance motherboard for the LGA 1700 socket that supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron CPUs. This motherboard includes DDR4 memory compatibility, which can run at up to 3200(MAX) MHz. It also has Core Boost technology, a premium layout, and a digital power architecture, which improves performance and enables additional cores. Memory Boost technology, which produces pure data signals, ensures the highest performance, stability, and compatibility with the MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard. It has PCIe 4.0, which allows for extremely rapid data transfers. Audio Boost technology provides studio-level sound quality to your ears, making it a perfect motherboard for gamers and music aficionados. The MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard also has Steel Armor, which protects VGA cards from bending and EMI while improving performance, stability, and robustness. This motherboard is a good choice for individuals looking for a high-performance motherboard that can handle demanding programs and games, thanks to its sophisticated features and superb design
