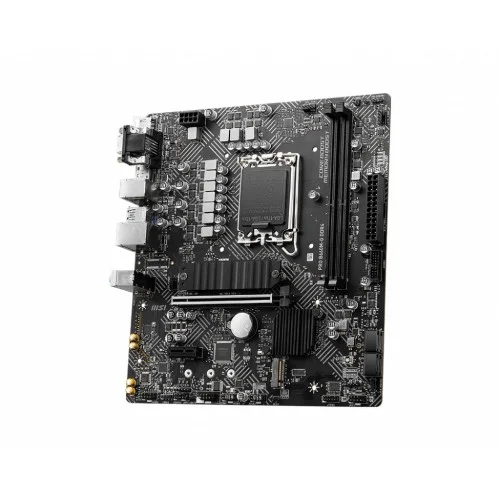

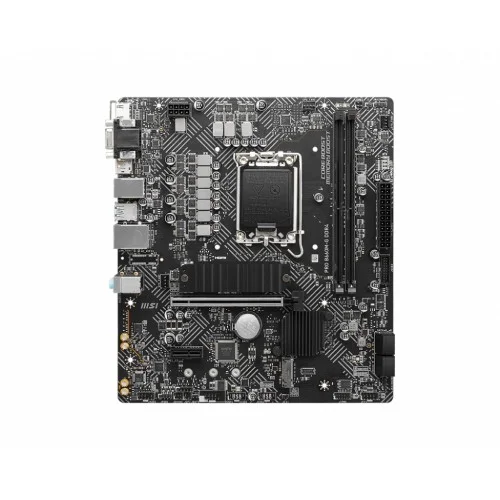

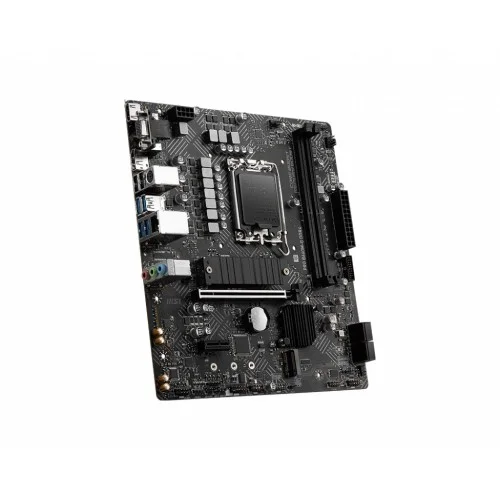

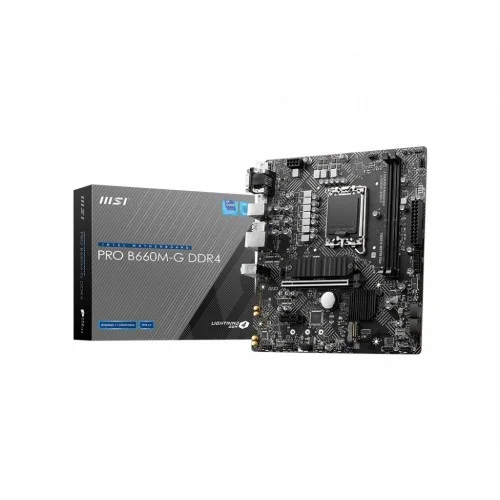

MSI PRO B660M-G DDR4 12th Gen mATX Motherboard

Save: 3001৳ (19%) Out Of Stock

MSI PRO B660M-G DDR4 12th Gen mATX Motherboard

Stock: Out Of Stock
Model: MSI PRO B660M-G DDR4
Product id: 22632

Based on 0 reviews. - Write a review

12,499৳

15,500৳

Ex Tax: 12,499৳

EMI starts at 4,383৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

- Supported Processors: 12th Gen Intel Core, Pentium Gold & Celeron processors
- Supported Memory: DDR4, up to 4600+(OC) MHz
- PCIe 4.0, Lightning Gen4 x4, M.2 Shield Frozr
- Supported socket: LGA 1700

Key Features
Form Factor	mATX
Basic Information
Supported CPU	Pentium Gold, Celeron
Chipset	Intel B660
Memory
Ram Type	DDR4

MSI PRO B660M-G DDR4 12th Gen mATX Motherboard

MSI PRO B660M-G DDR4 USER FRIENDLY DESIGN MSI Motherboards Feature Tons Of Convenient And Smart Design For DIY Users, Countless System Tuning And Troubleshooting Tools Are At Your Disposal To Push Your System To New Heights And Satisfy Even The Most Demanding Tweaker. Makes It So Easy To Install Your Own Motherboard Without Any Issue. M.2 SHIELD FROZR World’s Fastest SSDs Can Start To Lower Performance When Getting Hot. Part Of The Motherboards Heatsink Design, M.2 SHIELD FROZR Is The Next Generation M.2 Thermal Solution To Avoid This By Offering The Best Thermal Protection To Make Sure That SSD Maintains Maximum Performance. CONNECTIVITY The Most Important Thing Of DIY Is Expandability. MSI PRO Series Motherboards Feature Plenty Possibility For Prosumers’ Need. Stable LAN, Faster Storage And USB Transfer Speed And Other Expandable Connectors Are Ready To Enlarge Your Flexibility. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK 2.5 Gbps LAN Provides Incredible Data Transfer Speed Faster Than General Gigabit LAN. This Is A Premium Solution For Demanding Users. EXPERIENCE MORE MSI PRO Series Motherboards Are Designed To Satisfy Any Professional Workflow. Elevate Your Listening Pleasure And Enjoy Extreme Sound Quality. Moreover, With Years Of Experience In Creating Performance Enhancing Tools That Are Easy To Use, Only The Highest Quality Applications Are At Your Disposal. The Extensive Features Let You Fine-Tune Your System To Deliver Reliable Maximum Performance. A HUGE STEP OF DDR PERFORMANCE MSI OC LAB Does Not Merely Work Hard On Extreme Overclocking. The XMP Memory Profile Has Great Improvement On Performance And Efficiency For B660 . Easy To Enable XMP Profile With Auto Power Settings To Get The Best Memory Speed And Stability. CORE BOOST Core Boost Technology Combines MSI's Premium Layout And Optimized Power Design Which Allows For Faster And Undistorted Current Delivery To The CPU At Pin-Point Precision. Not Only Supporting Multi-Core CPU, Also Creating The Perfect Conditions For Your CPU Overclocking.

MSI PRO B660M-G DDR4 Features

Supports 12th Gen Intel® Core™, Pentium® Gold And Celeron® Processors For LGA 1700 Socket
Supports DDR4 Memory, Up To 4600+(OC) MHz
Core Boost : With Premium Layout And Digital Power Design To Support More Cores And Provide Better Performance
Memory Boost: Advanced Technology To Deliver Pure Data Signals For The Best Performance, Stability And Compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 X4 M.2 With M.2 Shield Frozr
2.5G LAN: Upgraded Network Solution For Professional And Multimedia Use. Delivers A Secure, Stable And Fast Network Connection
Audio Boost: Reward Your Ears With Studio Grade Sound Quality
Steel Armor: Protecting VGA Cards Against Bending And EMI For Better Performance, Stability And Strength.

MSI PRO B660M-G DDR4 Benefits

MSI PRO B660M-G DDR4 motherboard supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4600+(OC) MHz. This motherboard comes with premium layout and digital power design to support more cores and provide better performance. In thihs bmotherboard, the Advanced technology to deliver pure data signals for the best performance, stability and compatibility. It has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr. With 2.5G LAN, This 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. You can Upgraded network solution for professional and multimedia use and also it Delivers a secure, stable and fast network connection. This motherboard comes with Steel Armor, which helps to Protecting VGA cards against bending and EMI for better performance, stability and strength. The latest MSI PRO B660M-G DDR4 motherboard offers 03 year warranty.

Specifications

Basic Information
Supported CPU	Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700
Chipset	Intel B660 Chipset
BIOS	BIOS FEATURES 1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language
Form Factor	M-ATX Form Factor 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCIe 4.0 x16 slot (from CPU) 1x PCIe 3.0 x1 slot (from B660 chipset)
Memory
Type	DDR4
Slots	2x DDR4 memory slots
Supported Memory	Supports ADL-s 1R 2133/ 2666/ 2933/ 3200 MHz 1 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	support up to 64GB
Graphics
Graphics	1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4)
Connector & Ports
HDMI	HDMI (BACK PANEL PORTS)
Display Port (s)	DisplayPort (BACK PANEL PORTS)
VGA (s)	Yes (BACK PANEL PORTS)
USB (s)	Intel B660 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 2x USB 2.0 Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
LAN Port (s)	1x Realtek RTL8125BG 2.5Gbps LAN controller
Supported Storage	4x SATA 6Gb/s ports (From B660 chipset) 1 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset) 1 Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Technology SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio

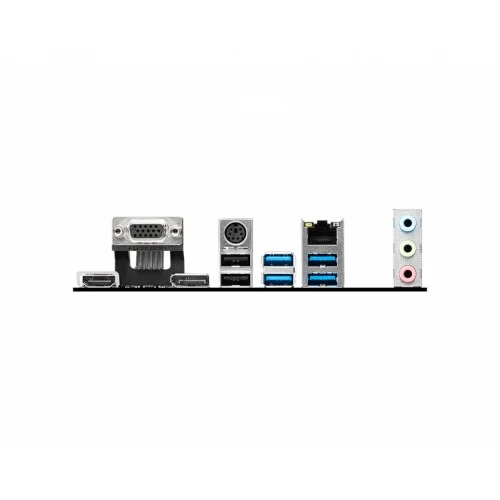

Internal I/O Ports	INTERNAL CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connector (support additional 4 USB ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 2x 4-pin system fan connectorx 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x JRGB 2x JRAINBOW 1x Tuning Controller ConnectorBACK PANEL CONNECTORS: VGA Keyboard / Mouse LAN port Audio connector HDMI DisplayPort USB 2.0 USB 3.2 Gen 1 5Gbps Type-A
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	3 years warranty
Others
Special Features	1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LEDLED FEATURE 4x EZ Debug LED
