Colorful BATTLE-AX B650M-E PRO V14 AMD B650 2 DDR5 Motherboard
Save: 2200৳ (15%)
Colorful BATTLE-AX B650M-E PRO V14 AMD B650 2 DDR5 Motherboard
- Stock: In Stock
- Model: BATTLE-AX B650M-E PRO V14
- Product id: 28790
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Provide 2 M.2 SSD slots
- Equipped with a gigabit wired network card
- PCB atomization process fully upgraded
- I/O backplane supports one click BIOS upgrade function
Quick Compare
| Product Details | ||||
| Product | Colorful BATTLE-AX B650M-E PRO V14 AMD B650 2 DDR5 Motherboard | MSI PRO B650M-E DDR5 AMD AM5 mATX Motherboard | Asus Prime B450M-A II AM4 mATX AMD Motherboard | MSI B450-A PRO MAX AMD GAMING MOTHERBOARD |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | BATTLE-AX B650M-E PRO V14 | PRO B650M-E | Asus Prime B450M-A II | Model-6324 |
| Brand | COLORFUL | MSI | ASUS | |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 1 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |

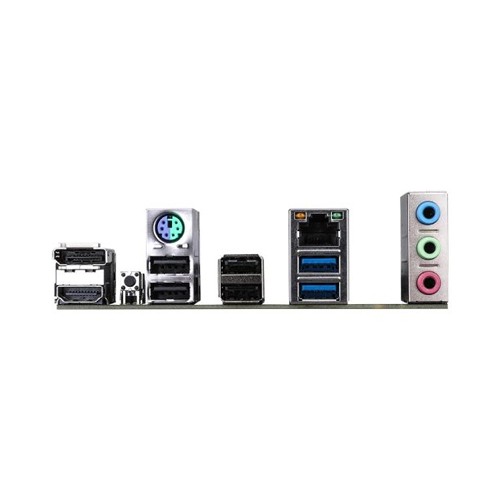

| Summary | Colorful BATTLE-AX B650M-E PRO V14 AMD B650 2 DDR5 MotherboardThe Colorful BATTLE-AX B650M-E PRO V14 is a micro-ATX motherboard designed for AMD's AM5 socket, supporting Ryzen 7000, 8000, and 9000 series processors. This motherboard offers a balance between performance and affordability, making it suitable for users looking to build a high-performance system without breaking the bank. Equipped with a 10+2+1 phase VRM design using Dr. MOS 55A power stages and FCC ferrite inductors, it ensures stable power delivery for overclocking and high-performance tasks. The motherboard supports up to 96GB of DDR5 memory at speeds up to 7600MHz (OC), providing ample bandwidth for demanding applications. For storage, the B650M-E PRO V14 offers two M.2 slots and four SATA 6Gb/s connectors, supporting RAID 0, RAID 1, and RAID 10 configurations for both SATA and NVMe SSDs. This ensures fast storage performance and data security. The motherboard features a PCIe 4.0 x16 slot for graphics cards and a PCIe 4.0 x4 slot for additional expansion cards. The back I/O panel includes USB 2.0 and USB 3.2 Gen 1 Type-A ports, HDMI 2.0 and DisplayPort 1.2 interfaces supporting up to 4K resolution, a PS/2 connector, Gigabit LAN, audio jacks, and a BIOS update button for simple firmware upgrades. Onboard headers include numerous fan connectors, a water pump header, ARGB lighting headers, and front panel audio connectors, making it suitable for both air and liquid cooling configurations with adjustable lighting. In summary, the Colorful BATTLE-AX B650M-E PRO V14 offers a comprehensive set of features that cater to the needs of modern users. Its combination of robust power delivery, high-speed connectivity, effective cooling solutions, and aesthetic customization options make it a compelling choice for those looking to build a high-performance AMD-based system.Features of Colorful BATTLE-AX B650M-E PRO V14 AMD B650 2 DDR5 MotherboardDual M.2 SSD Slots: Supports two M.2 SSDs for high-speed storage options. Gigabit Ethernet: Equipped with a gigabit wired network card for fast and stable internet connectivity. M.2 WiFi/BT Slot: Features an upright M.2 slot for easy expansion with WiFi and Bluetooth modules. iGame Center Lighting Control: Supports iGame Center software for synchronized RGB lighting effects across various components.One-Click BIOS Upgrade: Allows for easy BIOS updates via the I/O backplane.Protective Technologies: Incorporates six major protective technologies to ensure stable operation. Rigorous Testing: Undergoes strict testing of 200 processes to guarantee quality assurance.Upgraded PCB Atomization: Features a fully upgraded PCB atomization process for enhanced durability. .. | MSI PRO B650M-E DDR5 AMD AM5 mATX MotherboardThe MSI PRO B650M-E DDR5 AMD AM5 mATX motherboard is designed for enthusiasts and professionals seeking high-performance computing in a compact form factor. This motherboard supports AMD Ryzen™ 7000 Series processors with the AMD B650 chipset, ensuring top-tier performance and future-proofing for upcoming applications. One of the standout features of this motherboard is its support for DDR5 memory, offering blazing-fast speeds for smooth multitasking and demanding applications. It supports up to 128GB of memory, with overclocking capabilities reaching 6800+ MHz for 1DPC 1R configurations and 6000+ MHz for 1DPC 2R configurations, making it ideal for high-end gaming, content creation, and professional workloads. The dual-channel memory setup enhances bandwidth, further improving system responsiveness and overall performance. For expansion, the MSI PRO B650M-E comes with 1x PCIe x16 slot (PCIe 4.0), ensuring that high-performance GPUs run at full potential. Additionally, there is 1x PCIe x1 slot for added peripherals. Storage-wise, it features 1x M.2 slot supporting PCIe 4.0 x4 for ultra-fast NVMe SSDs and 4x SATA 6G ports for additional drives. The motherboard also offers a variety of connectivity options, including USB 3.2 Gen1 and USB 2.0 ports, an HDMI port for 4K resolution output, and a VGA port for legacy support. For networking, the Realtek® RTL8111H Gigabit LAN provides stable and fast wired internet. With 7.1-Channel High Definition Audio powered by Realtek® ALC897, the MSI PRO B650M-E delivers immersive sound for gaming and media consumption. It also includes TPM 2.0 support for enhanced security... | Asus Prime B450M-A II AM4 mATX AMD Motherboard Asus Prime B450M-A motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into AMD Ryzen™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450M II Series motherboard, you build smart, easy and affordably. Cool to the Core Prime B450M II series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Build on a Solid Foundation Asus Prime B450M-A motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Achieve speed with onboard M.2 M.2 Slot supports up to 22110 and data-transfer speed up to 32Gbps via x4 PCI Express® 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data. Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced. Asus Prime B450M-A II AM4 mATX Feature Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+ Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 2 Type-A 5X Protection III: Multiple hardware safeguards for all-around system protection Aura Sync RGB Lighting: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware .. | MSI B450-A PRO MAX AMD AM4 Motherboard The MSI B450-A PRO-M2 motherboard is a solid choice for building a system based on AMD Ryzen processors for AM4 socket. It is every factor rather than just one or two which are improved. Exclusive Core Boost technology allows for easy CPU overclocking while DDR4 Boost technology ensures stable memory performance. Enjoy ultra-fast storage speed by installing PCI-E SSD using the M.2 slot. Both data transfer and charging via USB will be accelerated for less wait time. The PCI-E steel slots are ready for long, heavy graphics card. The purest audio will be reproduced to let you aim your enemies precisely. Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want. Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heat sink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. PRO Series motherboards combine stable functionality and high quality assembly for clever business solutions. Designed to satisfy any professional workflow, PRO Series motherboards make life easier for businesses and office use. This extreme device comes with 3 years warranty. Specification: Basic Information Supported CPU Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics/ 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 Chipset AMD B450 Chipset Form Factor ATX 12 in. x 9.6 in. (30.5 cm x 24.4 cm) Expansion Slots PCI 1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode Athlon with Radeon Vega Graphics support x4 mode 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) 4 x PCIe 2.0 x1 slots M.2 Socket 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device Memory Type Dual channel memory architecture Slots 4 x DDR4 memory slots Supported Memory Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz(by A-XMP OC MODE) For AMD Other CPU Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE) Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Maximum Mamory 64GB Graphics Graphics 1 x VGA port, support a maximum resolution of 2048x1280 @60Hz,1920x1200 @60Hz 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics processors Supports 2-Way AMD CrossFire Technology Max Shared Memory 2048 MB Connector & Ports HDMI 1 x HDMI 1.4 port 4096x2160 @30Hz, 2560x1600 @60Hz USB (s) AMD B450 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel LAN Port (s) 1 x Realtek 8111H Gigabit LAN controller Supported Storage AMD CPU 2 x SATA 6Gb/s ports1 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device AMD B450 Chipset 4 x SATA 6Gb/s ports Audio Realtek ALC892 Codec 7.1-Channel High Definition Audio Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x 5050 RGB LED strip 12V connector DVI-D (s) 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz Warranty Information Manufacturing Warranty 03 Years Warranty .. |
