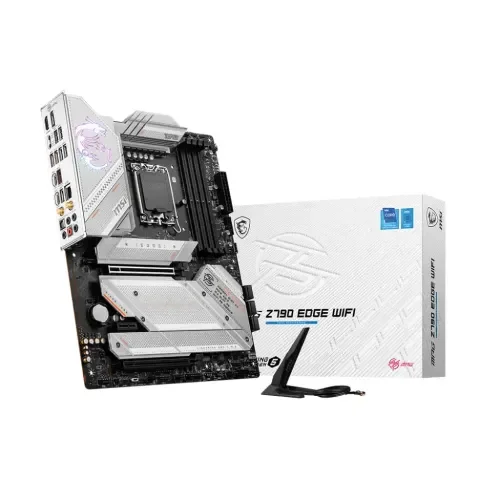

MSI MPG Z790 EDGE WIFI 13th and 12th Gen ATX Motherboard
Save: 3710৳ (8%)
Out Of Stock
MSI MPG Z790 EDGE WIFI 13th and 12th Gen ATX Motherboard
- Stock: Out Of Stock
- Model: MPG Z790 EDGE WIFI
- Product id: 24608
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Supported CPU: 13th /12th Gen Intel Core / Pentium / Celeron processors (LGA 1700)
- Supported RAM: 4x DDR5, Max 128GB, 7200+(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- : 2.5G LAN and Intel Wi-Fi 6E Solution
Quick Compare
| Product Details | ||||
| Product | MSI MPG Z790 EDGE WIFI 13th and 12th Gen ATX Motherboard | ASUS X870 AYW GAMING WIFI W AMD X870 AM5 ATX Gaming Motherboard | MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard | ASRock Z890 STEEL LEGEND WiFi LGA 1851 ATX Motherboard |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | MPG Z790 EDGE WIFI | ASUS X870 AYW | Z890 GAMING PLUS WIFI | Z890 Steel Legend WiFi |
| Brand | MSI | ASUS | MSI | INTEL |
| Availability | Out Of Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Specification Technical Information Supported CPU Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 Chipset INTEL Z790 Form Factor ATX 243.84mmx304.8mm Audio Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) Type DDR5 Slots 4 x DIMM Supported Memory 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHzSupports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory Maximum Memory 128GB Graphics 1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz HDMI 1x HDMI Display Port (s) 1x DisplayPort USB (s) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) LAN Port (s) Intel 2.5Gbps LAN Wireless Communication module Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA Supported Storage 5x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_5 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 7x SATA 6G port RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. Audio Audio Connectors Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0) Special Features 4x EZ Debug LED 1x EZ LED Control switch Manufacturing Warranty 3 years MSI MPG Z790 EDGE WIFI 13th Gen ATX Motherboard The MSI MPG Z790 EDGE WIFI Motherboard is an ATX motherboard that supports 13th/12th Gen Intel Core/Pentium/Celeron processors for the LGA 1700 socket. It has four DDR4 RAM slots for dual-channel memory with speeds up to 7200+(OC) MHz. The motherboard offers ample storage options with six SATA III connections and four M.2 interfaces, supporting RAID configurations. It provides various PCIe slots for GPUs and adapter cards. The board features 2.5 GbE Intel LAN, Wi-Fi 6E, and Bluetooth 5.2 for networking. The Realtek ALC4080 audio codec delivers 7.1 channel surround sound, and the rear ports support analog or digital output. It offers multiple USB ports, DisplayPort, HDMI, and internal headers for additional features. The motherboard includes a Flash BIOS button and comes with a 3-year warranty. .. | Product DetailsASUS X870 AYW GAMING WIFI W AMD X870 AM5 ATX motherboard price in BD is attracting attention from gamers and PC builders who want next-gen performance and reliability. Designed with the AMD X870 chipset and AM5 socket, this ATX motherboard supports the latest Ryzen 8000 series processors and DDR5 memory, ensuring unmatched speed and multitasking capabilities. The ASUS X870 AYW GAMING WIFI W AMD X870 AM5 ATX motherboard comes equipped with PCIe 5.0 slots, WiFi 7, and USB 4.0 support, making it perfect for gaming, streaming, and professional workloads. Its 14+2 phase VRM power design ensures stable performance, even under heavy overclocking. The board also includes reinforced slots, AI-enhanced features, and customizable RGB lighting for a premium gaming aesthetic. Gamers will appreciate the advanced cooling system with VRM heatsinks, hybrid fan headers, and AI cooling technology that keeps your system cool and quiet. For those planning a new build, this motherboard offers easy installation with Q-Design and BIOS Flashback support. Whether you are an enthusiast or a competitive gamer, the ASUS X870 AYW GAMING WIFI W AMD X870 AM5 ATX motherboard is a future-ready solution.Features of ASUS X870 AYW GAMING WIFI W AMD X870 AM5 ATX Gaming MotherboardNext-Gen AMD X870 Chipset Support: The ASUS X870 AYW GAMING WIFI W AMD X870 AM5 ATX motherboard supports the latest AM5 processors, ensuring future compatibility and extreme processing power.Dual PCIe 5.0 GPU Support: Built for high-performance gaming, it features dual PCIe 5.0 x16 slots—perfect for multi-GPU setups and maximum graphical bandwidth.Built-in WiFi 7 and 2.5G LAN: Enjoy lightning-fast connectivity with integrated WiFi 7 and a reliable 2.5G LAN port for lag-free online gaming and streaming.Advanced Thermal Design with AI Cooling II: The motherboard includes intelligent fan control and thermal sensors to keep your system cool under heavy load, increasing lifespan and stability.Customizable Aura Sync RGB Lighting: Fully compatible with ASUS Aura Sync, allowing gamers to personalize their rig with dynamic lighting effects that sync across all components.Enhanced Power Delivery with 18+2 VRM Phases: Designed for overclockers and power users, the ASUS X870 AYW GAMING WIFI W AMD X870 AM5 ATX motherboard delivers stable and clean power to your CPU.DDR5 Overclocking Support up to 8000+ MHz: Push the boundaries of performance with support for ultra-fast DDR5 RAM—ideal for high-speed gaming and creative workflows.Gaming-Grade Audio Boost with AI Noise Canceling: Delivers immersive sound with built-in AI noise cancellation for crystal-clear voice communication during gaming sessions.Tool-Free Q-Latch M.2 Installation: Simplify your PC build with a screwless M.2 slot that allows for quick and easy SSD upgrades. ASUS X870 AYW GAMING WIFI W AMD X870 AM5 ATX Gaming Motherboard price in BD offers top-tier performance for gamers and creators. Featuring the latest AMD X870 chipset, DDR5 RAM support, WiFi 7, and PCIe 5.0, it ensures blazing speed and stable power delivery. The robust ATX form factor with advanced cooling and RGB customization makes it a perfect choice for high-performance builds. Buy now to upgrade your gaming PC and experience next-gen computing in Bangladesh.FAQ Section:Q1: What is the ASUS X870 AYW price in Bangladesh?A: The expected price will vary based on availability, but it's positioned in the premium range.Q2: Does it support DDR5 RAM?A: Yes, it fully supports DDR5 memory modules.Q3: Is this motherboard compatible with Ryzen 9000 Series?A: Yes, it supports the latest AMD Ryzen 9000 Series processors... | MSI Z890 GAMING PLUS WIFI LGA 1851 ATX MotherboardThe MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard is a powerful and feature-rich platform engineered for gamers and performance enthusiasts looking to build a cutting-edge Intel-based system. Designed for the latest Intel Core Ultra Series 2 processors on the LGA 1851 socket, this motherboard is built on the premium Intel Z890 chipset, delivering next-gen performance, advanced connectivity, and high-speed memory support. Equipped with four DDR5 DIMM slots, it supports up to 256GB of memory with extreme overclocking speeds reaching 9200+ MT/s, making it ideal for demanding workloads, competitive gaming, and intensive multitasking. With full support for Intel XMP 3.0, non-ECC, un-buffered memory, and dual-channel architecture, users can fully exploit the power of DDR5. The motherboard provides four PCIe slots, including a PCIe 5.0 x16 slot for the latest graphics cards, and three PCIe 4.0 slots for high-speed expansion cards. Storage is equally versatile with multiple RAID configurations supported for both SATA and NVMe M.2 devices, ensuring fast and secure data management. For display and multimedia, the board features HDMI 2.1, DisplayPort 1.4, and a Thunderbolt 4 Type-C port, supporting up to 8K resolution and high-speed device chaining. Networking is handled by an ultra-fast Intel Killer E5000 5Gbps LAN and Killer BE1750x Wi-Fi 7, offering blazing connectivity, low latency, and advanced wireless performance. With 4x EZ Debug LEDs, ARGB support, and extensive cooling options, the Z890 GAMING PLUS WIFI provides a hassle-free building experience and excellent thermal control. It’s backed by a 3-year warranty and built for those who want reliable, modern hardware with top-tier gaming and productivity features in a refined ATX form factor... | ASRock Z890 STEEL LEGEND WiFi LGA 1851 ATX MotherboardThe ASRock Z890 STEEL LEGEND WiFi LGA 1851 ATX Motherboard is a powerful and feature-rich motherboard designed for enthusiasts and professionals seeking ultimate performance and reliability. Powered by the advanced Intel Z890 chipset, it supports the latest Intel Core Ultra Processors (Series 2) with the LGA1851RL-ILM socket. This motherboard leverages Intel® Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost, and Adaptive Boost Technology for seamless multitasking and enhanced processing speeds. With an integrated NPU for AI acceleration, it’s perfect for cutting-edge applications. Equipped with 4 DDR5 DIMM slots, the motherboard supports up to 256GB of memory, ensuring optimal performance for demanding applications. Its robust 14+1+1 power phase and 50A Dr.MOS design, coupled with an enlarged heatsink armor and 2oz copper PCB, guarantee exceptional durability and efficient heat dissipation. The ASRock Z890 STEEL LEGEND offers unmatched connectivity with dual Thunderbolt™ 4 ports, HDMI 2.1, DisplayPort 1.4, and multiple USB 3.2 Gen1, Gen2, and Gen2x2 ports for ultra-fast data transfer and superior video output. Storage options include blazing-fast PCIe Gen5 and Gen4 M.2 sockets and RAID support, ensuring flexible and secure storage solutions. For gamers and content creators, the motherboard’s Nahimic Audio and Realtek ALC897 codec deliver immersive 7.1-channel HD sound. It also features RGB LED headers and addressable headers for full customization of lighting effects. Additionally, built-in Wi-Fi 6E and Bluetooth 5.3 provide high-speed wireless connectivity, while the 2.5G LAN ensures stable network performance. The motherboard’s user-friendly design, including an integrated I/O shield and Post Status Checker, makes installation and troubleshooting hassle-free. Backed by a 3-year warranty, the ASRock Z890 STEEL LEGEND WiFi LGA 1851 ATX Motherboard is the ultimate solution for high-performance computing needs.ASRock Z890 STEEL LEGEND WiFi LGA 1851 ATX Motherboard FeaturesProcessor Support: Compatible with Intel Core Ultra Processors (Series 2) on LGA1851RL-ILM socket. Features Intel® Hybrid Technology, Turbo Boost Max 3.0, Adaptive Boost Technology, and Thermal Velocity Boost for superior performance. Integrated NPU for advanced AI acceleration.Advanced Chipset: Powered by the Intel Z890 chipset for cutting-edge performance and reliability.Memory and Expansion: 4 x DDR5 DIMM slots with a maximum capacity of 256GB for extreme multitasking. Supports PCIe 5.0 for GPUs and multiple PCIe 4.0 slots for additional expansion cards.Ultrafast Storage: Features Blazing M.2 and Hyper M.2 sockets supporting PCIe Gen5 and Gen4 storage devices. RAID support for both SATA and NVMe storage solutions.Premium Graphics Output: Intel Xe LPG Graphics Architecture with HDMI 2.1 (4K 120Hz) and DisplayPort 1.4 (8K 60Hz) support. Dual Thunderbolt™ 4 ports for high-resolution output up to 8K.Robust Power and Cooling: 14+1+1 power phase design with 50A Dr.MOS and enlarged heatsink armor for enhanced durability and heat dissipation. Smart Fan Speed Control for optimal cooling performance.Connectivity: Dual-band Wi-Fi 6E and Bluetooth 5.3 for seamless wireless connectivity. 2.5G LAN for ultra-reliable wired networking. Multiple USB ports, including Thunderbolt™ 4, USB 3.2 Gen2x2 Type-C, and USB 2.0.Enhanced User Experience: Integrated I/O shield for easy installation. ASRock Auto Driver Installer and Post Status Checker for hassle-free setup and troubleshooting.Customizable Lighting: Features RGB LED and addressable LED headers for personalized lighting effects.Audio Quality: 7.1 Channel HD Audio with Nahimic enhancements for immersive sound.Durability and Warranty: Built with 2oz copper PCB for reliability and efficiency. Backed by a 3-year warranty for peace of mind... |
