MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
- Stock: In Stock
- Model: Z890 GAMING PLUS WIFI
- Product id: 28225
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
- Graphics Output: 1x HDMI,, 1x DisplayPort, 1x Type-C DisplayPort
- Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4
| Key Features | |
| LED Type | 4x EZ Debug LED |
| Basic Information | |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) LGA 1851 |
| Chipset | INTEL Z890 |
| Form Factor | ATX 243.84mmx304.8mm |
| Memory | |
| Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Supported Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Graphics | |
| Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz* |
| Connector & Ports | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| LAN Port (s) | Intel Killer E5000 5Gbps LAN |

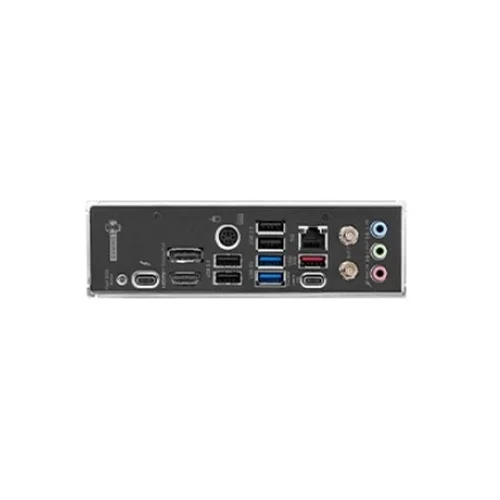

| External I/O Ports | DisplayPort Keyboard / Mouse USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button Thunderbolt™ 4 40Gbps (Type-C) HDMI™ USB 2.0 USB 5Gbps Type A ports USB 10 Gbps Type C ports USB 10 Gbps Type A ports |
| Wireless Communication module | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Ports & Slots | |
| Ports | 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
| Software | |
| Operating System | Support for Windows 11 64-bit |
| Features | |
| Other Features | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Warranty Information | |
| Warranty | 03 years |
MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard
The MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard is a powerful and feature-rich platform engineered for gamers and performance enthusiasts looking to build a cutting-edge Intel-based system. Designed for the latest Intel Core Ultra Series 2 processors on the LGA 1851 socket, this motherboard is built on the premium Intel Z890 chipset, delivering next-gen performance, advanced connectivity, and high-speed memory support. Equipped with four DDR5 DIMM slots, it supports up to 256GB of memory with extreme overclocking speeds reaching 9200+ MT/s, making it ideal for demanding workloads, competitive gaming, and intensive multitasking. With full support for Intel XMP 3.0, non-ECC, un-buffered memory, and dual-channel architecture, users can fully exploit the power of DDR5. The motherboard provides four PCIe slots, including a PCIe 5.0 x16 slot for the latest graphics cards, and three PCIe 4.0 slots for high-speed expansion cards. Storage is equally versatile with multiple RAID configurations supported for both SATA and NVMe M.2 devices, ensuring fast and secure data management. For display and multimedia, the board features HDMI 2.1, DisplayPort 1.4, and a Thunderbolt 4 Type-C port, supporting up to 8K resolution and high-speed device chaining. Networking is handled by an ultra-fast Intel Killer E5000 5Gbps LAN and Killer BE1750x Wi-Fi 7, offering blazing connectivity, low latency, and advanced wireless performance. With 4x EZ Debug LEDs, ARGB support, and extensive cooling options, the Z890 GAMING PLUS WIFI provides a hassle-free building experience and excellent thermal control. It’s backed by a 3-year warranty and built for those who want reliable, modern hardware with top-tier gaming and productivity features in a refined ATX form factor.
