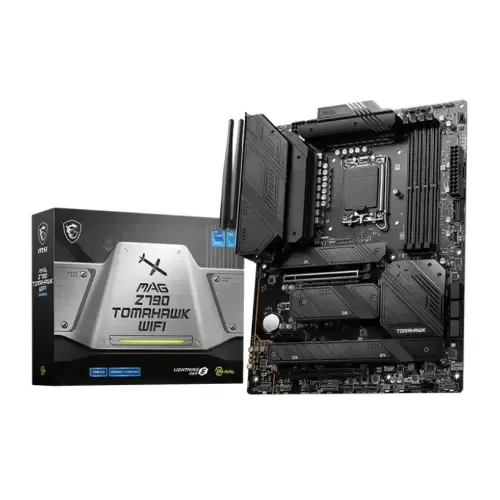

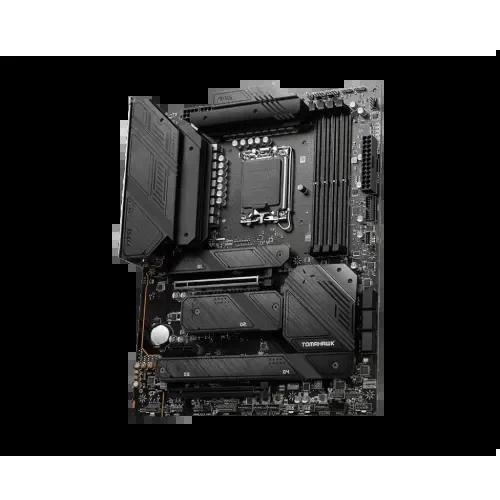

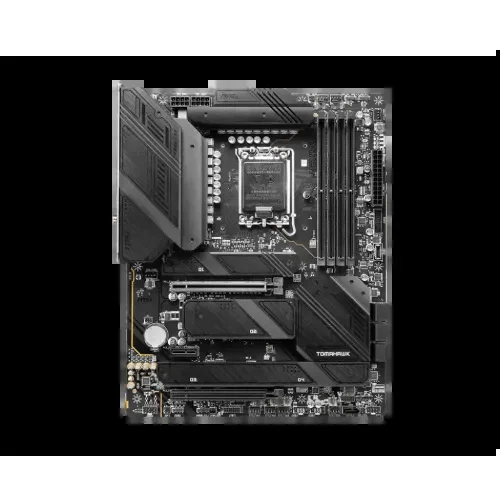

MSI MAG Z790 TOMAHAWK WIFI 12th and 13th Gen ATX Motherboard
Save: 5000৳ (11%)
MSI MAG Z790 TOMAHAWK WIFI 12th and 13th Gen ATX Motherboard
- Stock: In Stock
- Model: MAG Z790 TOMAHAWK WIFI
- Product id: 24656
39,000৳
44,000৳
Ex Tax: 39,000৳
- Supported CPU: 12th/13th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
- Supported RAM: 4x DDR5, 7200+(OC), Max 192GB
- Graphics Output: 1x HDMI, 1x DisplayPort
- : 2.5G LAN with Wi-Fi 6E Solution
Quick Compare
| Product Details | ||||
| Product | MSI MAG Z790 TOMAHAWK WIFI 12th and 13th Gen ATX Motherboard | Gigabyte Z790 AORUS ELITE AX 13th and 12th Gen DDR5 ATX Motherboard | Asus ROG STRIX B850-G GAMING WIFI mATX Motherboard | Asus TUF GAMING B850-BTF WIFI W ATX Motherboard |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | MAG Z790 TOMAHAWK WIFI | Gigabyte Z790 AORUS ELITE AX | ROG STRIX B850-G GAMING WIFI | TUF GAMING B850-BTF WIFI W |
| Brand | MSI | ASUS | ASUS | |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Specification Basic Information Supported CPU Supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1700 Chipset Intel Z690 Chipset Form Factor ATX 243.84mmx304.8mm Audio Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel Expansion Slots PCI 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) M.2 Socket 4x M.2 slots Memory Type DDR5 Slots 4 x DIMM Supported Memory Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory Maximum Memory 192GB Graphics Graphics 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* Connector & Ports HDMI 1x HDMI 2.1 Display Port (s) 1x DisplayPort 1.4 USB (s) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) LAN Port (s) Intel 2.5Gbps LAN Wireless Communication module Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA Supported Storage 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices Audio 1x Front Audio (JAUD) Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0) Others Special Features LED FEATURE: 4x EZ Debug LED Warranty Information Manufacturing Warranty 3 years MSI MAG Z790 TOMAHAWK WIFI 12th and 13th Gen ATX Motherboard MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard is equipped with an Intel Z790 chipset and LGA 1700 socket. This ATX motherboard has four DDR5 RAM slots supporting dual channel memory and speeds up to 7200 MHz when overclocked. Seven SATA III and four M.2 interfaces provide ample room for storage and support RAID 0, 1, 5, and 10. Install GPUs or other adapter cards via PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 3.0 x1 slots. Take advantage of fast networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; connect to wireless peripherals with ease using Bluetooth 5.2. The Realtek ALC4080 audio codec supports 7.1 channel surround sound, while rear ports allow for analog or digital output. Connect wired peripherals via four USB 3.2 Gen 1 and four Gen 2 Type-A ports, or via USB 3.2 Gen 2 and 2x2 Type-C ports. Output video via DisplayPort and HDMI. The rear I/O panel also sports Clear CMOS and Flash BIOS buttons. Internal headers provide support for front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connectors, chassis intrusion, a TPM module, and more. Wi-Fi 6E supports the 6 GHz spectrum, MU-MIMO, and BSS color technology and delivers speeds up to 2400 Mb/s. .. | Gigabyte Z790 AORUS ELITE AX 13th and 12th Gen DDR5 ATX Motherboard UNPARALLELED PERFORMANCE With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming. OUTSTANDING THERMAL DESIGN GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance. CONNECTIVITY GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity. PERSONALIZATION GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality. ULTRA DURABLE GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable. .. | Asus ROG STRIX B850-G GAMING WIFI mATX MotherboardAsus ROG STRIX B850-G GAMING WIFI mATX Motherboard is designed for gamers and performance enthusiasts seeking cutting-edge features in a compact micro-ATX form factor. Supporting AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors on the latest AMD B850 chipset, this motherboard ensures powerful performance and future-proof compatibility. It features robust memory support with 4 DDR5 DIMM slots, allowing up to 256GB of RAM with speeds up to 8000+ MT/s (OC). Graphics options include both HDMI 2.1 and DisplayPort 1.4 outputs, supporting resolutions up to 8K. Storage expansion is flexible, with four M.2 slots supporting PCIe 4.0 and 5.0, alongside two SATA 6Gb/s ports, allowing fast storage setups and RAID configurations. For connectivity, the ROG STRIX B850-G includes Intel 2.5Gb Ethernet, Wi-Fi 7 (802.11be), and Bluetooth 5.4, offering ultra-fast network speeds and seamless wireless connections. The motherboard features premium audio powered by Realtek ALC1220P 7.1 Surround Sound with SupremeFX Shielding, ensuring high-fidelity sound for gaming and entertainment. It also comes equipped with ASUS-exclusive innovations like Q-Design features, BIOS FlashBack, AI Overclocking Guide, and comprehensive cooling solutions such as VRM and M.2 heatsinks. Bundled software like ROG CPU-Z, Armoury Crate, Dolby Atmos, and free trials for Adobe Creative Cloud and Norton 360 enhance usability.Features Of Asus ROG STRIX B850-G GAMING WIFI mATX MotherboardSupports AMD Ryzen 9000, 8000, and 7000 Series Desktop ProcessorsAMD B850 Chipset with micro-ATX form factor (24.4 cm x 24.4 cm)4 x DDR5 DIMM slots, up to 256GB RAM, 8000+ MT/s (OC)4 x M.2 slots (PCIe 4.0 & 5.0) and 2 x SATA 6Gb/s portsIntel 2.5Gb Ethernet and Wi-Fi 7 (802.11be), Bluetooth 5.4Realtek ALC1220P 7.1 Surround Sound with SupremeFX ShieldingHDMI 2.1 and DisplayPort 1.4 outputs, supports up to 8K display1 x PCIe 5.0 x16 slot with SafeSlot reinforcementASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-LED IndicatorsASUS Thermal Solution with VRM and M.2 heatsinksAI Overclocking Guide, AI Cache Boost, Fan Xpert 4BIOS FlashBack, Clear CMOS button, pre-mounted I/O shieldAura Sync RGB with Addressable Gen 2 headersBundled ROG and ASUS Exclusive Software including Armoury Crate, Dolby Atmos, AIDA64 Extreme Trial3 Years Manufacturing Warranty.. | Asus TUF GAMING B850-BTF WIFI W ATX MotherboardAsus TUF GAMING B850-BTF WIFI W ATX Motherboard is engineered for gamers, PC builders, and enthusiasts seeking reliability, performance, and advanced connectivity. Built on the AMD B850 chipset, it supports the latest AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors with AMD Socket AM5. This motherboard offers robust support for DDR5 memory up to 256GB and speeds over 8000+ MT/s (OC), making it ideal for gaming and content creation. Designed with an ATX form factor, the TUF GAMING B850-BTF WIFI W features high-end components including Realtek ALC1220P 7.1 surround sound audio, providing rich, immersive sound for both gaming and entertainment. Storage options are abundant with 3 x M.2 slots (supporting PCIe 5.0/4.0) and 4 x SATA 6Gb/s ports, alongside RAID support for improved data security and speed. Connectivity is future-ready with Wi-Fi 7, 2.5Gb Ethernet LAN, and up to 17 USB ports (rear and front), including USB 20Gbps Type-C. The board also integrates HDMI 2.1 and DisplayPort 1.4 for high-resolution video output. ASUS’s signature TUF Protection ensures durability through features like SafeSlot, stainless-steel back I/O, and ESD guards. Q-Design elements such as M.2 Q-Latch and PCIe Slot Q-Release make building and upgrading simpler. Bundled with ASUS-exclusive software like Armoury Crate, Fan Xpert 4, and DTS Audio Processing, the TUF GAMING B850-BTF WIFI W offers an all-around solution for high-performance and durable PC builds backed by a 3-year warranty.Features Of Asus TUF GAMING B850-BTF WIFI W ATX MotherboardSupports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors (Socket AM5)AMD B850 Chipset with advanced performance and connectivity4 x DDR5 DIMM slots, supporting up to 256GB memory and 8000+ MT/s (OC)1 x PCIe 5.0 x16 slot for high-speed graphics card support3 x M.2 slots with PCIe 5.0/4.0 support and 4 x SATA 6Gb/s portsIntegrated Wi-Fi 7 (802.11be) and Bluetooth 5.4 for ultra-fast wireless networkingRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODECRear and front USB ports including USB 20Gbps Type-C, USB 10Gbps, USB 5Gbps, and USB 2.0Realtek 2.5Gb Ethernet LAN with TUF LANGuard protectionASUS TUF Protection features including SafeSlot, DIGI+ VRM, ESD Guards, and stainless-steel back I/OASUS Q-Design features: M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-AntennaPre-mounted I/O shield and BIOS FlashBack button for easy DIY setupAura Sync RGB lighting support with Addressable RGB Gen 2 headersBundled ASUS software: Armoury Crate, Fan Xpert 4, TurboV Core, DTS Audio Processing3 Years Manufacturing Warranty.. |
