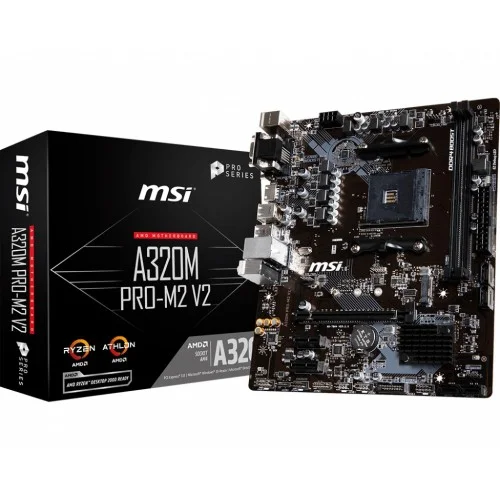

MSI A320M PRO-M2 V2 AM4 AMD Motherboard

MSI A320M PRO-M2 V2 AM4 AMD Motherboard

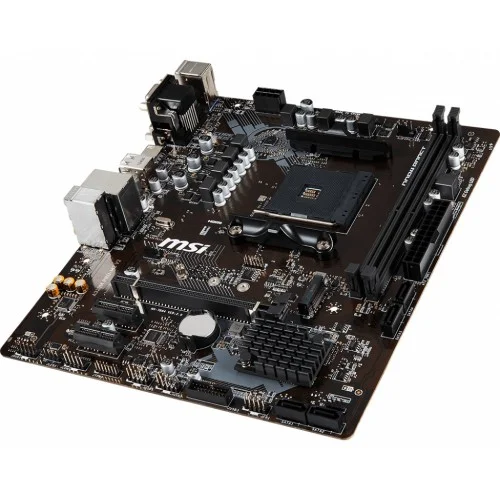

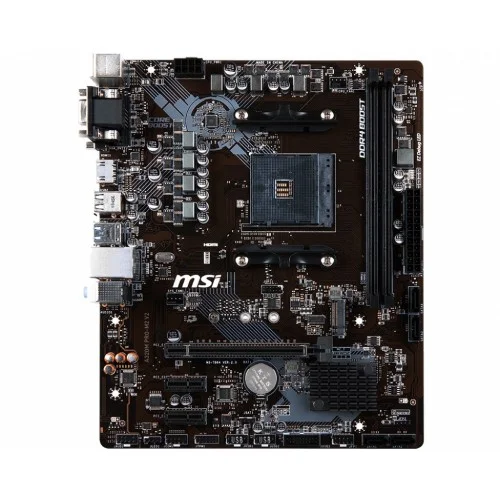

The MSI A320M PRO-M2 V2 AM4 AMD Motherboard is a MSI’s entry-level gaming kit. Its PCIe configuration and layout with a single full-length PCIe 3.0 x16 slot and two PCIe 2.0 x1 slots. This board have onboard audio and network controllers with the Realtek ALC892 8-channel audio codec and Realtek 8111H Gigabit LAN controller both being featured. The visuals are dominated by a black PCB with an industrial looking grey pattern printed on. It supports for DDR4 and have a total of two memory slots meaning up to a maximum of 32 GB of system memory can be installed. Its Supports 1st & 2nd AMD Ryzen .It has also HDMI, VGA & DVI-D port. MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want. Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

Basic Information
Supported CPU	Supports AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics and A-series / Athlon X4 Processors for Socket AM4
Chipset	AMD B450 Chipset
Form Factor	m-ATX
Expansion Slots
PCI	1 x PCIe 3.0 x16 slot - Supports x16 speed with AMD Ryzen 1st and 2nd Generation processors - Supports x8 speed with AMD Ryzen with Radeon Vega Graphics and A-series/Athlon X4 processors - Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors 2 x PCIe 2.0 x1 slots
M.2 Socket	1 x M.2 slot (Key M) - Supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics and A-series /Athlon™ X4 Processors) and SATA 6Gb/s - Supports 2242/ 2260 /2280 storage devices
Memory
Type	DDR4
Slots	2
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz1 Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory
Maximum Memory	32GB
Graphics

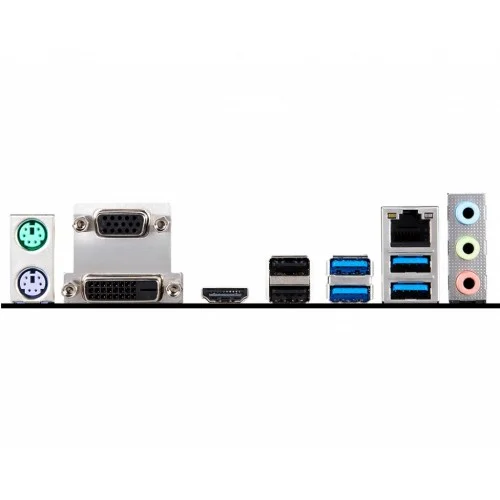

Graphics	1 x VGA port, supports a maximum resolution of 2048x1280@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160@24Hz Only support when using Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics and A-series processors.
Max Shared Memory	Maximum shared memory of 2048 MB
Connector & Ports
HDMI	Yes (1 x HDMI )
DVI-D (s)	Yes
USB (s)	AMD A320 Chipset : 2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) AMD processor : 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s)	1 x Realtek RTL8111H Gigabit LAN controller
Supported Storage	AMD A320 Chipset : 4 x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics and A-series /Athlon X4 Processors) and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices
Audio	7.1-Channel High Definition Audio
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x LED strip connector 1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty	03 Years Warranty
Others
Special Features	DIRECTX : 12 VGA : Yes DIMENSIONS :9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
