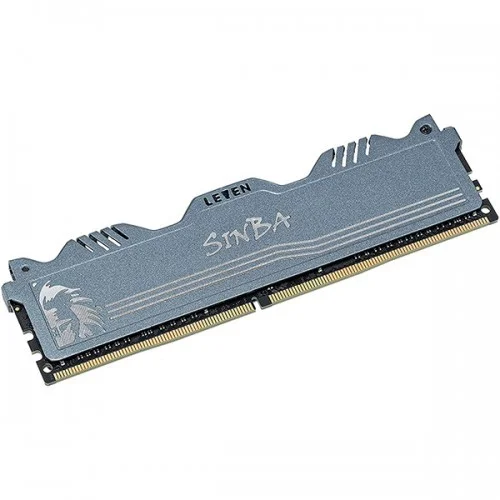

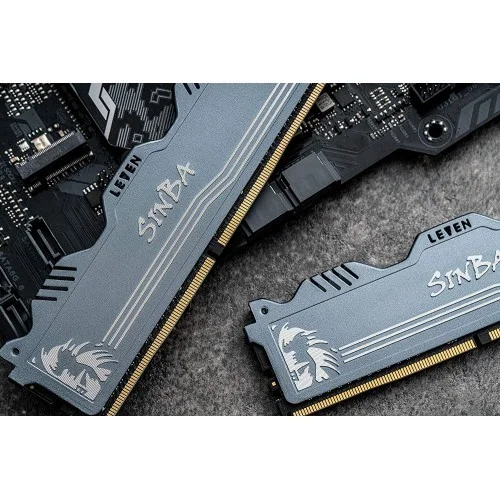

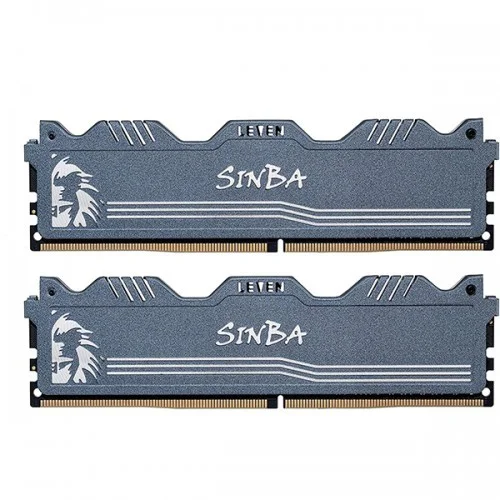

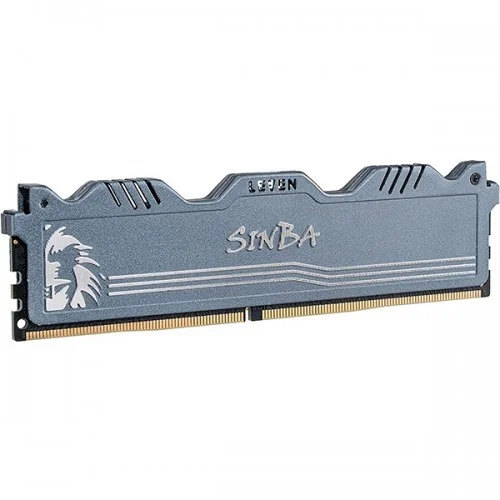

LEVEN SINBA 8GB DDR4 3200MHz Gaming Desktop RAM
Ramp up your gaming experience by installing the LEVEN SINBA 8GB Gaming Desktop Memory Kit into your desktop computer. Featuring a low-profile design for small form factor systems, the 8GB memory kit includes 288-pin DDR4-3200 MHz non-ECC unbuffered DIMMs (UDIMM) to help drive your games and applications. Increased memory will help complex games and large files load faster. The extra space also allows you to run demanding applications, multitask, and edit large photos and videos more efficiently. This memory kit has 16-18-18-38-2N latency timings, a 1.35V voltage requirement, and is tested to work with both AMD and Intel motherboards. It also includes XMP 2.0 support, which allows for easy overclocking for even higher performance. This memory module is protected by a lifetime warranty.
Specification:
Specification
Module type: UDIMM
Module specification: 288-pin
Memory Type: DDR4
Capacity: 8GB (8GBx1)
Tested Speed: 3200MHz
Heat sink type: Aluminum Heatsink
Single/Dual sticks: Single
Tested Latency: 16-18-18-38-2N
Tested Voltage: 1.35v
Registered/Unbuffered: Unbuffered
Error Checking: Non-ECC
SPD Voltage:1.20v
Dimensions(W x H x D): 144 x 52 x 9 mm
Weight: ≤60g
Certification: CE, SGS, ROHS, KC, FC
Features
Designed For High-performance Overclocking
Compatibility Tested
Xmp 2.0 Support
Aluminum Heat Spreader
Selected Best Quality Ic Chips
Low-profile Design
Match Your System
World-famous Reliability
Qvl Approved By All Mainstream Motherboard Manufacturers.
Motherboard Manufacturers.
Optimized Ddr4 Performance For AMD Ryzen
.. |
Adata 4GB DDR3 1333MHz Desktop Ram
The Adata 4GB DDR3 1333MHz Desktop Ram module is a 512Mx72 bits 4GB(4096MB) DDR3-1333(CL9)-9-9-24 SDRAM memory module. The SPD is programmed to JEDEC standard latency 1333Mbps timing of 9-9-9-24 at 1.35V. Adata 4GB DDR3 1333MHz module is composed of eight-teen 256Mx8 bits CMOS DDR3 SDRAMs in FBGA package and one 2Kbit EEPROM in 8pin TDFN package on a 240pin glass–epoxy printed circuit board. Adata 4GB DDR3 1333MHz module is a Dual In-line Memory Module and intended for mounting onto 240-pins edge connector sockets. Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible on both edges of DQS. Range of operating frequencies, programmable latencies and burst lengths allow the same device to be useful for a variety of high bandwidth, high-performance memory system applications.
Adata 4GB DDR3 1333MHz Desktop Ram Review
Purchased this for an older Biostar motherboard mATX. Was not sure it would match its predecessor memory of the same bandwidth and speed etc. But it did and now I have 8 gigs of solid working memory. Boosted system performance significantly. Would recommend!
Good memory at a good price. Despite it's different look, it perfectly matched the other 4GB ADATA stick with heat spreader that I had, allowing me to easily upgrade my workstation to 8GB. Working at 1333MHz @ 9-9-9-24 with no issues.
As other reviews already state, this RAM does its' job. The price is great, and despite being a lower frequency than other choices there isn't a performance difference. This is great RAM for cheap, I'd recommend it to anyone.
Specifications
Power supply (Normal): VDD & VDDQ = 1.35V (1.283V to 1.45V)
Backward-compatible to VDD=+1.5V+-0.075V
MRS Cycle with address key programs
- CAS Latency (6,7,8,9)
- Burst Length (BL):8 and 4 with Burst Chop(BC)
Bi-directional, differential data strobe (DQS and /DQS)
Differential clock input (CK, /CK) operation
DLL aligns DQ and DQS transition with CK transition
Double-data-rate architecture; two data transfers per clock cycle
8 independent internal bank
Internal (self) calibration: Internal self calibration through ZQ pin (RZQ:240 ohm±1%)
Auto refresh and self refresh
Average Refresh Period 7.8us at lower then TCASE 85°C, 3.9us at 85°C < TCASE ≤ 95°C
8-bit pre-fetch.
On Die Termination using ODT pin.
On-board I2C temperature sensor with integrated serial presence-detect (SPD) EEPROM.
EEPROM software write protect.
Lead-free products are RoHS Compliant
.. |
SpecificationSSDCapacity(GB)128GBForm FactorM.2 2280Interface TypePCI-E Gen3 X4MTBF1 Million HoursSequential R/WRead Speed: 2400~2700MB/S· Write Speed: 1900~2000MB/SFlash Type3D TLCDimensionL80.0mm*W22.0mm*H2.1mm ±0.15mmOperating Temperature0℃--+70℃Storage Temperature-20℃--+75℃Warranty3 YearsKingSpec NE 128GB NVMe M.2 2280 PCIe SSDThe KingSpec NE 128GB NVMe M.2 2280 PCIe SSD comes with 128GB capacity. It offers fast and continuous read-write speeds to help you improve working efficiency, gaming experience, and graphics quality. The KingSpec NE comes with 5 layer graphene copper foil heat sink to make more excellent performance. This SSD features Exclusive 3D NAND Firmware Technology, which is a Strict selection of stable and high-performance 64-layer 3D NAND flash memory and high-performance main control chips, achieving enhanced performance and stability. KingSpec NE SSD comes with a High-level LDPC Debugging Mechanism, that ensures the accuracy of data transmission, protects data security, and extends the using life. The KingSpec NE 128GB NVMe M.2 2280 PCIe SSD has 3 years of warranty... |
