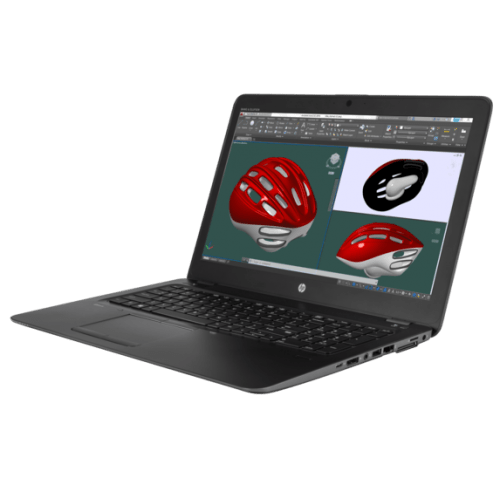

HP Zbook 15u G3 Core-i7 Mobile Workstation

Preinstalled

Windows 10 Pro 64

Windows 10 Home 64

Windows 7 Professional 64

Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro)

FreeDOS 2.0

Supported OS

Windows 8.1 Enterprise 64

Windows 8.1 Pro 64

Windows 7 Enterprise 32

Windows 7 Enterprise 64

Windows 10 Enterprise 64

Processor

6th Generation Intel Core i7 6600U (2.6 GHz, 4 MB cache, 2 cores) Up to 3.4 GHz with Intel Turbo Boost Technology

6th Generation Intel Core i7 6500U (2.5 GHz, 4 MB cache, 2 cores) Up to 3.1 GHz with Intel Turbo Boost Technology)

6th Generation Intel Core i5 6300U (2.4 GHz, 3 MB cache, 2 cores) Up to 3.0 GHz with Intel Turbo Boost Technology

6th Generation Intel Core i5 6200U (2.3 GHz, 3 MB cache, 2 cores) Up to 2.8 GHz with Intel Turbo Boost Technology)

Chipset

Non-applicable, processor-specific

Intel Core i5 with vPro/Core i7 with vPro Technology Capable

Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with select processors, an Intel Centrino Advanced-N or Ultimate-N WLAN module and a preinstalled Windows operating system. It provides advances in remote manageability, security, energy-efficient performance, and wireless connectivity. Intel Active Management Technology (iAMT) offers built-in manageability and proactive security for networked notebook PCs, even when they are powered off or when the operating system is inoperable. It can help identify threats before they reach the network, isolate infected systems, and update PCs regardless of their power state.

Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (non-VPN) corporate network connection which is either cable or wireless LAN.

NOTE:

Some functionality of this technology, such as Intel Active management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Availability of future virtual appliances applications for Intel vPro technology is dependent on 3rd party software providers. Microsoft Windows required.

Integrated

Intel HD 5500 Graphics

AMD FirePro W4190M (2 GB dedicated GDDR5)

Microsoft DirectX 12 (Shader Model 5.0) and OpenGL 4.4 capable

AMD Enduro Technology supported

Internal

15.6 in diagonal LED-backlit FHD UWVA IPS eDP anti-glare + PSR(Panel Self Refresh) (1920 x 1080)

15.6 in diagonal LED-backlit FHD SVA eDP anti-glare (1920 x 1080)

15.6 in diagonal LED UHD UWVA IPS anti-glare (3840 x 2160)

15.6 in diagonal Touch LED-backlit FHD SVA (1920 x 1080)

External

Up to 30-bit (2^30) per pixel "Deep Color"

(total of 1,073,741,824 color variations)

VGA

Port supports resolutions up to 1920 x 1200 external resolution at 60 Hz and lower resolutions up to 75 Hz.

DisplayPort features

Supports resolutions up to UHD 3840 x 2160, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors, with 24/30-bit color depth up to 120 Hz

Resolutions are dependent upon monitor capability, and resolution and color depth settings.

DVI-D (single link)

DVI support requires a DP-to-DVI adapter (sold separately). Dual-Link DVI is supported with an active USB powered adapter (sold separately).

NOTE:

Resolutions are dependent upon monitor capability, and resolution and color depth settings.

Primary storage SATA, 2.5 in hard drive

1 TB 5400 rpm hard drive

500 GB 7200 rpm hard drive

500 GB 7200 rpm self-encrypting drive (Opal 2)

500 GB 7200 rpm self-encrypting drive FIPS-140-2 compliant

500 GB 5400 rpm hybrid drive (8 GB cache)

M.2 SATA solid-state drive

128 GB SATA-3 TLC solid-state drive (available in 1H16)

M.2 SATA SED SSD

256 GB SATA-3 Self-Encrypting (Opal 2) MLC Solid State Drive

HP Z Turbo Drive (NVMe PCIe SSD)

256 GB PCIe NVMe solid-state drive

512 GB PCIe NVMe solid-state drive

HP 3D DriveGuard (Windows only)

The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive

NOTE:

For solid state drives or hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for Windows 7) and up to 30 GB (for Windows 8.1 and 10) is reserved for system recovery software.

Drive controllers

2.5 in storage bays and M.2 storage bay (SATA): SATA-3 for HDD and SATA-3 for SSD

HP Z Turbo Drive: PCIe NVMe SSD

Standard

32 GB DDR4 1.35V Non-ECC SDRAM (Transfer rates up to 2133MT/s)

Two SODIMM slots supporting dual-channel memory

4 GB, 8 GB and 16 GB SODIMMs

Maximum

Upgradeable to 32768 MB with optional 16384 MB SODIMMs in 2 slots

Dual-channel

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

NOTE:

Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

Communications

Integrated Intel I219-LM Gigabit Network Connection (vPro configurations)

Intel WGI219V 10/100/1000 Ethernet (no-vPro configurations)

Wireless

Secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth is also available (factory configurable only) combined with the supported wireless LAN option.

802.11 Wireless LAN

Intel Dual Band Wireless-AC 8260 802.11 a/b/g/n/ac (2x2) Wi-Fi + Bluetooth 4.2 Combo Adaptor (vPro)

Intel Dual Band Wireless-AC 8260 802.11 a/b/g/n/ac (2x2) Wi-Fi + Bluetooth 4.2 Combo Adaptor (non-pro)

Intel Dual Band Wireless-AC 3165 802.11 ac (1x1) Wi-Fi and Bluetooth 4.0 Combo Adapter (non-pro)

Wireless WAN - Mobile Broadband

HP lt4120 Qualcomm Snapdragon X5 LTE Mobile Broadband Module

HP hs3110 HSPA+ Intel Mobile Broadband Module

Audio

Audio by Bang & Olufsen

Integrated stereo speakers

Integrated microphone (dual-microphone array when equipped with optional webcam)

Button for volume mute; function keys for volume up and down

Combo mic-in / stereo headphone-out jack

Webcam

HD format (widescreen)

Supports videoconferencing and still image capture

High quality fixed focus lens

Video capture at various resolutions up to 1280 x 720 resolution (720p) and up to 30 fps

M-JPEG compression supports higher frame rates for video capture and video conferencing

Improved low light sensitivity

Improved dynamic range

BIOS

HP BIOSphere

NOTE:

Available only on business PCs with HP BIOS.

HP SureStart with Dynamic Protection

HP DriveLock, HP Automatic DriveLock

HP BIOS Protection

NOTE:

May require a manual recovery step if all copies of BIOS are compromised or deleted.

BIOS Update Via Network

Master Boot Record Security

Power On Authentication

Pre-boot Security

HP SpareKey

Secure Erase

NOTE:

For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88.

Hybrid Boot

Measure boot

Secure Boot

Absolute Persistence Module

Pre-boot Authentication

Multimedia

Cyberlink Power DVD, BD (supports file playback)

Cyberlink YouCam BE (Windows 7 only)

Communication

HP GPS and location (Windows 7 only)

NOTE:

GPS access requires an unobstructed path to multiple satellites. Performance may be affected if/when used inside of buildings, bridges or heavily congested metropolitan areas. Requires separately purchased GPS navigation software available from multiple GPS applications.

HP Connection Manager with support for HP Mobile Connect Pro (Windows 7 only)

HP Mobile Connect Pro (Windows 8.1 Windows 10 only)

NOTE:

Intel Wireless Display (Wi-Di) Software for Windows

Native Miracast support

NOTE:

Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming media players that also support Miracast. You can use Miracast to share what you’re doing on your PC and present a slide show.

HP value add software

HP 3D DriveGuard

HP ePrint Driver

NOTE:

Requires an Internet connection to HP web-enabled printer and HP ePrint account registration. Requires optional broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary.

HP Hotkey

HP Recovery Manager

HP Recovery Disc Creator

HP Registration App (Windows 8.1 only)

HP Support Assistant

HP Noise Reduction Software

HP Performance Advisor

HP Remote Graphics Software

HP Velocity

3rd Party

Foxit PhantomPDF Express for HP

Microsoft products

Buy Office

Bing Search

Skype

NOTE:

Skype is not offered in China.

Manageability

• HP Driver Packs
• HP SoftPaq Download Manager (SDM)
• HP System Software Manager (SSM)
• HP BIOS Config Utility (BCU)
• HP Client Catalog
• HP CIK for Microsoft SCCM
• HP Image Assistant
• LANDESK Management

Client security software

HP Client Security

• HP Security Manager (including Credential Manager and Password Manager)
• HP Drive Lock
• HP Fingerprint Sensor
• HP Password Manager
• Absolute Persistence Module
• Power On Authentication

Microsoft Security Essentials

NOTE:

Opt in and internet connection required for updates.

Microsoft Defender

Standard

Trusted Platform Module (TPM ) 1.2 Embedded Security Chip (Common Criteria EAL4+ Certified). Field upgradeable to TPM 2.0

HP Fingerprint Reader

Power supply

HP 65 W Slim Smart AC Adapter

Primary battery

HP 3-cell long-life polymer battery (46 WHr)

Battery life

TBD

Power conservation

AMD Enduro Technology

Hibernation

Standby

ACPI compliance

Weight

Starting at 1.89 kg (4.18 lb)

Dimensions (W x D x H)

383.3 x 257.7 x 19.9 mm (15.09 x 10.15 x 0.78 in)

Ports

(1) VGA

(1) USB 3.0 charging port

(1) Security lock slot

(1) USB 3.1 Gen 1

(1) USB 3.0 port

(1) DisplayPort 1.2

Headphone/microphone combo

RJ-45 / Ethernet

Side docking connector

Power connector

Slots

External SIM slot

SD media reader slot supports SD, SDHC, SDXC

Internal card expansion

(1) SD UHS-II Flash media slot – Supports next-generation SD (Secure Digital), backward compatible to SDHC, SDXC

(1) Integrated Smart Card Reader (Compatible with ISO 7816 compliant Smart Cards PC/SC interface support)
