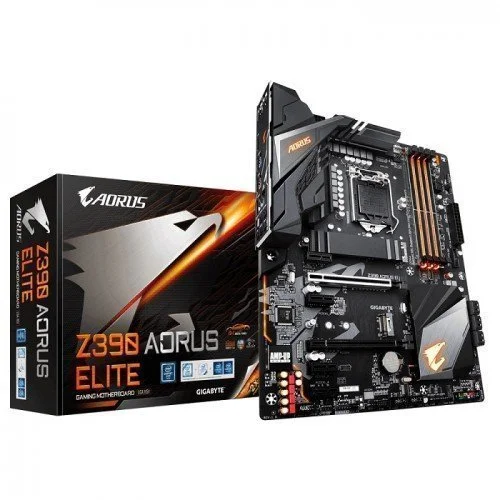

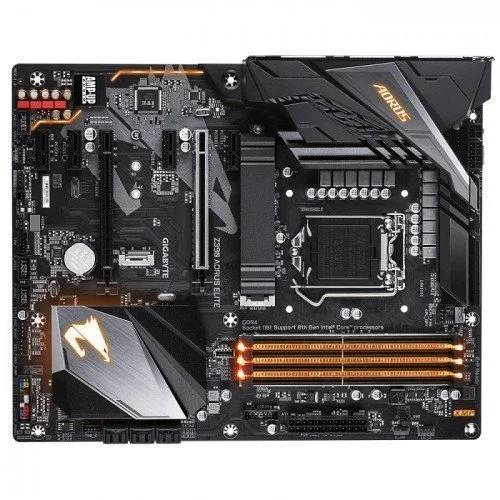

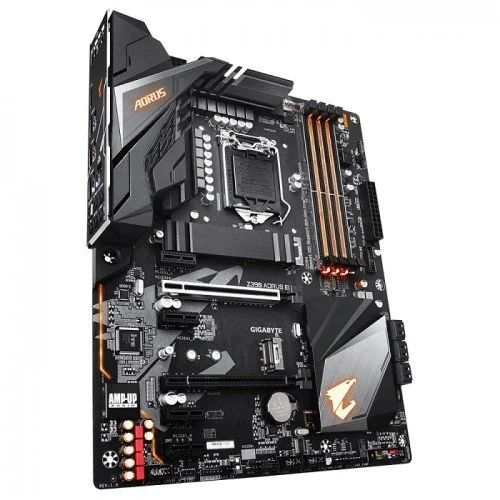

Gigabyte Z390 Aorus Elite 9th Gen Motherboard

Name: Gigabyte Z390 Aorus Elite 9th Gen Motherboard
Brand: GIGABYTE
Availability: OutOfStock

Out Of Stock

Gigabyte Z390 Aorus Elite 9th Gen Motherboard

Stock: Out Of Stock
Model: Model-2833
Product id: 16862

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports 9th and 8th Gen Intel Processors • Intel® Z390 Express Chipset • Dual Channel Non-ECC Unbuffered DDR4 • Front USB 3.1 Gen 2 Type-C™ Header

Gigabyte Z390 Aorus Elite 9th Gen Motherboard

10Gigabyte Z390 AORUS Elite Motherboard with 12 Phases Digital VRM Solutions, Screw Mounted Heatsinks, RGB Fusion, Dual M.2 with Single Thermal Guard, Intel® GbE LAN with cFosSpeed, Front USB 3.1 Gen 1 Type-C™.It Supports 9th and 8th Gen Intel® Core™ Processors.Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. Intel® Optane™ Memory Ready. 12+1 Phases Digital VRM Solution with DrMOS. Advanced Thermal Design with Screw Mounted Heatsinks. Mothboard has also ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors. Intel® Gigabit LAN with cFosSpeed. RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips, Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, Front USB 3.1 Gen 1 Type-C™ Header, Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface,CEC 2019 Ready, Save Power With a Simple Click

Specification:

Basic Information
Supported CPU	Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
Chipset	Intel® Z390 Express Chipset
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI	- 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, running at x4 (PCIEX4) - 4 x PCI Express x1 slots * The PCIEX4 slot shares bandwidth with the PCIEX1_3 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot operates at up to x2 mode.
M.2 Socket	2 x M.2 Socket 3 connectors
Memory
Type	4 x DDR4 DIMM sockets
Slots	Dual channel memory architecture
Supported Memory	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory	64 GB
Graphics
Graphics	1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory	1 GB
Connector & Ports
HDMI	1 x HDMI port

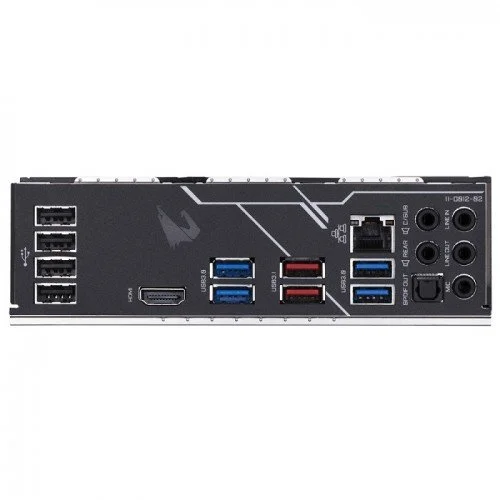

USB (s)	4 x USB 2.0/1.1 ports 4 x USB 3.1 Gen 1 ports 2 x USB 3.1 Gen 2 Type-A ports (red)
LAN Port (s)	Intel® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio	5 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan/water cooling pump headers 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt™ add-in card connector 1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty	03 Years
