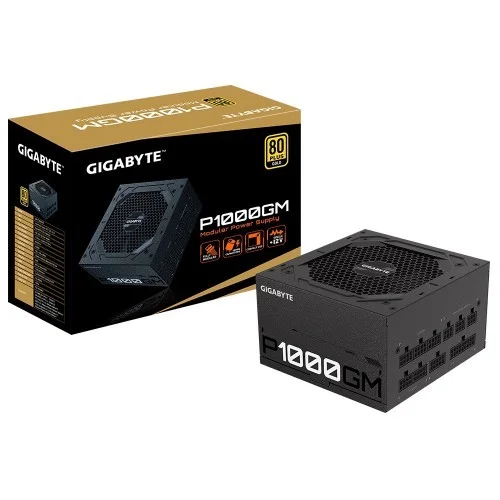

Gigabyte P1000GM 1000W 80 PLUS Gold Certified Power Supply

Gigabyte P1000GM 1000W 80 PLUS Gold Certified Power Supply

All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money. The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability. The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time. Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking. In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

Specifications:

Key Features
Continuous Power	1000W
Efficiency (Approx.)	9‎0% at typical load
Certification	80 PLUS Gold
Fan Size	20mm Smart Hydraulic Bearing (HYB) Fan
Input
Voltage	100-240 Vac (full range)
Frequency Range	60-50 Hz
Current	15-6.5 A
Output
Modular Type	Full Modular
Total Power	1000W

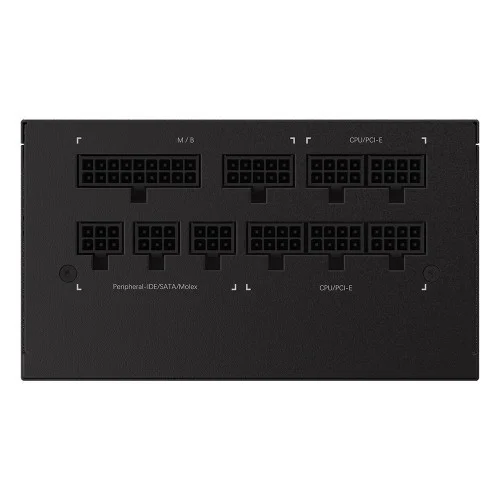

Connector
Main Power	20+4 Pin x 1 : 610mm x1
CPU	4+4 Pin x 2 : 600mm x2
PCI-E	6+2 Pin x 6 : 600mm + 150mm x3
SATA	SATA x 8 : 600mm + 150mm + 150mm + 150mm x2
Floppy	4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm + 120mm + 120mm + 120mm x1
Warranty Information
Manufacturing Warranty	5 Years
