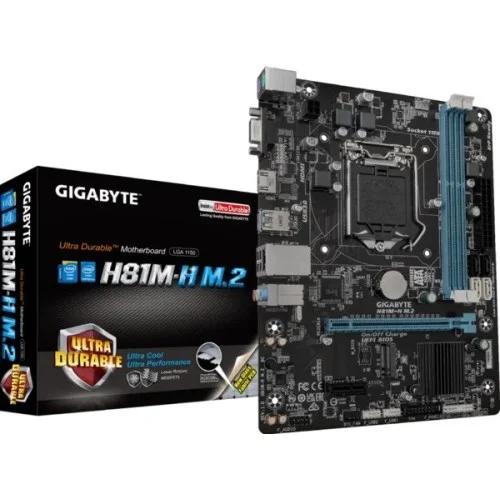

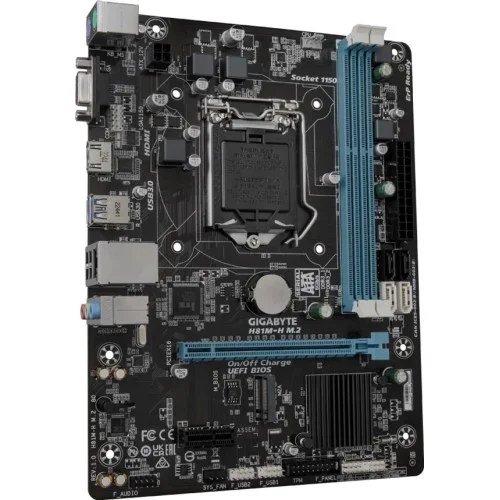

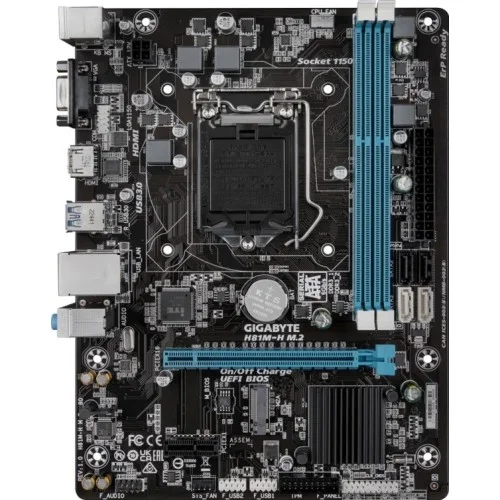

Gigabyte H81M-H M.2 (Rev. 1.0) Motherboard

Gigabyte H81M-H M.2 (Rev. 1.0) Motherboard

The Gigabyte H81M-H M.2 (Rev. 1.0) is a compact Micro ATX motherboard designed for 4th Generation Intel processors using the LGA1150 socket. Built around the Intel H81 Express Chipset, it supports Intel Core i7, Core i5, Core i3, Pentium, and Celeron processors. For Bangladeshi users looking to build or upgrade a practical desktop with an older compatible Intel platform, this motherboard provides a useful combination of essential connectivity, storage options, and everyday reliability.

Processor and Memory Support

This Gigabyte H81M-H M.2 motherboard supports a wide range of LGA1150 Intel processors, making it suitable for office computers, home PCs, educational setups, browsing systems, and budget-friendly desktop builds. It features two DDR3 DIMM slots with support for up to 16GB of system memory. DDR3 1600MHz and 1333MHz modules are supported, along with dual-channel memory architecture and non-ECC memory. XMP memory modules are also supported for compatible configurations.

M.2 and Multiple Storage Options

One of the key advantages of this H81 motherboard is its built-in M.2 connector. The Socket 3 M-key connector supports 2280 SATA and PCIe 2.0 x4/x2 SSD configurations, allowing users to install a compatible M.2 SSD without depending entirely on traditional SATA storage. It also includes two SATA 6Gb/s connectors and two SATA 3Gb/s connectors for additional storage devices. This makes the board practical for users who want faster system storage while retaining HDD or SATA SSD support.

Display, Networking and Expansion

The motherboard provides integrated Intel HD Graphics support through HDMI and D-Sub outputs. The HDMI port supports resolutions up to 4096x2160 with HDMI 1.4a, while the D-Sub output supports up to 1920x1200, depending on the installed processor and configuration. A PCI Express x16 slot is available for users who want to install a compatible dedicated graphics card, while an additional PCI Express x1 slot provides room for supported expansion devices.

For networking, the board uses a Realtek Gigabit LAN controller supporting 10/100/1000 Mbps connections. This is suitable for regular broadband internet, online classes, office work, file transfers, and other everyday networking requirements. Realtek High Definition Audio also provides support for multi-channel audio configurations.

Connectivity and Practical Features

The rear I/O includes PS/2 keyboard and mouse ports, HDMI, D-Sub, USB 3.0/2.0 ports, USB 2.0/1.1 ports, RJ-45 LAN, and three audio jacks. Internal headers provide additional USB connectivity, fan connections, front-panel audio, and other essential connections for desktop assembly.

GIGABYTE's UEFI BIOS and Q-Flash support make BIOS management more convenient, while hardware monitoring features can detect voltage, temperature, and fan speed. The board also includes overheating and fan-failure warnings, helping users monitor the basic operating condition of the system. Its Micro ATX form factor measures 23.0cm x 17.5cm, making it suitable for compact desktop cases.

Who Should Buy This Motherboard?

The Gigabyte H81M-H M.2 is particularly suitable for Bangladeshi buyers who already have, or plan to use, a compatible 4th Generation Intel processor and DDR3 RAM. It can be a practical choice for students, office users, home users, small businesses, and budget-conscious PC builders. For customers upgrading an older LGA1150 computer, the built-in M.2 support can also provide a convenient way to improve storage performance without replacing the entire platform.

For buyers comparing motherboard options online, Creatus Computer provides a convenient source for checking product availability and purchasing computer hardware in Bangladesh. Before ordering, users should verify CPU, RAM, SSD, case, and power-supply compatibility to ensure a smooth installation.

Why Choose Gigabyte H81M-H M.2?

With LGA1150 processor support, dual-channel DDR3 memory, M.2 storage compatibility, Gigabit LAN, HDMI, D-Sub, PCI Express expansion, and a compact Micro ATX design, the Gigabyte H81M-H M.2 offers the essential features required for a dependable everyday desktop. Its practical feature set makes it a sensible option for users who want to extend the usable life of a compatible Intel-based system while keeping the overall upgrade cost under control. Creatus Computer can be a suitable destination for Bangladeshi customers looking for computer components and motherboard purchasing options.

1. What is the Gigabyte H81M-H M.2 motherboard price in Bangladesh?

The price can vary depending on current stock, market conditions, warranty terms, and seller offers. Check the latest listed price before placing your order.

2. Is the Gigabyte H81M-H M.2 compatible with my processor and RAM?

This motherboard uses the LGA1150 socket and supports compatible 4th Generation Intel Core, Pentium, and Celeron processors. It supports DDR3 memory up to 16GB across two DIMM slots. Confirm your exact CPU and RAM model before purchase.

3. Does the Gigabyte H81M-H M.2 support an M.2 SSD?

Yes. It includes an M.2 Socket 3 connector supporting compatible 2280 SATA and PCIe 2.0 x4/x2 SSD configurations. Buyers should verify their M.2 SSD type before installation.
