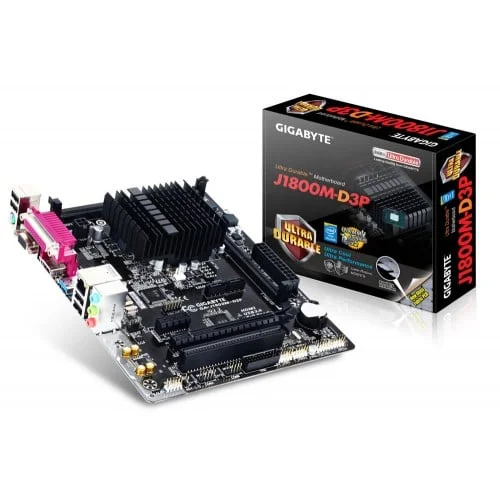

GIGABYTE GA-J1800M-D3P Motherboard
GIGABYTE GA-J1800M-D3P Motherboard
- Stock: In Stock
- Model: GA-J1800M-D3P
- Product id: 17496
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- • Intel Dual-Core Celeron J1800 SoC (2.41 GHz) • 2 x DDR3 DIMM Dual Memory • 1 x PCI Express x16 slot, running at x1 • 2 x SATA 3Gb/s connectors
Quick Compare
| Product Details | ||||
| Product | GIGABYTE GA-J1800M-D3P Motherboard | UNIKA UN-H311M VH DDR4 SNIPER DDR4 6th/7th/8th/9th Gen Micro ATX Motherboard | Biostar A520MH DDR4 AMD AM4 Socket Motherboard | UNIKA UN-H510M PRO V6 SNIPER DDR4 10th/11th Gen Micro ATX Motherboard |
| Image |  |
 |
 |
 |
| Price | 6,400৳ | |
|
|
| Model | GA-J1800M-D3P | UN-H311M VH | Biostar A520MH | UN-H510M PRO V6 SNIPER |
| Brand | GIGABYTE | UNIKA | BIOSTAR | UNIKA |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | GIGABYTE GA-J1800M-D3P Motherboard Built-in Intel® Celeron™ J1800 (2.41 GHz) Dual-Core processor GIGABYTE Ultra Durable™ Technology Dual channel DDR3/-L UDIMM slot support Audio Noise Guard with High Quality Audio Capacitors All Solid Capacitors with Humidity Protection New Glass Fabric PCB design LAN with high ESD Protection HDMI, D-SUB ports on rear panel GIGABYTE On/Off Charge for USB devices PCIe and PCI interface for wide-range expansion card selections USB Integrated in the SoC: 1 x USB 3.0/2.0 port on the back panel SoC + GL850 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 2 x serial port headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x parallel port 1 x USB 3.0/2.0 port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller iTE I/O Controller Chip 03 Years Warranty Specification: Motherboard Chipset Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz) Supported Processors Built in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 1 MB Cache Max Memory 2 x DDR3 DIMM sockets supporting up to 8 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3/-L 1333 MHz memory modules Support for non-ECC memory modules Onboard Video Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 2560x1600 1 x HDMI port, supporting a maximum resolution of 1920x1080 Onboard Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out Onboard LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Warranty 3 Years .. | UNIKA UN-H311M VH DDR4 SNIPER DDR4 6th/7th/8th/9th Gen Micro ATX MotherboardThe UNIKA UN-H311M VH DDR4 SNIPER is a versatile micro-ATX motherboard designed to offer a blend of affordability, compatibility, and functionality—making it ideal for budget-conscious builds, office PCs, or entry-level gaming setups. At its core, this board houses the reliable Intel H311M chipset, supporting a broad spectrum of 6th, 7th, 8th, and 9th generation Intel Core, Pentium, and Celeron processors via an LGA1151 socket. This compatibility ensures that users can pair it with a wide range of processors and easily upgrade within those CPU generations as needed. Memory support includes two DDR4 DIMM slots, accommodating up to 16 GB of RAM with speeds ranging from 2666 MHz up to 3000 MHz, depending on CPU limitations. This makes for smooth multitasking and adequate performance for general workloads. Expansion options are functional and practical. You get one PCIe x16 slot for a graphics card and an additional PCIe x1 slot for other peripherals. For storage, the board offers three SATA III (6 Gb/s) ports and a versatile M.2 slot, supporting modern NVMe SSDs (2242/2260/2280 form factors)—granting flexibility and quicker storage solutions. Connectivity living areas are well-rounded: The rear I/O includes DisplayPort, HDMI, and VGA outputs, allowing support for older and modern displays. You also get a mix of USB ports—including two USB 3.0 and four USB 2.0 at the rear—plus headers for expanding USB connectivity on the front of your case. On the networking and audio front, the board integrates a Gigabit Ethernet controller (Realtek 8111H) and uses Realtek ALC897 audio, delivering dependable connectivity and sound quality. Classic PS/2 ports are included for older keyboards and mice, useful for legacy peripherals. Power delivery follows standard convention with a 24-pin ATX connector plus an 8-pin CPU power input. The motherboard’s compact Micro-ATX form factor (170 × 220 mm) is a boon for smaller cases and minimalist builds. Additionally, it's backed by a three-year warranty, offering added peace of mind in terms of durability and supportFeatures of UNIKA UN-H311M VH DDR4 SNIPER DDR4 6th/7th/8th/9th Gen Micro ATX MotherboardCPU Compatibility: Equipped with an LGA1151 socket and powered by the Intel H310 chipset, this motherboard supports a wide range of Intel processors, including Core i7, i5, i3, Pentium, and Celeron from the 6th to 9th generation.Memory Support: It features two DDR4 DIMM slots, accommodating up to 16GB of RAM. The motherboard supports memory speeds of 2133, 2400, and 2666 MHz, ensuring smooth multitasking and responsiveness.Expansion Slots: The board includes one PCIe 3.0 x16 slot for graphics cards, ensuring compatibility with a variety of GPUs. Additionally, it has one PCIe 2.0 x1 slot for other expansion cards, providing flexibility for future upgrades.Storage Options: Users have access to three SATA III 6Gb/s ports for traditional hard drives and SSDs. The motherboard also includes an M.2 slot supporting 2242/2260/2280 type storage devices, allowing for faster data transfer rates and improved system performance.Display Outputs: For integrated graphics, the UN-H311M VH offers multiple video outputs, including VGA, HDMI, and DisplayPort, catering to various display setups and preferences.USB Ports: The rear I/O panel is equipped with two USB 3.0 ports and four USB 2.0 ports, providing ample connectivity options for peripherals. Additionally, internal headers are available for front-panel USB connections.Networking and Audio: Onboard, the motherboard features a Realtek 8111H Gigabit Ethernet controller for reliable wired networking. For audio, it utilizes the Realtek ALC897 codec, delivering high-fidelity sound suitable for most users.Form Factor and Power: With its micro-ATX form factor, the UN-H311M VH is compact yet offers sufficient expansion capabilities. It requires a 24-pin ATX power connector and an 8-pin CPU power connector, ensuring stable power delivery to all components... | Specification Motherboard Supported CPU Socket AM4 Support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) Processors And Ryzen™ 4th Gen (Vermeer) Processors Support For Future AMD Ryzen Processors With BIOS Update Chipset AMD A520 Memory 3rd Gen AMD Ryzen Processors (Matisse CPUs) Supports For DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200/ 2933 / 2667 / 2400 / 2133 / 1866 3rd Gen AMD Ryzen With Radeon Graphics Processors (Renoir APUs) Supports For DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 2 X DDR4 DIMM Memory Slot, Max. Supports Up To 64 GB Memory Each DIMM Supports Non-ECC 8/ 16/ 32 GB DDR4 Module Graphics Radeon Vega Graphics Processors Slots 1 X PCIe 3.0 X 16 Slot: Supports PCIe 3.0 X 16 Mode With AMD Ryzen™ Processors. (Matisse Only) Supports PCIe 3.0 X 16 Mode AMD Ryzen™ With Radeon Vega Graphics Processors. (Renoir Only) 2 X PCIe 3.0 X 1 Slots Supported Storage 4 X SATA III Connectors (6Gb/S) : Supports AHCI & RAID 0, 1, 10 1 X M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD Module Supports PCIe 3.0 X 4 (32Gb/S) Supports SATA III (6.0Gb/S) SSD LAN Realtek RTL8111H 10/ 100/ 1000 Mb/S Auto Negotiation, Half / Full Duplex Capability Supports Super LAN Surge Protection Audio ALC887 7.1 Channels, High Definition Audio, Hi-Fi (Front) USB Port 6 X USB 3.2 (Gen1) Ports (4 On Rear I/Os And 2 Via Internal Headers) 6 X USB 2.0 Ports (2 On Rear I/Os And 4 Via Internal Headers) Internal I/O Ports 4 X SATA III (6.0Gb/S) Connectors 2 X USB 2.0 Header (Each Header Supports 2 USB 2.0 Ports) 1 X USB 3.2 (Gen1) Header (Each Header Supports 2 USB 3.2 (Gen1) Ports) 1 X 8-Pin Power Connector 1 X 24-Pin Power Connector 1 X CPU Fan Connector 1 X System Fan Connector 1 X Front Panel Header 1 X Front Audio Header 1 X Clear CMOS Header 1 X Internal Stereo Speaker Header 1 X COM Port Header External I/O Ports 1 X PS/2 Keyboard 1 X PS/2 Mouse 1 X HDMI Port 1 X VGA Port 1 X LAN Port 4 X USB 3.2 (Gen1) Ports 2 X USB 2.0 Ports 3 X Audio Jack DIMENSIONS 24.4cm X 20.8cm ( W X L ) Form Factor Micro ATX Form Factor Warranty 3 Years Biostar A520MH DDR4 AMD AM4 Socket Motherboard The Biostar A520MH DDR4 AMD AM4 Socket Motherboard is a reliable and efficient motherboard designed for home users and media aficionados. This motherboard supports 3rd and 4th-generation processors and is equipped with the AMD A520 chipset, providing a stable platform with a range of connectivity and bandwidth options. With dual memory channels, this motherboard can support up to 64GB of DDR4 memory at a maximum speed of 4933+ MHz (OC). The Biostar A520MH DDR4 AMD AM4 Socket Motherboard features a PCIe 3.0 x 16 slot and two PCIe 3.0 x 1 slots for expansion, as well as a single M.2/SSD expansion slot for high-speed storage. This motherboard also comes equipped with four SATA III 6Gbps ports, providing ample bandwidth to retrieve and transfer HD media. Additionally, this motherboard supports RAID 0, 1, and 10 configurations. The Biostar A520MH DDR4 AMD AM4 Socket Motherboard provides high-quality sound with minimal loss of audio fidelity thanks to its ALC887 audio chipset and 7.1 audio channel support. This Micro-ATX form factor motherboard features a Realtek RTL8111H LAN chipset and LAN speeds of 10/100/1000 Mb/s. It also features six USB 3.2 Gen 1 and six USB 2.0 ports for easy connectivity to external devices. Overall, the Biostar A520MH DDR4 AMD AM4 Socket Motherboard is an excellent choice for those looking for a stable and efficient motherboard with a range of connectivity and expansion options, high-quality audio and visuals, and reliable performance. This motherboard is backed by a 3-year warranty, ensuring peace of mind for the user... | UNIKA UN-H510M PRO V6 SNIPER DDR4 10th/11th Gen Micro ATX MotherboardUNIKA UN-H510M PRO V6 SNIPER is a high-performance Micro ATX motherboard, designed to provide a robust foundation for building a powerful and efficient PC. Compatible with Intel’s 10th and 11th Generation Core i3, i5, and i7 processors for the LGA 1200 socket, this motherboard offers excellent performance and versatility for gaming, content creation, and everyday computing. The motherboard is built on the Intel H470 chipset, providing solid support for the latest technologies. It supports up to 64GB of DDR4 memory across two DIMM slots, allowing you to maximize your system's performance. With support for memory speeds ranging from DDR4 2133 MHz to 3000 MHz, the UNIKA UN-H510M PRO V6 SNIPER ensures smooth multitasking and efficient handling of demanding applications. For audio, the motherboard features the onboard Realtek ALC897 high-fidelity audio codec, delivering crystal-clear sound quality, which is ideal for gaming and multimedia. Networking is also robust, with an onboard Realtek 8111H Gigabit network card providing fast and stable internet connectivity. Additionally, the inclusion of an M.2 Wi-Fi interface allows for easy wireless networking upgrades. The UNIKA UN-H510M PRO V6 SNIPER is equipped with a range of connectivity options. It includes one PCI-Express 4.0 x16 slot for a graphics card, offering support for the latest high-performance GPUs, and one PCI-E x1 slot for additional expansion cards. For storage, the motherboard provides four SATA 3.0 ports for traditional drives and an M.2 slot that supports PCIe 3.0 x4 NVMe SSDs, ensuring lightning-fast data transfer speeds and quick system boot times. Display output options are diverse, with support for DisplayPort, HDMI, and VGA, enabling multi-monitor setups for enhanced productivity and immersive experiences. The USB connectivity is extensive, featuring four USB 3.2 ports at the rear and additional USB 2.0 and 3.2 headers for front panel connections, ensuring that you have plenty of ports for all your peripherals. The motherboard’s compact Micro ATX form factor, measuring 170mm x 220mm, makes it an excellent choice for smaller cases without sacrificing essential features. The sleek black design adds a professional aesthetic to your build. Additional features include legacy PS/2 ports for keyboard and mouse, as well as 3.5mm audio ports for versatile audio connectivity. Backed by a 3-year warranty, the UNIKA UN-H510M PRO V6 SNIPER is a reliable and powerful choice for anyone looking to build a compact yet potent PC on the Intel platform. Whether you're building a gaming rig or a workstation, this motherboard offers the features and performance you need.UNIKA UN-H510M PRO V6 SNIPER DDR4 10th/11th Gen Micro ATX Motherboard FeaturesProcessor and Chipset: The motherboard supports a range of Intel 10th and 11th Generation Core processors, including Core i3, i5, and i7 series processors, providing compatibility with a wide variety of computing requirements. It is powered by the Intel H470 chipset, ensuring efficient data handling and system performance.Memory and Audio: With 2 DDR4 memory slots supporting DDR4 3000/2933/2800/2666/2400/2133 memory, the motherboard offers a maximum memory size of 64GB, providing flexibility for memory configurations. It features onboard Realtek ALC897 high-fidelity audio, delivering high-definition audio with independent sound card support.Networking, Connectivity, and Ports: The motherboard includes an onboard Realtek 8111H Gigabit network card, providing high-speed networking capabilities. It offers a range of display output interfaces, including DisplayPort, HDMI, and VGA, along with PCI-Express 4.0 x16 and PCI-E x1 slots for expansion. The M.2 slot supports 2242/2260/2280 type storage devices in PCIe 3.0 x 4 NVMe mode, enhancing storage flexibility.Power Connector, USB, and Technical Specifications: The motherboard features a 24pin+8pin power connector, ensuring stable power delivery to the system. It includes USB 3.2 and USB 2.0 ports for high-speed connectivity, along with a range of internal and external connectors for peripheral devices and system components. With a form factor of m-ATX and dimensions of 170mm x 220mm, it offers a compact yet versatile platform for system building.Other Features and Warranty: The motherboard includes additional features such as PS/2 keyboard and mouse ports, RJ45 network port, and 3.5mm audio ports, providing comprehensive connectivity options. It is backed by a 3-year warranty, offering assurance of quality and support.In conclusion, the UNIKA UN-H510M PRO V6 SNIPER DDR4 10th/11th Gen Micro ATX Motherboard provides a robust and versatile platform for building systems powered by Intel 10th and 11th Generation Core processors. With its comprehensive set of features, connectivity options, and support for high-speed components, this motherboard is well-suited for a wide range of computing applications, providing reliability, performance, and flexibility for diverse user needs... |
