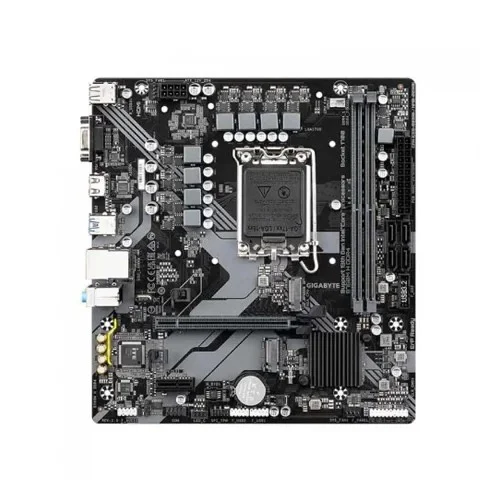

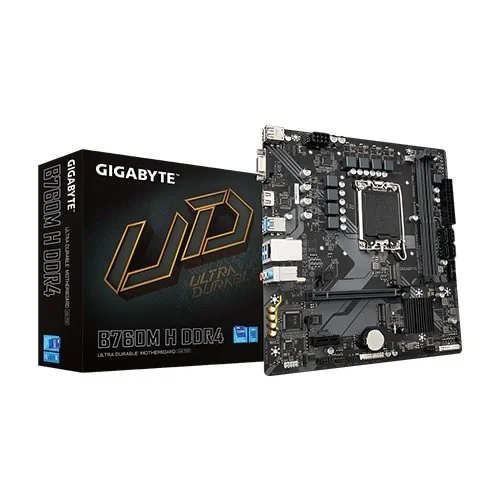

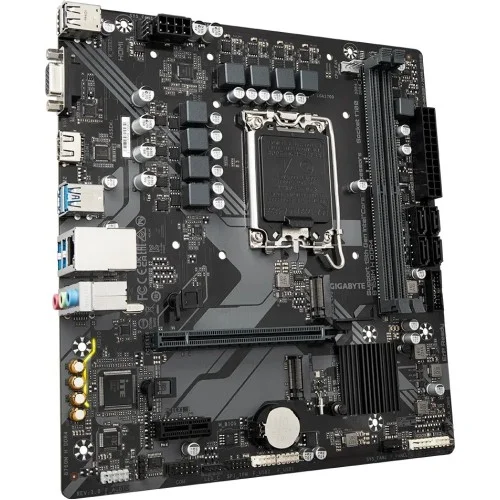

GIGABYTE B760M H DDR4 13th and 12th Gen mATX Motherboard
Save: 2801৳ (17%)
GIGABYTE B760M H DDR4 13th and 12th Gen mATX Motherboard
- Stock: In Stock
- Model: B760M H DDR4
- Product id: 24664
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
- Supported RAM: 2 x DDR4, Max 64GB 3200 Mhz

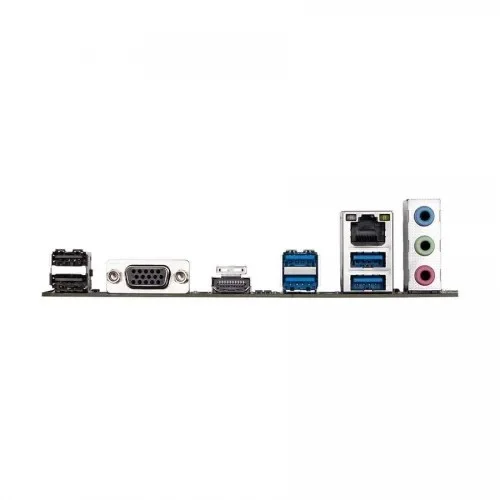

- Graphics Output: 1x HDMI, 1 x D-Sub
- : Realtek GbE LAN chip
Quick Compare
| Product Details | ||||
| Product | GIGABYTE B760M H DDR4 13th and 12th Gen mATX Motherboard | Gigabyte B550M DS3H AC Micro ATX AMD Motherboard | Biostar B760MZ-E PRO DDR5 14th Gen M-ATX Motherboard | MSI PRO B760M-G DDR4 mATX Motherboard |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | B760M H DDR4 | Gigabyte B550M DS3H AC UD | B760MZ-E PRO | PRO B760M-G |
| Brand | GIGABYTE | GIGABYTE | BIOSTAR | MSI |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Specification Basic Information Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU Chipset Intel B760 Express Chipset BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out Expansion Slots PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Memory Type DDR4 Slots 2 Supported Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory up to 64GB (32 GB single DIMM capacity) of system memory Graphics Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. Connector & Ports HDMI 1x HDMI D-Sub (s) 1x D-Sub USB (s) Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps) Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Audio 3 x audio jacks Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) Others Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software Warranty Information Manufacturing Warranty 3 years GIGABYTE B760M H DDR4 13th and 12th Gen mATX Motherboard The GIGABYTE B760M H DDR4 mATX Motherboard is designed for Intel Socket LGA 1700 and supports 13th and 12th Generation Series Processors. The motherboard's Hybrid 6+1+1 Phases Digital VRM Solution provides unrivaled performance for dependable computing. The Dual Channel DDR4 with 2 DIMMs supports XMP Memory Module for greater memory capacities. The motherboard has two PCIe 4.0 x4 M.2 connectors for storage, ensuring compatibility with next-generation storage devices. The GIGABYTE B760M H DDR4 13th Gen Motherboard includes an EZ-Latch PCIe 4.0 x16 Slot with a Quick Release Design for easy hardware installation. It also offers dependable network connectivity with GbE LAN and expanded connectivity possibilities with HDMI and D-Sub connectors. The Smart Fan 6 technology improves cooling performance even further by using numerous temperature sensors and hybrid fan headers with FAN STOP functionality, making the GIGABYTE B760M H DDR4 mATX Motherboard a reliable and effective alternative for a variety of computing applications. .. | Specification Basic Information Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors Chipset AMD B550 BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm Expansion Slots PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Memory Type Dual Channel DDR4 Memory Technology Slots 4 x DIMM Supported Memory AMD Ryzen™ 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory 128 GB Graphics Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Max Shared Memory 16 GB Connector & Ports HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version, HDCP 2.3, and HDR) DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz (The DVI-D port does not support D-Sub connection by adapter) USB (s) CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit) Wireless Communication module: Intel Wi-Fi AC 3168 WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) Warranty Information Manufacturing Warranty 03 years Others Special Features Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software Support for Windows 10 64-bit Gigabyte B550M DS3H AC Micro ATX AMD Motherboard GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. HDMI 2.1, which is backward compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR, and HDCP 2.3 support, to offer the best visual experience for viewers. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, but 5 more hybrid fan headers that support both PWM and Voltage mode fans have also been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking. With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 is now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations. With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come. With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience. GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory, and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. The BIOS is essential for users during the initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. .. | ChipsetIntel B760Accessories2 x SATA Cable1 x I/O Shield1 x DVD Driver1 x Quick Guide1 x M.2 Anchor1 x WiFi antenna accessoriesAUDIO CODECALC8977.1 Channels, High Definition Audio, Hi-Fi(Front)BUNDLE SOFTWAREBullGuardCPU SUPPORTSupport for 12th / 13th /14th Generation Intel® Core™ i9/ i7/ i5/ i3 processors andIntel Pentium processors/Intel Celeron processors in the LGA1700 package* Please refer to www.biostar.com.tw for CPU support list.DimensionMicro ATX Form Factor Dimension: 24.4 cm x 24.4cm ( W x L )EXPANSION SLOTINTEL 12th/13th/14th Processors1 x PCIe 4.0 x16 Slot (x16 mode)INTEL B760 Chipset1 x PCIe 3.0 x16 Slot (x4 mode)1 x PCIe 3.0 x1 SlotFeaturesVIVID LED DJBIO-FLASHERA.I FANLED ROCK ZONEH/W MonitoringCPU / System Temperature MonitoringSmart / Manual CPU Fan ControlCPU/DDR Voltage MonitoringINTEGRATED VIDEOSupports DX12Supports HDCPINTERNAL I/O4 x SATA III Connector (6Gb/s)1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and IntelCNVi2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)1 x USB 3.2 (Gen2) Type-C Header (each header supports 1 USB 3.2 (Gen2) ports)1 x 8-Pin Power Connector1 x 24-Pin Power Connector1 x CPU Fan Connector1 x CPU water cooling connector (CPU_OPT)1 x System Fan Connector1 x Front Panel Header1 x Front Audio Header1 x Internal Stereo Speaker Header1 x Clear CMOS Header1 x COM Port Header1 x TPM Header2 x LED Header (5V)1 x LED Header (12V)* M.2 (E key) Wi-Fi card is not providedLANRealtek RTL8125B10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capabilityMemorySupports Dual Channel DDR5 – 6000+(OC) / 6000(OC) /5800(OC) / 5600(OC)/5400(OC)/5200(OC)/ 5000(OC)/ 48004 x DDR5 DIMM Memory Slot, Max. Supports up to 192 GB MemoryEach DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 moduleSupport Intel® Extreme Memory Profile (XMP) memory modules* Please refer to www.biostar.com.tw for Memory support list.OS SUPPORTSupports Windows Windows 10(64bit) / Windows 11(64bit)※Biostar reserves the right to add or remove support for any OS with or withoutnotice.REAR I/O2 x WIFI Antenna Port1 x PS/2 Keyboard/ Mouse Port1 x HDMI1 x DP1 x VGA1 x DVI Port3 x USB 3.2 (Gen1) Port2 x USB 2.0 port1 x LAN port3 x Audio JackStorageTotal supports 2 x M.2 socket and 4 x SATA III (6Gb/s) portsIntel 12th/13th/14th Processors1 x M.2 (M Key) Socket (M2M_CPU):Supports M.2 Type 2280 SSD moduleSupports PCIe 4.0 x4 (64Gb/s) – NVMe SSDIntel B760 Chipset1 x M.2 (M Key) Socket (M2M_SB):Supports M.2 Type 2242/2260/2280 SSD moduleSupports PCIe 4.0 x4 (64Gb/s) – NVMe SSD4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel RapidStorage TechnologyUSB1 x USB 3.2 (Gen2) Type-C port (1 via internal header)5 x USB 3.2 (Gen1) port (3 on rear I/Os and 2 via internal header)6 x USB 2.0 port (2 on rear I/Os and 4 via internal header)Biostar B760MZ-E Pro DDR5 M-atx MotherboardBiostar B760MZ-E Pro DDR5 Gen Motherboard stands as a powerhouse within the realm of computing hardware, designed to elevate your system's performance and efficiency. Crafted with precision and cutting-edge technology, this motherboard caters to the needs of gamers, content creators, and professionals alike. Engineered to accommodate the latest DDR5 memory modules, it harnesses the incredible speed and bandwidth of DDR5, enhancing multitasking capabilities and ensuring smoother data transfer for resource-intensive tasks. The Gen4 PCIe support optimizes data transmission rates, facilitating lightning-fast connectivity with compatible peripherals like graphics cards and NVMe SSDs, thereby reducing data bottlenecks. Its feature-rich design extends to its robust VRM and cooling solutions, maintaining stable power delivery and efficient heat dissipation, crucial for sustained high-performance computing. Additionally, the motherboard boasts a comprehensive range of connectivity options, including USB ports, LAN, and audio inputs, providing versatility for diverse user needs. Equipped with a user-friendly BIOS interface, tweaking system settings becomes effortless, allowing enthusiasts to fine-tune performance settings and overclock with confidence. The board's durability and reliability make it a reliable foundation for both gaming rigs and professional workstations, ensuring consistent performance under demanding workloads. In summary, the Biostar B760MZ-E Pro DDR5 Gen Motherboard amalgamates cutting-edge technology, robust performance, and user-friendly features, positioning itself as an indispensable component for those seeking superior computing experiences... | MSI PRO B760M-G DDR4 mATX MotherboardMSI PRO B760M-G DDR4 mATX Motherboard is a reliable and feature-packed option for building a modern and efficient desktop system. Based on the Intel B760 chipset, this motherboard supports 12th and 13th Generation Intel Core processors, making it a versatile choice for both casual users and professionals seeking powerful performance. This micro-ATX motherboard is designed to balance compact size with robust functionality. It supports DDR4 memory with speeds up to DDR4-5333 (OC), allowing for smooth multitasking and improved overall system responsiveness. With four DIMM slots, users can install up to 128GB of RAM, providing plenty of capacity for memory-intensive tasks such as gaming, content creation, and video editing. Storage flexibility is a key feature of the PRO B760M-G DDR4. It includes dual M.2 slots for high-speed NVMe SSDs, ensuring fast boot times and quick data transfers, along with multiple SATA ports for traditional hard drives or SSDs. This setup accommodates a wide range of storage needs, from high-speed gaming systems to professional workstations. Connectivity options are abundant, with USB 3.2 Gen 1 and Gen 2 ports for faster data transfers and USB 2.0 ports for additional peripherals. The motherboard also features HDMI and DisplayPort outputs, enabling compatibility with high-resolution displays and offering crisp visuals for gaming or professional workflows. The Gigabit LAN port ensures stable and fast internet connectivity, while the Realtek HD Audio chipset provides clear and immersive sound for multimedia applications. MSI also includes their EZ Debug LED for simplified troubleshooting and an intuitive BIOS interface for easy configuration. Overall, the MSI PRO B760M-G DDR4 mATX Motherboard is a well-rounded and future-proof solution. It is ideal for users seeking a reliable platform for gaming, productivity, or everyday use without compromising on performance or expandability... |
