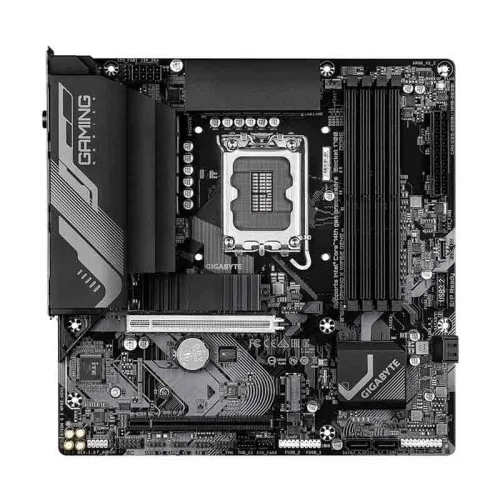

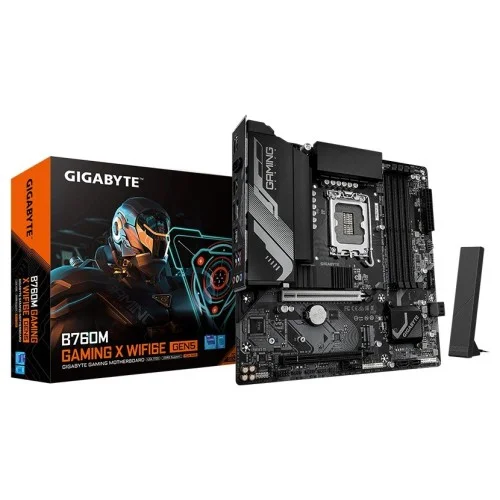

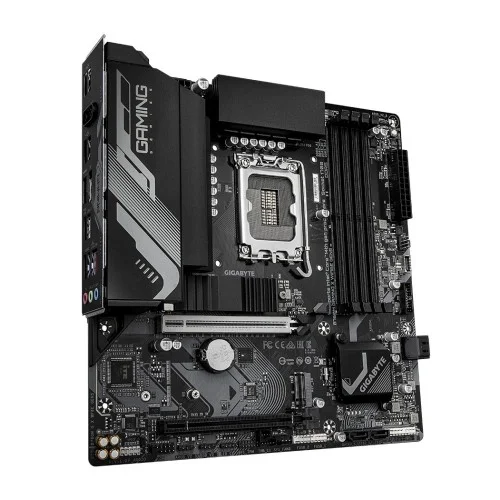

GIGABYTE B760M GAMING X WIFI6E GEN5 Motherboard
- Stock: In Stock
- Model: B760M GAMING X WIFI6E GEN5
- Product id: 30370
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th/12 processors
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
| Key Features | |
| Color | Black |
| Connectors | 2 x M.2, 4 x SATA 6Gb/s, 24-pin ATX, 8-pin ATX 12V, fan and RGB/ARGB headers |
| Basic Information | |
| Supported CPU | 14th/13th/12th Gen Intel Core, Pentium Gold, Celeron Processors |
| Chipset | DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s |
| Form Factor | Micro ATX, 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out |
| Expansion Slots | |
| PCI | 1 x PCI Express x16, PCIe 5.0; 1 x PCI Express x16, PCIe 3.0 x4 |
| M.2 Socket | 2 x M.2 Socket 3, PCIe 4.0 x4/x2, M key |
| Memory | |
| Slots | 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 running at x4 |
| Supported Memory | AMI UEFI BIOS, 256 Mbit Flash |
| Maximum Memory | 256GB |
| Graphics | |
| Graphics | Integrated Intel HD Graphics support |
| Connector & Ports | |
| HDMI | 1 x HDMI 2.1, up to 4096 × 2160 @ 60Hz |
| Display Port (s) | 1 x DisplayPort 1.2, up to 4096 × 2304 @ 60Hz |

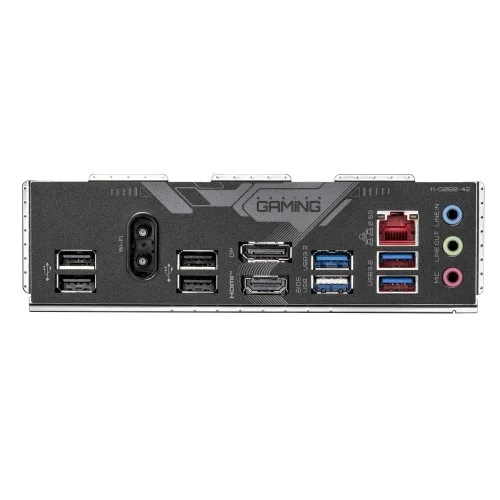

| USB (s) | 3 x USB 3.2 Gen 1, 5 x USB 2.0/1.1 on rear; additional internal USB headers |
| Front USB | 1 x USB Type-C 3.2 Gen 2 header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers |
| LAN Port (s) | 1 x RJ-45, Realtek 2.5GbE LAN |
| Wireless Communication module | Intel Wi-Fi 6E AX210, 2.4GHz/5GHz/6GHz, Bluetooth 5.3, 802.11ax 160MHz |
| Supported Storage | 2 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
| Audio | Realtek High Definition Audio, 7.1-channel support, S/PDIF Out |
| Internal I/O Ports | 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 3 x system fan, 3 x ARGB LED, 1 x RGB LED, 2 x M.2, 4 x SATA, USB headers, front panel and audio headers, Q-Flash Plus |
| Network & Connectivity | |
| WiFi | Intel Wi-Fi 6E AX210 |
| Others | |
| Special Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup, Smart Fan 6, VRM Thermal Armor Advanced, M.2 Thermal Guard |
| Bundled Software | Norton Internet Security (OEM version), LAN bandwidth management software |
| Warranty Information | |
| Warranty | 3 Years |
GIGABYTE B760M GAMING X WIFI6E GEN5 Motherboard
The GIGABYTE B760M GAMING X WIFI6E GEN5 is a feature-rich Micro ATX motherboard designed for modern Intel-based PC builds in Bangladesh. Built around the Intel B760 chipset and LGA1700 socket, it supports 14th, 13th, and 12th Generation Intel Core processors along with Pentium Gold and Celeron processors. Its combination of DDR5 memory support, PCIe 5.0 connectivity, built-in Wi-Fi 6E, 2.5GbE LAN and high-speed M.2 storage makes it a practical choice for gaming, productivity, content creation and demanding everyday computing.
Powerful Intel Platform and DDR5 Memory
This motherboard provides a solid foundation for users planning a new Intel PC. It features four DDR5 DIMM slots with support for up to 256GB of system memory, dual-channel architecture and XMP memory modules. Supported memory speeds can reach up to DDR5 7600 MT/s through overclocking, depending on the processor, memory kit and overall system configuration. For Bangladeshi users who want a responsive gaming or productivity PC without replacing the motherboard soon, the DDR5 platform provides plenty of memory expansion flexibility.
PCIe 5.0 and Fast Storage Connectivity
The GIGABYTE B760M GAMING X WIFI6E GEN5 includes a full-length PCIe 5.0 x16 slot for a graphics card or compatible NVMe SSD, making it suitable for powerful gaming and workstation configurations. It also provides two PCIe 4.0 x4 M.2 connectors for high-speed NVMe storage and four SATA 6Gb/s ports for additional drives. The M.2 Thermal Guard helps manage SSD temperatures and can reduce performance throttling during sustained workloads. This combination is useful for gamers, video editors, students and professionals who need fast application loading and file transfers.
Wi-Fi 6E, Bluetooth 5.3 and 2.5GbE LAN
For users who prefer a clean desktop without additional networking adapters, this motherboard includes an Intel Wi-Fi 6E AX210 wireless module with 2.4GHz, 5GHz and 6GHz band support, along with Bluetooth 5.3. Wi-Fi 6E can be especially useful in busy home or office environments where wireless networks are crowded. The integrated Realtek 2.5GbE LAN also provides a faster wired networking option for compatible routers and network equipment. These connectivity options make the board suitable for online gaming, streaming, large file transfers, remote work and home-office setups.
Thermal Design and Practical PC Building
The board features an 8+1+1 hybrid digital VRM design with 60A DrMOS, VRM Thermal Armor Advanced and M.2 Thermal Guard to support stable operation under demanding workloads. Smart Fan 6 provides fan-speed monitoring and control, while multiple fan headers allow users to build an actively cooled system. For first-time PC builders, features such as Q-Flash Plus can make BIOS updating easier because the BIOS can be updated without installing the CPU, memory or graphics card. The Micro ATX 24.4cm x 24.4cm form factor also makes it suitable for many compact and mid-sized PC cases.
Who Should Buy This Motherboard?
The GIGABYTE B760M GAMING X WIFI6E GEN5 is well suited to Bangladeshi students, gamers, office professionals, freelancers, programmers and content creators building a new Intel PC. It can pair well with mid-range to high-performance Intel processors and a dedicated graphics card for gaming, editing and other demanding applications. Beginners can benefit from its built-in wireless connectivity and practical expansion options, while experienced builders can take advantage of DDR5 XMP, PCIe 5.0 and multiple storage interfaces. For buyers comparing motherboard price in Bangladesh, its combination of modern connectivity and upgrade flexibility makes it a strong option for a performance-focused build.
Why Buy from Creatus Computer?
Choosing the right motherboard is important because it affects processor compatibility, memory expansion, storage options and future upgrade possibilities. Creatus Computer provides a convenient option for Bangladeshi buyers looking to purchase genuine computer hardware online. Before ordering, customers should verify the current price, stock status and applicable warranty terms. Creatus Computer can also be considered when comparing the GIGABYTE B760M GAMING X WIFI6E GEN5 with other B760 motherboards based on features, budget and intended PC configuration.
Frequently Asked Questions
1. What is the GIGABYTE B760M GAMING X WIFI6E GEN5 price in Bangladesh?
The price can vary depending on stock, market conditions and seller offers. Check the current listing from Creatus Computer for the latest price before placing your order.
2. Does this motherboard support Wi-Fi and Bluetooth?
Yes. It includes an Intel Wi-Fi 6E AX210 wireless module supporting 2.4GHz, 5GHz and 6GHz bands, along with Bluetooth 5.3. The included antenna connectors support the motherboard's wireless networking setup.
3. Is this motherboard suitable for a gaming PC?
Yes. With PCIe 5.0 x16 graphics support, DDR5 memory, two PCIe 4.0 M.2 slots, 2.5GbE LAN, Wi-Fi 6E and a robust VRM design, it is suitable for gaming PCs as well as productivity and content-creation systems. Creatus Computer can be a practical choice for buyers who want to compare compatible components before completing their build.
