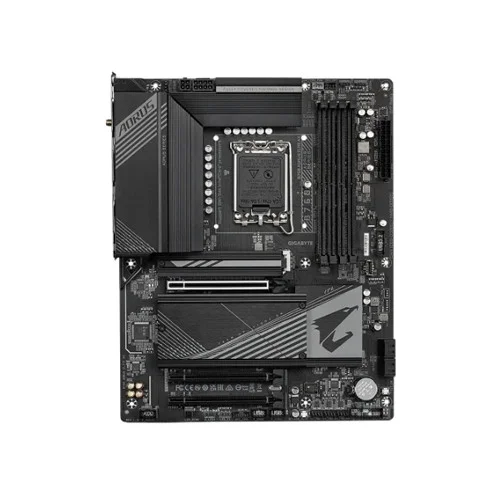

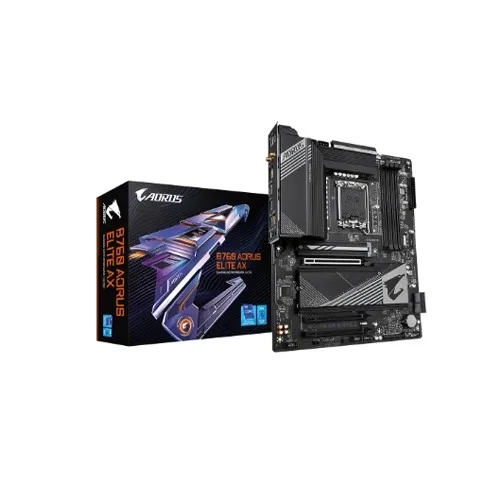

Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard

Name: Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard
Brand: GIGABYTE
Price: 24000.00 BDT
Availability: OutOfStock

Save: 3650৳ (13%) Out Of Stock

Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard

Stock: Out Of Stock
Model: B760 AORUS ELITE AX
Product id: 27475

Based on 0 reviews. - Write a review

24,000৳

27,650৳

Ex Tax: 24,000৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax
Graphics Output: 1x HDMI, 1x DisplayPort
Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Chat Through

Messenger

Basic Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Memory
Type	DDR5
Slots	4
Supported Memory	Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 192 GB (48 GB single DIMM capacity) of system memory
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Audio	2 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Others
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Warranty	3 years

Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard

The Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard is a high-performance and feature-rich motherboard designed for gamers, content creators, and PC enthusiasts. Built with the Intel B760 Express chipset, it supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket, making it a versatile choice for modern computing needs. This ATX motherboard boasts DDR5 memory support, with speeds up to 7600 MT/s (O.C.) and a maximum capacity of 192 GB, ensuring smooth multitasking and enhanced performance for demanding applications. The dual-channel architecture and Extreme Memory Profile (XMP) support further optimize system memory capabilities. For storage, the motherboard includes three M.2 connectors and four SATA 6Gb/s ports, offering fast data transfer rates and flexible storage configurations. The PCIe 4.0 x16 slot provides robust support for high-performance graphics cards, making it ideal for gaming or graphic-intensive tasks. Connectivity is another standout feature. The Intel Wi-Fi 6E AX211 and Bluetooth 5.3 ensure ultra-fast wireless connections, while the Realtek 2.5GbE LAN port delivers stable wired networking. Additionally, users benefit from an array of USB options, including USB 3.2 Gen 2 Type-C and Type-A ports, catering to modern device compatibility. The motherboard's integrated Intel HD Graphics processor supports 4K resolutions via HDMI 2.0 and DisplayPort 1.2, ensuring vibrant visuals. Audio is powered by the Realtek Audio CODEC, offering high-definition sound and support for S/PDIF Out. With advanced features like RGB LED strip headers, Q-Flash Plus, and a comprehensive software suite including GIGABYTE Control Center, this motherboard blends performance, style, and functionality. Backed by a 3-year warranty, the Gigabyte B760 AORUS ELITE AX is an excellent choice for building powerful PCs.
