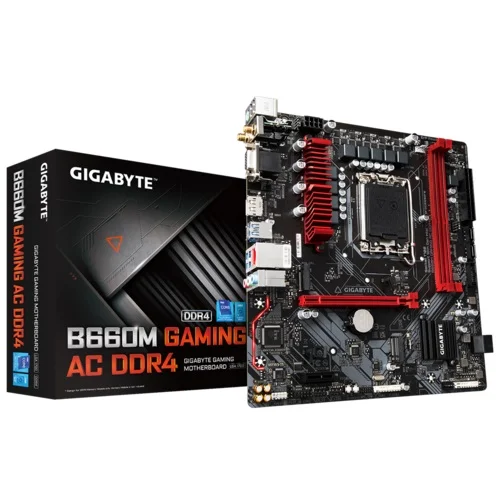

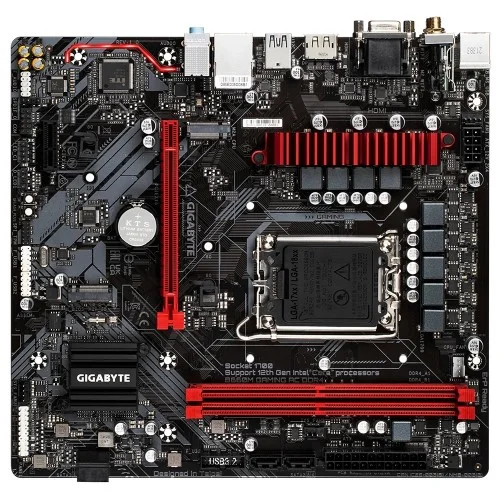

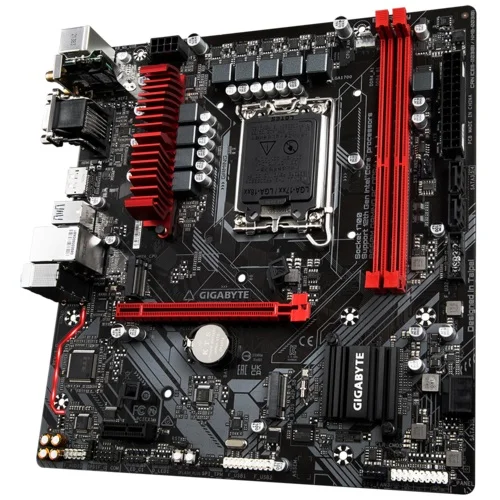

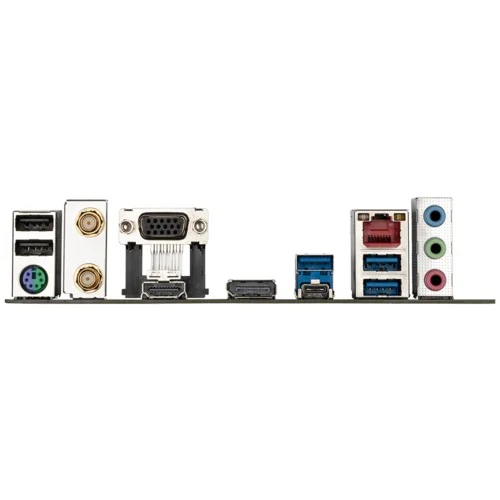

Gigabyte B660M Gaming AC DDR4 12th Gen Micro ATX Motherboard
Save: 50৳ (0%)
Gigabyte B660M Gaming AC DDR4 12th Gen Micro ATX Motherboard
- Stock: In Stock
- Model: B660M Gaming AC
- Product id: 23509
14,250৳
14,300৳
Ex Tax: 14,250৳
- LGA1700 socket: Supports 12th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
Chat Through
Quick Compare
| Product Details | ||||
| Product | Gigabyte B660M Gaming AC DDR4 12th Gen Micro ATX Motherboard | GIGABYTE B760M H DDR5 Micro ATX Motherboard | GIGABYTE B760M D2H DDR4 13th Gen Intel mATX Motherboard | Asus PRIME B760M-K D4 mATX Motherboard |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | B660M Gaming AC | B760M H DDR5 | B760M D2H DDR4 | PRIME B760M-K D4 |
| Brand | GIGABYTE | GIGABYTE | GIGABYTE | ASUS |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Specification Basic Information Supported CPU LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU Chipset Intel B660 Express Chipset BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out Expansion Slots PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.) M.2 Socket CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready Memory Type DDR4 Slots 4 x DIMM Supported Memory Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory up to 128 GB (32 GB single DIMM capacity) of system memory Graphics Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Connector & Ports HDMI 1 x HDMI port Display Port (s) 1 x DisplayPort D-Sub (s) 1 x D-Sub port USB (s) Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready System acceleration with Intel® Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. Audio 2 x audio jacks Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) Warranty Information Manufacturing Warranty 3 years Others Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software Norton Internet Security (OEM version) cFosSpeed Gigabyte B660M Gaming AC DDR4 12th Gen Micro ATX Motherboard Gigabyte B660M Gaming AC DDR4 is a 12th Gen processor supported DDR4 Micro ATX Motherboard. It Supports 12th Gen Intel Core Series Processors. This motherboard has Dual Channel Non-ECC Unbuffered DDR4 with 2 DIMMs. It also has 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink.it features a Fast 2.5 GbE GAMING LAN with Bandwidth Management with built-in WIFI 802.11ac and Bluetooth 4.2 with AERO Antenna. It can house dual Ultra-Fast NVMe PCIe 4.0 x4 M.2. The​ Rear has SuperSpeed USB 3.2 Gen 1 TYPE-C port for Fast and Versatile Connections with high-Quality Audio Capacitors and Audio Noise Guard. It also supports RGB FUSION 2.0 which makes it support Addressable LED & RGB LED Strips. It has a Smart Fan 6 which Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. B660M Gaming AC DDR4 motherboard has Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. This motherboard is windows 11 ready. This MOBO Cleaner and more efficient power delivery to the CPU with better thermal performance ensures stability under high CPU frequencies and heavy loading with 6+2+1 Phases Low RDS(on) MOSFETs. It also has Solid capacitors to improve transient response and minimize oscillation alongside an 8-pin Solid Pin CPU Power Connector. GIGABYTE B660 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. Gigabyte B660M Gaming AC DDR4 12th Gen Micro ATX Motherboard offers 03 years of Warranty. .. | GIGABYTE B760M H DDR5 Micro ATX MotherboardThe GIGABYTE B760M H DDR5 Micro ATX Motherboard is a high-performance and versatile motherboard designed to deliver exceptional computing power and efficiency. Supporting LGA1700 socket processors, it is compatible with 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, ensuring that users have access to the latest Intel chipsets for powerful performance. The motherboard features the Intel B760 Express Chipset, providing robust and reliable functionality for gaming, content creation, and multitasking. This motherboard supports DDR5 memory, with two DIMM slots capable of handling up to 128GB of memory, offering overclocking capabilities up to 8000 MHz. The dual-channel memory architecture enhances system speed, and the motherboard is compatible with ECC and non-ECC memory for flexibility in performance optimization. Equipped with a PCIe 4.0 x16 slot, the motherboard supports high-performance graphics cards and NVMe SSDs. Additionally, it features two M.2 connectors for PCIe 4.0 storage devices and four SATA 6Gb/s connectors, allowing users to expand their storage with multiple drives. RAID support (RAID 0, RAID 1, RAID 5, and RAID 10) further enhances storage management capabilities. The GIGABYTE B760M H offers ample connectivity options, including 6 USB 3.2 Gen 1 ports, 6 USB 2.0 ports, and Realtek GbE LAN for high-speed networking. For multimedia, it provides HDMI and D-Sub ports, supporting resolutions up to 4K. The motherboard also includes Realtek High Definition Audio, delivering clear and immersive sound... | Specification Basic Information Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU Chipset Intel B760 Express Chipset BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out Expansion Slots PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Memory Type DDR4 Slots 2 Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory 64GB Graphics Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz Connector & Ports HDMI 1x HDMI Display Port (s) 1x DisplayPort USB (s) 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port Supported Storage 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Audio 1 x front panel audio header 3 x audio jacks Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) Others Special Features 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Warranty Information Manufacturing Warranty 3 years GIGABYTE B760M D2H DDR4 13th Gen Intel mATX Motherboard The GIGABYTE B760M D2H DDR4 motherboard is intended for usage with Intel CPUs from the 13th and 12th generations, and it supports the LGA 1700 socket. It boasts an unrivaled performance thanks to its hybrid 6+2+1 phase digital VRM system. This mATX motherboard also includes twin-channel DDR4 memory support, two XMP memory module slots, and two PCIe 4.0 x4 M.2 connections for next-generation storage. The PCIe 4.0 x16 slot has an EZ-Latch quick-release design, and the 2.5GbE LAN ensures speedy networks. HDMI and D-Sub ports provide additional connecting choices. The Smart Fan 6 has several temperature sensors and hybrid fan headers with fan stops, and the BIOS may be readily upgraded using the Q-Flash Plus function without having to install the CPU, RAM, or graphics card. .. | Asus PRIME B760M-K D4 mATX MotherboardThe Asus PRIME B760M-K D4 is a reliable and feature-packed micro-ATX motherboard, designed to deliver exceptional performance for both casual users and PC enthusiasts. Built on the robust Intel B760 chipset, it supports the latest Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors through the LGA1700 socket, ensuring compatibility with powerful CPUs. This motherboard is optimized for DDR4 memory, supporting speeds up to 5333MHz (OC) with a maximum capacity of 64GB across two DIMM slots. It features a dual-channel memory architecture and Intel XMP support for easy memory overclocking, offering excellent responsiveness for gaming and multitasking. Storage options are versatile, with two M.2 PCIe 4.0 x4 slots and four SATA 6Gb/s ports, along with RAID 0/1/5/10 support through Intel Rapid Storage Technology. For expansion, the B760M-K D4 provides one PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots, giving users flexibility for adding GPUs and other cards. Connectivity is strong, offering Realtek 2.5Gb Ethernet for fast and stable networking, multiple USB 3.2 Gen 1 and USB 2.0 ports for peripherals, and display outputs via HDMI and VGA ports, supporting a variety of monitors. The Realtek 7.1 Surround Sound Audio CODEC ensures high-quality, immersive sound. Durability and protection are key, with ASUS 5X Protection III technologies like DIGI+ VRM, LANGuard, and SafeSlot Core ensuring long-term reliability. Cooling is well-managed with dedicated fan headers and a VRM heatsink design. Aesthetic enhancements include Aura Sync RGB support, with addressable Gen 2 and standard RGB headers for customizable lighting. Bundled with ASUS software such as Armoury Crate, Fan Xpert, and AI Suite 3, and backed by a 3-year warranty, the Asus PRIME B760M-K D4 offers a strong, balanced foundation for any modern build... |
