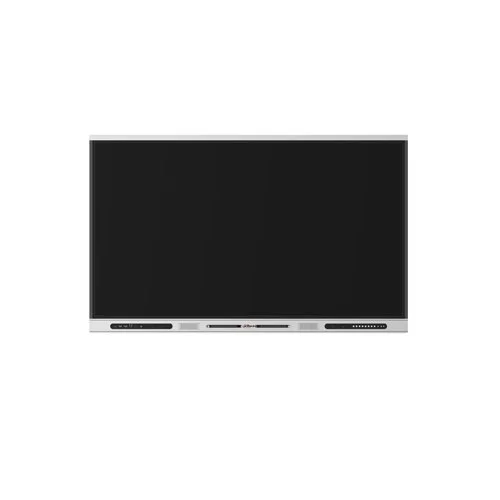

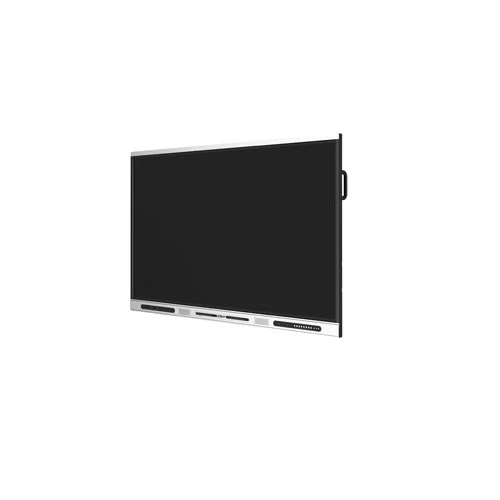

Dahua DHI-LPH86-ST420 86 Inch Smart Interactive Flat Panel

Name: Dahua DHI-LPH86-ST420 86 Inch Smart Interactive Flat Panel
Brand: Dahua
SKU: DHI-LPH86-ST420
Availability: OutOfStock

Up Coming

Dahua DHI-LPH86-ST420 86 Inch Smart Interactive Flat Panel

Stock: Up Coming
Model: DHI-LPH86-ST420
Product id: 25660
SKU: DHI-LPH86-ST420

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Aspect Ratio: 16:09
Brightness: 400 cd/m² (typ.)
Resolution: 3840 × 2160
Viewing Angle: 178° (H) / 178° (V)

Key Features
Button	8 buttons (power, home, menu, signal source, touch lock, curtain, volume, and annotation)
Wireless	WIFI 5, 2.4 GHz/5 GHz; Supports enabling Hotspot and Wi-Fi at the same time
Material	Metal
Temperature	Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F) Storage Temperature: –10 °C to +50 °C (+14 °F to +122 °F)
Display Features
Resolution	3840 × 2160
Viewing Angle	178° (H) / 178° (V)
Aspect Ratio	16:09
Brightness	400 cd/m² (typ.)
Contrast Ratio	1200
Refresh Rate	60 Hz
Response Time	≤10 ms
Basic Information
Power Supply	100–240 VAC, 50/60 Hz
POWER	2.0 sound channel, front-end: 2 × 15 W
Others	Valid Touch: 2 mm Touch Height: <2.5 mm Writing Mode: Finger + Pen (attaches magnetically) Communication Mode: USB Anti-light Interference: Anti-dazzle tempered glass Surface Hardness: 8H Touch Resolution: 32767 × 32767
Display
Display Size	86 inch
Memory
Ram	RAM: 8 GB (optional 4 GB) ROM: 64 GB (optional 32 GB)
Ports & Slots
Ports	Type C × 1 (4K@60 Hz, Touch) HDMI In × 1 (4K@60 Hz) USB 3.0 Type-B × 1 (Touch) USB 3.0 Type A × 2 Mic In × 1 (3.5 mm port)
Network & Connectivity
WiFi	WIFI 5, 2.4 GHz/5 GHz; Integrated WiFi 802.11 b/g/n/ac, supports PEAP/EAP-GTC authentication protocol within 802.lX
Bluetooth	Bluetooth 5.2
Main Features
Operating System	Android 11
Display Details
Display Colors	1.07 B
Connector
CPU	Quad-core A55
Physical dimension
Dimension	Product Dimensions: 86-inch: 1,953.2 mm × 93.0 mm × 1,187.9 mm (76.90″ × 3.66″ × 46.77″) Packaging Dimensions: 86-inch: 2,050.0 mm × 200.0 mm × 1,310.0 mm (80.71″ × 7.87″ × 51.57″)
Physical Specification
Weight	Net Weight: 86-inch: 68 kg (149.92 lb) Gross Weight: 86-inch: 82 kg (180.78 lb)

Dahua DHI-LPH86-ST420 86 Inch Smart Interactive Flat Panel

The Dahua DHI-LPH86-ST420 86 Inch Smart Interactive Flat Panel is a cutting-edge display solution designed to enhance collaboration, communication, and interactive experiences in various environments. With its advanced features and robust construction, this flat panel offers exceptional performance and versatility. Featuring a stunning 3840 × 2160 resolution, the flat panel delivers crisp and clear visuals with vibrant colors and sharp details. The wide viewing angle of 178° (H) / 178° (V) ensures that users can enjoy consistent image quality from virtually any angle, making it suitable for large meeting rooms, classrooms, and interactive digital signage applications. With a brightness of 400 Cd/M² and a contrast ratio of 1200, the flat panel produces bright and vivid images, enhancing visibility and readability in different lighting conditions. The refresh rate of 60 Hz and a response time of ≤10 Ms ensure smooth and responsive touch interactions, providing a seamless user experience. Equipped with 8 buttons for essential functions and integrated WiFi 5 supporting both 2.4 GHz and 5 GHz bands, the flat panel offers convenient control and seamless wireless connectivity. The metal construction ensures durability and longevity, while the operating temperature range of 0°C to +40°C allows reliable performance in various environments. The Dahua DHI-LPH86-ST420 flat panel runs on the Android 11 operating system and features a Quad-Core A55 CPU for smooth performance and efficient multitasking. With 8GB of RAM and 64GB of storage (optional 4GB/32GB), users have ample space to store files and run applications seamlessly. With its large 86-inch display size and advanced interactive features, the Dahua DHI-LPH86-ST420 is perfect for large-scale presentations, collaborative meetings, and interactive learning environments. Experience enhanced productivity and engagement with the Dahua DHI-LPH86-ST420 86 Inch Smart Interactive Flat Panel.

Dahua DHI-LPH86-ST420 86 Inch Smart Interactive Flat Panel Features

Resolution: With a resolution of 3840 × 2160, the flat panel delivers stunning 4K visuals with exceptional clarity and detail.
Viewing Angle: Boasting a wide viewing angle of 178° (H) / 178° (V), users can enjoy consistent image quality from virtually any position in the room.
Aspect Ratio: The 16:9 aspect ratio provides an immersive viewing experience for multimedia content and presentations.
Brightness and Contrast Ratio: The flat panel offers a brightness of 400 Cd/M² (Typ.) and a contrast ratio of 1200, ensuring vivid and lifelike images with rich colors and deep blacks.
Refresh Rate and Response Time: With a refresh rate of 60 Hz and a response time of ≤10 Ms, the panel delivers smooth and seamless visuals, ideal for dynamic content and interactive applications.

Display Details and Physical Specification

The flat panel supports a wide range of display colors (1.07 B), providing vibrant and true-to-life visuals.
With physical dimensions of 1,953.2mm × 93.0mm × 1,187.9mm (76.90″ × 3.66″ × 46.77″), the panel offers an expansive viewing area suitable for large-scale presentations and interactive sessions.
It weighs 68 kg (net) and 82 kg (gross), ensuring stability and sturdiness during installation and usage.
