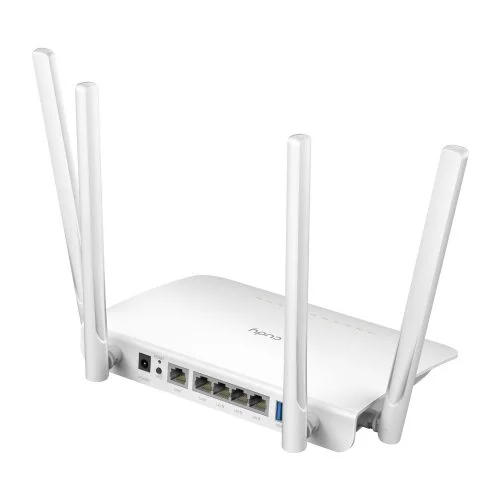

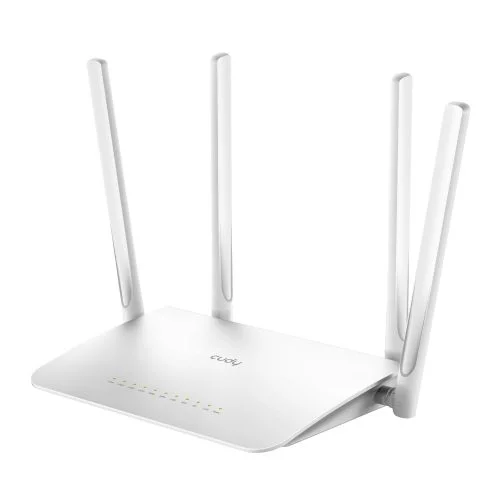

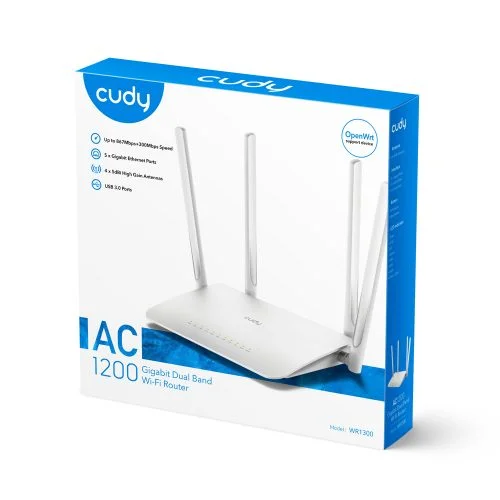

Cudy WR1300 AC1200 Dual Band WiFi Router

Concurrent Dual Band WiFi

Cudy WR1300 AC1200 Dual Band WiFi Router's 2.4GHz provides extremely long range, 5GHz reaches 867Mbps, ideal for gaming and 4K streaming.Simple tasks like web browsing can be handled by the 2.4GHz band, while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band at the same time.

2-IN-1 WiFi Router / Access Point

When working in router mode, it can quickly establish a connection with the Internet through dial-up, so that all devices connected to it can enjoy high-speed networks. When working in the access point mode, usually a modem or router is required in front of it to dial and play the role of DHCP server, it only undertakes the role of data forwarding.

High Performance CPU and Antennas

Powerful Dual-Core CPU ensures smooth 4K UHD streaming to Smart TVs, mobile devices and gaming consoles without buffering. 4x5dBi High gain antennas boost sensitivity of the WiFi router, create connections over greater distances, providing powerful penetration through walls.

Built-in VPN Clients

With built-in PPTP / L2TP VPN Clients, this router can easily establish a connection to VPN Server to transport all your online data and traffic, securing it with its encryption at the same time. You can use this function to connect your home network with your work network or school network. You only need to configure the router once, and all the devices in the network can be connected. Greatly facilitate your work, study and life.

20+ DDNS Support

When you apply for an Internet package from an operator, the operator will usually assign you an IP at random. A random and frequently changing IP cannot be used to remotely manage home networks and equipment. You can bind your home IP address to a custom domain name through the DDNS function. No matter how the IP changes, the domain name can point to your network, which makes remote management possible.

OpenWrt Ready

16MB Flash and 128MB DDR3 ensure the continuous operation of the operating system, makes the router runs faster and provides more possibilities for function expansion. And as bing built with such large flash and DDR, WR1300 makes it possible to install OpenWrt system. You can get related software from Cudy official website.

Specifications

Model	WR1300
Hardware Features	Processor	Dual-Core CPU
	Flash	16MB
	DDR	128MB
	Antenna	4× Fixed Omni-Directional Antennas
	Interface	1× 1000/100/10 Mbps WAN Port
		4× 1000/100/10 Mbps LAN Ports
	USB	USB 3.0
	Button	WPS Button, Reset Button
	External Power Supply	12 V / 1 A
	Dimensions ( W x D x H )	204.8 x 137. 5 x 38. 3mm
Wireless Features	Wireless Standards	IEEE 802.11ac/n/a 5 GHz
		IEEE 802.11n/b/g 2.4 GHz
	Frequency	5 GHz, 2.4 GHz
	Signal Rate	867 Mbps (5 GHz), 300 Mbps (2.4 GHz)
		Compatible with 802.11a/b/g/n/ac Wi-Fi standards
	Transmit Power	CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
		FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
	Wireless Modes	Enable/Disable Wireless Radio, WMM
		WEP, WPA/WPA2,
	Wireless Functions	WPA-PSK/WPA2-PSK
Software Features	WAN Type	Dynamic IP/Static IP/PPPoE
	Management	Parental Control
		Guest Network
	DHCP	Server, DHCP Client List, Address Reservation
	Dynamic DNS	Compatible with 15 more DDNS providers
	Guest Network	2.4 GHz guest network × 1
		5 GHz guest network × 1
	NAT	Port Forwarding, Port Triggering, UPnP, DMZ
	VPN Client	PPTP/L2TP/OpenVPN/WireGuard

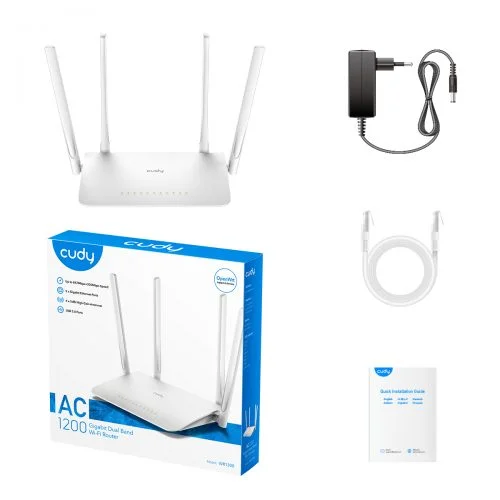

Others	Package Contents	AC1200 Wi-Fi Router
		Power Adapter
		RJ45 Ethernet Cable
		Quick Installation Guide
	System Requirements	Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
		Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
		Cable or DSL Modem
		Subscription with an internet service provider (for internet access)
