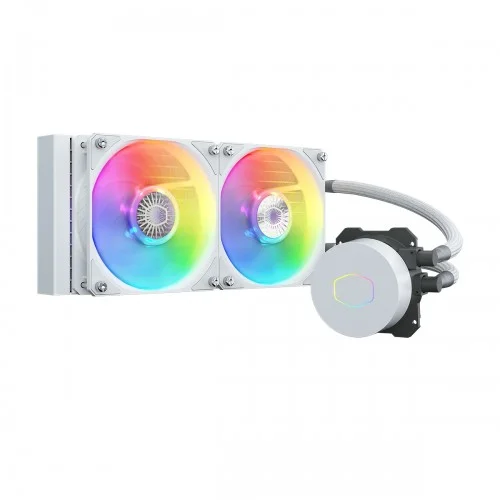

Cooler Master MasterLiquid ML240L V2 ARGB White Edition CPU

Cooler Master MasterLiquid ML240L V2 ARGB White Edition CPU

Description:

Update your Build with the newly designed pump that is built with PPS (Polyphenylene sulfide) and glass fiber for improved resistance to wide range of chemicals, moisture or water. Specially formulated Industrial Grade EPDM used for reinforced sealing for prevention of leakage. The more surface area the better the heat dissipation, with more than 25% increase in the surface area on the radiator for better cooling efficiency. Cooler Master Designed Air Balance Fan Blades for the most efficient balance between air flow and air pressure.New frame design with hollow corners for increased resistance and stability Innovative rifle bearing for quieter cooling performance. With included addressable RGB controller, you can choose your favorite color easily. It also support lighting RESET button of case.

Specification

Key Features
Type	Liquid Cooler
Fan Speed	650-1800 RPM ± 5%
Fan Airflow	62 CFM (Max)
Noise	8 - 27 dBA
Air Pressure	2.5 mmH₂O (Max)
Connector	FAN POWER CONNECTOR: 4-Pin (PWM) PUMP CONNECTOR: 3-Pin
Material	RADIATOR MATERIAL: Aluminum
Physical Specification
Dimension	RADIATOR DIMENSIONS: 277 x 119.6 x 27.2 mm PUMP DIMENSIONS: 79.9 x 76 x 47.1 mm
Supported Sockets
Intel	LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, LGA1200
AMD	AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
Warranty Information
Warranty	02 Years

Cooler Master MasterLiquid ML240L V2 ARGB Advantage:

Cooler Master ML240L has now released a new color variant, the Master Liquid L ARGB V2 White Edition. With the same enhanced features as its previous counterpart, the performance and design elements have been upgraded throughout. It features the redesigned 3rd generation Dual Chamber pump for improved cooling efficiency. Master Liquid ML240L  The radiator size has been increased for larger cooling surface area. The fans had been upgraded to the latest Sickle Flow 120 ARGB White Edition fans utilizing Air Balance fan blades, quieter than before without compromising air flow and pressure

• Fan Speed - 1800 RPM
• LED Color - ARGB
• Cooler Type - Liquid CPU Cooler
• Supported Socket - LGA1700, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
• Fan Size (Height) - 120mm

Cooler Master MasterLiquid ML240L Key of Features:

• 3rd generation pump.
• Improved SickelFlow fans.
• Two RGB lighting zones.
• Included RGB lighting controller.

Cooler Master  Liquid ML240L Overview:

Apply thermal compound to the CPU IHS using your preferred method and then lower the block over the CPU and align the bracket holes with the threads of the standoffs. Now using the four thumbscrews, tighten the CPU block in position using an X pattern to evenly spread pressure over the CPU for optimal thermal plate contact. Now we can connect the two fan cables using the 4-pin PWM cable splitter, plug the fan splitter into the CPU_FAN header on the motherboard and connect the 3-pin pump cable to the CPU_OPT header. To install the RGB lighting, first, connect both the fan cables and the pump RGB cable to the provided 3-way RGB splitter cable and for motherboard RGB control simply attach the female end of the splitter cable to the 4-pin motherboard RGB header. Alternatively, if your motherboard does not support RGB lighting, connect the RGB splitter cable and the Molex power adaptor to the provided RGB controller and then connect the Molex adaptor to a spare Molex connector coming from your PC power supply. Overall, the installation process is relatively simple, the use of standard cable connections by Cooler Master means the cables are simple to connect and the whole installation process should only take approximately 15-20 minutes.To measure the performance of CPU coolers, we devised an easily repeatable series of tests. The only variable is the coolers themselves to ensure the results can be accurately compared against one another.

Test Rig

To reflect current hardware demands, the KitGuru test bench comprises of an Intel Z390 platform and included is the Intel Core i9-9900k CPU, mated with a Gigabyte Z390 Aorus Master motherboard and 16GB (2x 8GB modules) Patriot Viper RGB RAM running at 3600mhz CL16. Our storage device is a Corsair Force LE 120GB SATA SSD. Power to the test system is managed by a Seasonic Prime PX-850 PSU. Corsair TM30 thermal compound is used at all times to ensure consistency.

Thermal Testing Procedure

The procedure will consist of several tests that will produce six temperature readings for each cooler. The data can then be used to compare thermal dissipation performance..To simulate overclocked frequency, we will then lock the Core i9-9900k to 4.7GHz on all cores with a 1.20V Vcore and run the same idle and load test again. To measure an extreme overclocking situation, we will lock the Core i9-9900k frequency to 4.9GHz on all cores with 1.30V Vcore and run the tests one final time – this should push the limits of the cooling performance of even the very best CPU coolers.

 Master Liquid ML240L Review :

However, as with all of our reviews, we wipe the slate clean and will look at this new cost-effective AIO from Cooler Master with a completely open mind. According to Cooler Master, this refresh of the ML240L series is not just an aesthetic update, the ML240L V2 RGB has had an extensive rework of both the pump and the fans, so it will be very interesting to see what effect these improvements have had on thermal performance. The ML240L V2 is equipped with Cooler Master’s latest 3^rd generation pump that features an increased chamber capacity for improved volume and liquid exchange between chambers, due to reduced resistance. Impeller blades have been extended and the curvature has been enhanced to improve water flow and heat dissipation. A new Tri-Phase motor with silent driver should also help lower noise levels.
