COOLER MASTER MASTER LIQUID ML240P MIRAGE AIO LIQUID COOLER

Specification:

Key Features
Fan Speed	2000 ±10% RPM (Max)
Fan Airflow	60.95 CFM (Max)
Noise	27dBA (1m)
Air Pressure	2.33 mm H2O (Max)
Connector	4-Pin (PWM), ARGB 3-Pin
Material	Aluminum
Physical Specification
Dimension	(L X W X H) : 120 x 120 x 26 mm / 4.7 x 4.7 x 1 inch
Weight	468g
Supporting Motherboards	LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, ●︎ LGA1155, LGA1156,LGA1366, LGA775, TR4, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
Warranty Information
Warranty	02 Years Warranty

Cooler Master Master Liquid ML240P Mirage AIO

The ML240P Mirage comes bundled with mounting hardware for nearly every conceivable AMD and Intel desktop processor over the last decade, including AMD’s high-end desktop part (HEDT), Thread ripper. Cabling for PWM fan control and RGB splitters is included, and Cooler Master also supports standard 4-pin RGB pinout in case you wish to utilize your motherboard’s lighting controller. Cooler Master’s ML240P Mirage 240mm AIO cooler hits the shelves with a new addition to the typical RGB lighting treatment; a clear view into the soul of any liquid cooler – the pump impeller. The clear pump housing top allows a direct view of the impeller, bathed in addressable RGB, which accents the perimeter of the crystal-clear centerpiece to create a visual ‘mirage’ lighting effect. The ML240P Mirage comes bundled with mounting hardware for nearly every conceivable AMD and Intel desktop processor over the last decade, including AMD’s high-end desktop part (HEDT), Thread ripper. Cabling for PWM fan control and RGB splitters is included, and Cooler Master also supports standard 4-pin RGB pinout in case you wish to utilize your motherboard’s lighting controller.

Cooler Master Master Liquid ML240P Mirage AIO Liquid Cooler  Advantage :

After removing the protective foil, we can see the flawless contact surface of the copper heat sink, which has an ultra-fine internal structure to improve heat dissipation by the passing water. The contact area to the CPU Heats preader (IHS) is 40x40mm and completely covers the common desktop CPU Heats preaders. But despite the advertised compatibility to the AMD TR4 socket, we are at least concerned that the cooler can actually cool an AMD Threadripper CPU adequately, as the cooling plate is significantly smaller than the IHS mentioned CPU series. Individual cores outside the cold plate area could heat up more, possibly reducing the CPU’s performance.

Master Liquid ML240P Mirage AIO Features:

Let’s start with the construction of the fans. They have rubber elements on both sides for decoupling in the corners. The fan frame is black and the cable cores are also black throughout as well as extra black sheathed. The fan blade design, on the other hand, is somewhat unusual. A continuous ring encloses all fan blades and connects them to increase stability, which ultimately minimizes vibrations and noise during operation .The cooling block with integrated pump has a conical housing made of stable, partly glass-fibre reinforced plastic with a pleasing surface design. The transparent, convex cover through which the pump wheel can be seen sits on top. The tubes are swiv elling, double-walled and have a length of 450mm. The RGB cable is fixed to the cooling block and cannot be replaced.

Cooler Master M Liquid ML240P Liquid Cooler  View:

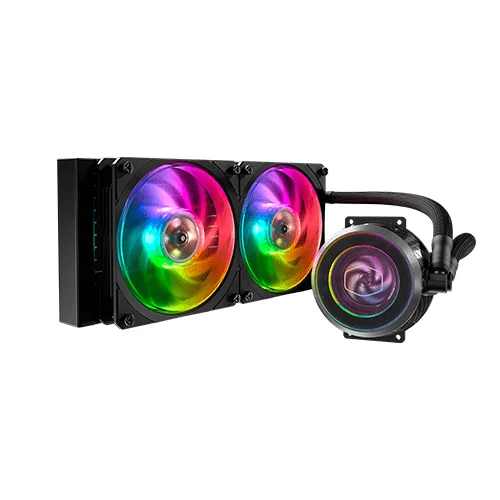

Cooler Master’s ML240P Mirage 240mm AIO cooler hits the shelves with a new addition to the typical RGB lighting treatment; a clear view into the soul of any liquid cooler – the pump impeller. The clear pump housing top allows a direct view of the impeller, bathed in addressable RGB, which accents the perimeter of the crystal-clear centerpiece to create a visual ‘mirage’ lighting effect. And on the other side are system connections. If you connect the reset button of the PC case to the input “Case-Reset” and then connect the mainboard to “MB-Reset”, you can change the RGB functions with the reset button. Only a 5 seconds lasting pressure on the reset button would reset the PC. The required connection cables are included in the scope of delivery.

Cooler Master M Liquid ML240P Mirage AIO Liquid Cooler  Review :

Today on OCinside.de we tested the Cooler Master MasterLiquid ML240P Mirage AIO water cooling with addressable RGB lighting, transparent pump housing and special fan design. How it stands up to other coolers and what RGB effects it has to offer, we show in the following review. Delivery of the Cooler Master Master Liquid ML240P Mirage .The Cooler Master Master Liquid ML240P Mirage comes in a high quality printed cardboard box. On the front we already see a photo of the spectacular, transparent pump and a list with which RGB systems of the different Mainboard Manufacturer the AIO water cooling is compatible. The addressable RGB systems are supported by ASRock, ASUS, MSI and Gigabyte. But even if your motherboard has no RGB control implemented, the Cooler Master Master Liquid ML240P Mirage can be used without restrictions thanks to the included RGB controller and the free MasterPlus+ software available on the Cooler Master website. On the back of the package, the characteristic features of the Cooler Master Master Liquid ML240P Mirage are listed.

These include.

• – the transparent pump housing
• – the addressable LEDs
• – the special fan design with connected fan blades
• – the 240mm aluminium radiator
• – and the supplied RGB controller

The most important dimensions of the radiator and the pump are also sketched. https://youtu.be/Ed5eUnn_9GE
