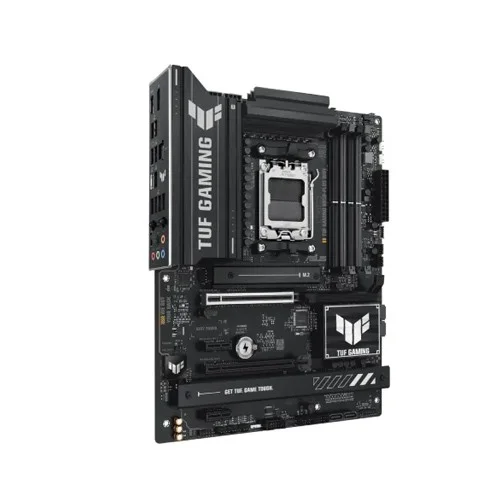

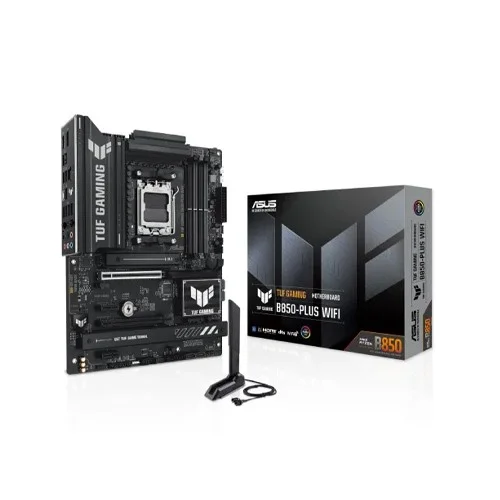

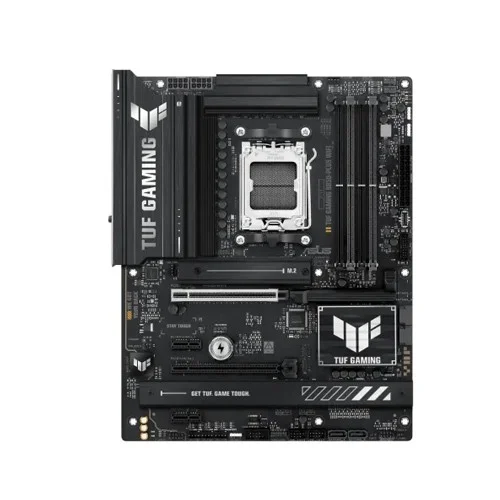

ASUS TUF GAMING B850-PLUS WIFI AMD Ryzen AM5 ATX Gaming Motherboard
- Stock: In Stock
- Model: TUF GAMING B850-PLUS WIFI
- Product id: 27808
- Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
- Supported RAM: 4x DDR5, up to 256GB, 8000+ MT/s (OC)
- Graphics Output: 1x HDMI, 1x Display Port
- Features: Realtek 2.5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4
| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Expansion Slots | |
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x1 slot |
| M.2 Socket | 3 x M.2 |
| Memory | |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Maximum Memory | 256GB |
| Graphics | |
| Graphics | 1 x DisplayPort* 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| USB (s) | Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A. |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth v5.4 |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Specifications vary by CPU types. ** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs. AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
| Audio | 5 x Audio jacks |

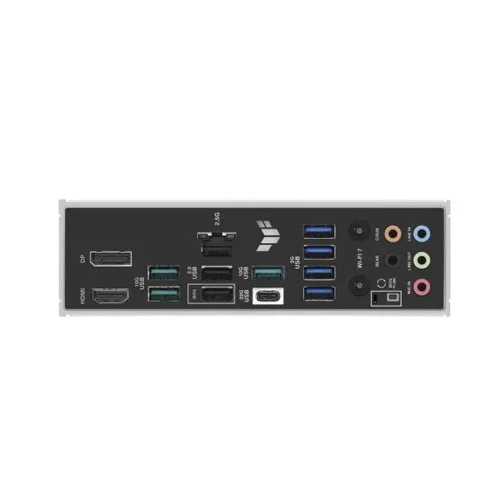

| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| Others | |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen2 headers |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Warranty Information | |
| Warranty | 3 Years Warranty |
ASUS TUF GAMING B850-PLUS WIFI AMD Ryzen AM5 ATX Gaming Motherboard
ASUS TUF GAMING B850-PLUS WIFI is a powerful AMD Ryzen AM5 ATX gaming motherboard designed for durability, high performance, and seamless connectivity. Built for the latest AMD Ryzen 9000, 8000, and 7000 Series processors, this motherboard ensures smooth and efficient computing, making it an excellent choice for gamers and PC enthusiasts.With DDR5 memory support of up to 256GB and 8000+ MT/s (OC) speeds, this motherboard provides an optimal gaming and multitasking experience. The PCIe 5.0 x16 slot allows high-speed graphics card performance, while the three M.2 slots and four SATA 6Gb/s ports enable fast and versatile storage options.For connectivity, the ASUS TUF GAMING B850-PLUS WIFI offers an extensive selection of USB ports, including USB 20Gbps Type-C, USB 10Gbps, and USB 5Gbps options. The inclusion of Realtek 2.5Gb Ethernet, Wi-Fi 7, and Bluetooth 5.4 ensures a stable and fast internet connection for gaming, streaming, and productivity.The motherboard is designed with TUF durability, featuring military-grade components, reinforced PCIe slots, and an advanced cooling system with VRM heatsinks and M.2 heatsinks to maintain stability under heavy workloads. The Realtek ALC1220P 7.1 surround sound enhances the gaming experience with immersive audio.Other standout features include ASUS Aura Sync RGB support, BIOS FlashBack, Q-Design for easy installation, and advanced security with TUF LANGuard and ESD Guards. Whether you’re building a new gaming rig or upgrading your existing setup, the ASUS TUF GAMING B850-PLUS WIFI delivers reliability, high-speed performance, and excellent connectivity, making it a top choice for serious gamers and PC builders.
Features
- Supported CPU: AMD Socket AM5 for Ryzen 9000, 8000 & 7000 Series
- Memory: 4x DDR5 slots, up to 256GB, 8000+ MT/s (OC)
- Graphics Output: 1x HDMI, 1x DisplayPort (8K@60Hz, 4K@60Hz)
- Expansion Slots: PCIe 5.0 x16, PCIe 4.0 x16, PCIe 4.0 x1
- Storage: 3x M.2 slots, 4x SATA 6Gb/s ports, RAID support
- Networking: Realtek 2.5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4
- Audio: Realtek ALC1220P 7.1 Surround Sound Codec
- USB Ports: USB 20Gbps Type-C, USB 10Gbps, USB 5Gbps, USB 2.0
- Cooling & Durability: VRM & M.2 heatsinks, TUF military-grade components
- Special Features: ASUS Aura Sync RGB, Q-Design, BIOS FlashBack
