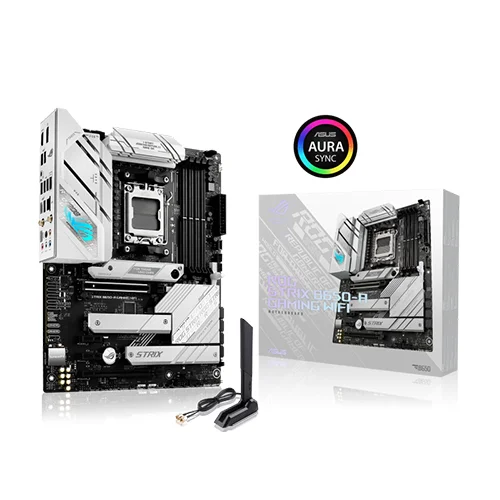

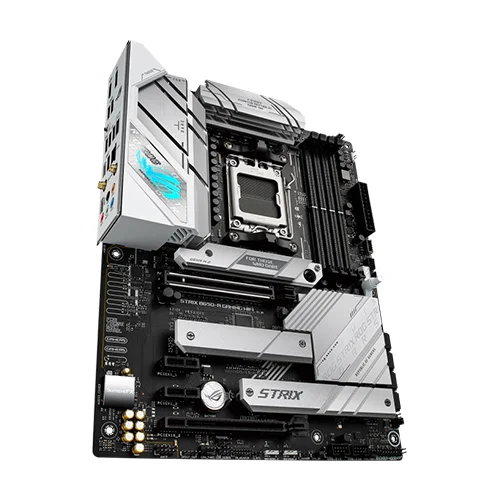

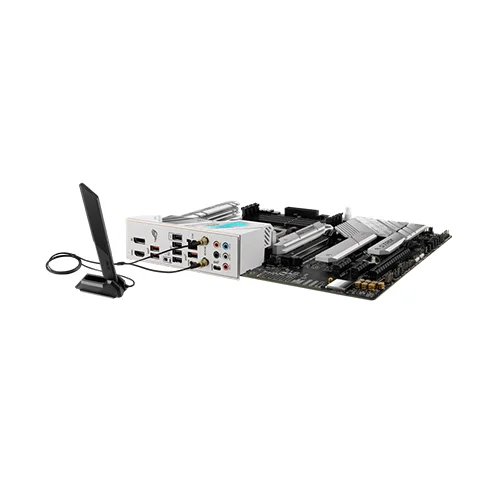

ASUS ROG STRIX B650-A GAMING WIFI AM5 ATX MOTHERBOARD

ASUS ROG STRIX B650-A GAMING WIFI AM5 ATX MOTHERBOARD

ROG STRIX B650-A GAMING WIFI

The ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest WiFi 6E networking fleshes out the futuristic feature set.

PCIE 5.0

Blazing fast storage is at your command with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAIDXpert2. The top PCIe 4.0 x16 SafeSlot supports heavy graphics cards and features QRelease for easy upgrades.

POWER ARCHITECTURE

12 + 2 power stages rated to 60A each deliver ample current in order to drive AMD Ryzen 7000 Series processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS

Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

SIX-LAYER PCB

A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

DDR5 STRENGTH

For those who want to fly past stock DDR5 speeds, the Strix B650-A is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

VRM HEATSINKS

Two VRM heatsinks, one expanding underneath the I/O shroud, provide ample surface area and mass to handle the power needs of high performance AMD Ryzen 7000 Series processors.

HIGH-CONDUCTIVITY THERMAL PADS

High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures

WIFI 6E

Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

Intel 2.5G Ethernet

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel@ 2.5 Gbps Ethernet.

AUDIO - SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B650-A implementation features the ALC4080 codec for highresolution playback up to 32- bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive highfidelity acoustics to a wide variety of speakers and headsets.

AURA SYNC

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

CERTIFIED COMPATIBILITY

The ROG Strix B650-A bears the same mounting hole alignment as AM4 platforms, so it is backward compatible with many existing coolers, including all AIO offerings from ASUS and ROG.

INTELLIGENT CONTROL

This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
