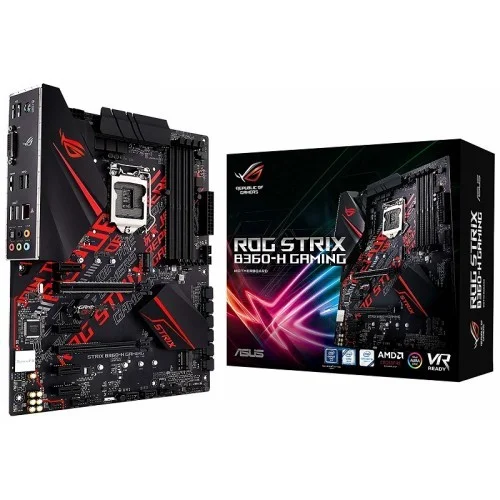

ASUS ROG STRIX B360-H GAMING 8TH GEN ATX MOTHERBOARD

Out Of Stock

ASUS ROG STRIX B360-H GAMING 8TH GEN ATX MOTHERBOARD

Stock: Out Of Stock
Model: ASUS ROG STRIX B360-H
Product id: 19210

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

• Chipset: Intel B360 • Intel Socket 1151 for 8th Gen Core Processors • 4 x DIMM, Max. 64GB DDR4 • 6 x PCIe Slots

ASUS ROG STRIX B360-H GAMING 8TH GEN ATX MOTHERBOARD

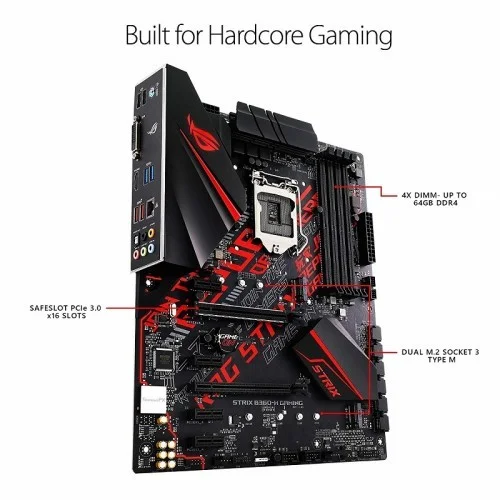

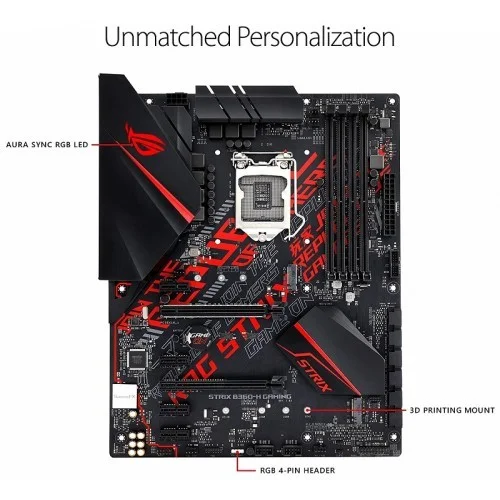

Asus ROG STRIX B360-H GAMING 8th gen Aura Sync RGB LED lighting motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This pre-mounted I/O shield board has dual channel DDR4 maximum 64GB memory and also the capability of fast dual M.2 Socket 3 and USB 3.1 Gen 2 interface. If we consider the graphics, it will support Intel HD graphics having the maximum resolution of 4096 x 2160 @ 24 Hz for HDMI and 920 x 1200 @ 60 Hz for DVI-D ports. This Intel Optane memory ready board has 6 x PCIe slots, Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY), ROG GameFirst Technology & Anti-surge LANGuard and ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A.

Specification:

Basic Information
Supported CPU	Intel® Socket 1151 for 8th Generation Core™ Processors
Chipset	Intel® B360
BIOS	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF and F9 Search
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	2 x PCIe 3.0/2.0 x16 (x16/x4) 1 4 x PCIe 3.0/2.0 x1 2
M.2 Socket	1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)3 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)4
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Maximum Mamory	64GB
Graphics
Graphics	Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

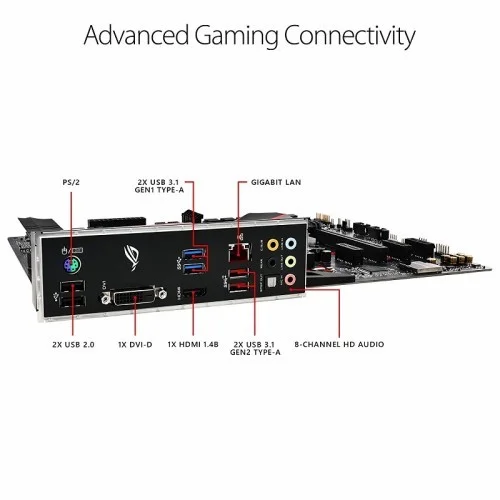

Connector & Ports
HDMI	1 x HDMI
USB (s)	Intel® B360 Chipset : *6 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red) Intel® B360 Chipset : 4 x USB 3.1 Gen 1 port(s) Intel® B360 Chipset : 6 x USB 2.0 port(s)
LAN Port (s)	ntel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard ROG GameFirst Technology
Supported Storage	Intel® B360 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)3 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)4 6 x SATA 6Gb/s port(s) Intel® Optane™ Memory Ready *5
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link
Internal I/O Ports	1 x AAFP connector 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Thermal sensor connector
Warranty Information
Manufacturing Warranty	03 Years
