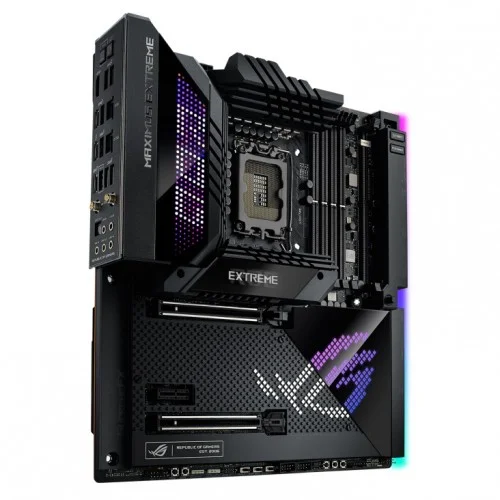

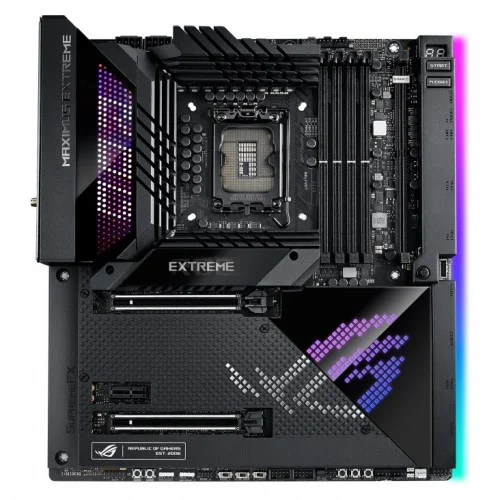

Asus ROG MAXIMUS Z690 EXTREME 12th Gen E-ATX Motherboard
Discontinued
Asus ROG MAXIMUS Z690 EXTREME 12th Gen E-ATX Motherboard
- Stock: Discontinued
- Model: ROG MAXIMUS Z690 EXTREME
- Product id: 21772
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- • Socket LGA1700 for 12th Gen Intel Core, Pentium Gold & Celeron Processors • 24+1 teamed power stages rated for 105 A • Cold forged heatsink, enlarged VRM heatsinks • PCIe 5.0, Gen 5 M.2 slots
Quick Compare
| Product Details | ||||
| Product | Asus ROG MAXIMUS Z690 EXTREME 12th Gen E-ATX Motherboard | Esonic H61FHL Motherboard | Starex ST-H61 Motherboard | HUANANZHI H61 M.2 Motherboard |
| Image |  |
 |
 |
 |
| Price | 0৳ | |
|
|
| Model | ROG MAXIMUS Z690 EXTREME | Esonic H61FHL | Starex ST-H61 | HUANANZHI H61 |
| Brand | Esonic | STAREX | HUANANZHI | |
| Availability | Discontinued | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Asus ROG MAXIMUS Z690 EXTREME 12th Gen E-ATX Motherboard The Asus ROG MAXIMUS Z690 EXTREME 12th Gen E-ATX Motherboard supports Socket LGA1700 for 12th Gen Intel Core, Pentium Gold & Celeron Processors. It features ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking, and Two-Way AI Noise-Cancelation for easy configuration. It has 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors. 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors. It comes with onboard Wi-Fi 6E, Marvell AQtion 10Gb, Intel 2.5Gb Ethernet, and ASUS LANGuard. It delivers the fastest Gaming Connectivity: PCIe 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt 4 support, rear triple USB Type-C ports. It also has ROG SupremeFX ALC4082 codec with ESS ES9018Q2C DAC for high-fidelity audio. It has AniMe Matrix LED display, 2” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers. The Asus ROG MAXIMUS Z690 EXTREME comes with 3 years of warranty. Specification Basic Information Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors*Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Chipset Z690 BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS Form Factor EATX 30.5cm x 27.7cm Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playbackAudio Features - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover Expansion Slots PCI Intel 12th Gen Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**Intel Z690 Chipset 1 x PCIe 3.0 x1 slot M.2 Socket Supports 5 x M.2 slots Memory Type DDR5 Slots 4 x DIMM Supported Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II Maximum Memory 128GB Graphics Graphics 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs Connector & Ports HDMI 1 x HDMI port USB (s) Rear USB: Total 10 ports 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C)Front USB: Total 10 ports 1 x Thunderbolt 4 connector (1 x USB Type-C) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports LAN Port (s) 1 x Intel 2.5Gb Ethernet 1 x Marvell 10Gb Ethernet TUF LANGuard Wireless Communication module Intel Wi-Fi 6E Supported Storage Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110*** - Intel 12th Gen processors support PCIe 5.0 x4 mode. M.2_2 slot (Key M), type 2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset** M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes) DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports**** * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. ***M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. ****RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports. Audio 1 x Front Panel Audio header (AAFP) Internal I/O Ports 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow headerPower related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connectorStorage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s portsUSB 1 x Intel® Thunderbolt 4 port (USB Type-C®) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 1 x Addressable Gen 2 header 1 x AURA RGB header 1 x BIOS Switch button 2 x BCLK button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x Osc sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x V_Latch switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin) Warranty Information Manufacturing Warranty 3 years Others Special Features Extreme OC Kit - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Steel backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - ROG AURA sync backplate - AURA RGB header(s) - Addressable Gen 2 header(s) Dual BIOS OLED 2" Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W ASUS HYDRANODE - 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P) * Visit ASUS Website for the latest compatibility list. Bundled Software ROG Exclusive Software - GameFirst VI - ROG CPU-Z - ROG True Voltician - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - OLED Display - AniMe MatrixTM LED Display AI Suite 3 - Easy Optimization with AI Overclocking TPU EPU DIGI+ Power Control Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 ASUS ROG MAXIMUS Z690 Series Motherboard in Bangladesh 2022 It's clear that ASUS has put most of the focus on users planning to buy DDR5 memory for Alder Lake, but it does have a small selection of DDR4 supported Z690 models. The most premium of these is the ASUS ROG Strix Z690-A Gaming WIFI D4 with a Wi-Fi 6 CNVi, USB 3.2 G2x2 Type-C support, four PCIe 4.0 x4 M.2 slots, as well as a premium SupremeFX ALC4080 HD audio codec and Savitech amplifier pairing for the onboard audio. Its TUF Gaming series occupies the mid-range with a model with WIFI and without, but with four PCIe 4.0 x4 M.2, and dual Type-C connectivity on the rear panel (3.2 G2x2 & G2). Operating as mid-range and entry-level models is the Prime series, with the Z690-P WIFI D4 offering Wi-Fi 6, or without this for a slightly cheaper price. ASUS doesn't have any DDR4 enabled Z690 models in mini-ITX, but for users looking to build a smaller system with Alder Lake and DDR4, the ASUS Prime Z690M Plus D4 offers three PCIe 4.0 x4 M.2 slots, four SATA, and support for DDR4-5333 memory out of the box. MOTHERBOARD MODEL SIZE Asus ROG MAXIMUS Z690 APEX 12th Gen ATX Motherboard ATX Asus ROG MAXIMUS Z690 HERO 12th Gen ATX Motherboard ATX Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard ATX Asus ROG MAXIMUS Z690 EXTREME 12th Gen E-ATX Motherboard E-ATX Asus ROG MAXIMUS Z690 EXTREME GLACIAL 12th Gen E-ATX Motherboard E-ATX .. | Specifications BASIC INFORMATION Brand Esonic H61-FEL MOTHERBOARD BASIC INFO Supported CPU Intel Core ( i3,i5,i7) 2nd & 3rd Gen || Dual Core 2nd and 3rd Gen Chipset H61 Form Factor ATX MOTHERBOARD MEMORY INFO Slots 2 x DDR3 DIMM Slot Supported Memory Supports DDR3 1333 / 1600 Maximum Memory 16 GB CONNECTOR & PORTS (MB) LAN Port (s) LAN 10/100M Ethernet Supported Storage Serial ATA WARRANTY INFORMATION Warranty 1 Year Esonic H61FHL Motherboard When You want to build a desktop computer at cheap prices like 10000 takas or less you need to consider a motherboard that price range from 3800-4000 Taka. Here You Get an Esonic H61-FEL Motherboard with 1 Year Replacement Warranty. .. | Specification General Brand STAREX Model STAREX H61 Specification Chipset Intel H61 Data Rate DDR3 Number of Memory Slots 2 Motherboard Memory Technology DDR3 Supported Starex H61 Support for Intel@ Core™ i7 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® Processors Processors in the LGA1155 package L3 cache varies with CPU Front Side Bus FSB Support FSB 1333/1600 Max Memory Support Dual Channel DDR3 1333/1600 MHz Memory, 2 x DDR3 DIMM Memory Slot, Maximum Support up to 8 GB Memory Onboard Video Intel Extreme Graphics, On Board Graphic Max Onboard Audio HD Audio Onboard Lan 10/100 Controller .. | Specification Mainboard HUANANZHI H61 Platform Intel® H61, LGA1155 Memory 2 x DIMM, Max. 16GB, DDR3 1600/1333 MHz, Supports non-ECC Memory, Dual Channel Memory Architecture Graphic Integrated Graphics Processor 1 x VGA port 1 x DVI-I port 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards Audio Realtek® ALC662 5.1-Channel, High Definition Audio CODEC LAN Realtek® RTL8105, 1 x 10/100 Mbit/s LAN Controller(s) Expansion Slots 1 x PCIe 3.0 x16 1 x PCIe x1 Storage 4 x SATA2.0 (3GB/s) port(s) Internal I/O Ports 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) Back I/O Ports 1 x PS/2 Keyboard and Mouse port 1 x LAN (RJ45) port(s) 6 x USB 2.0 3 x Audio jack(s) Form Factor Micro ATX Form Factor; 21.5cm x 16.8cm Packing list 1 x I/O Shield, 1 x SATA Cable, 1 x Manual .. |
