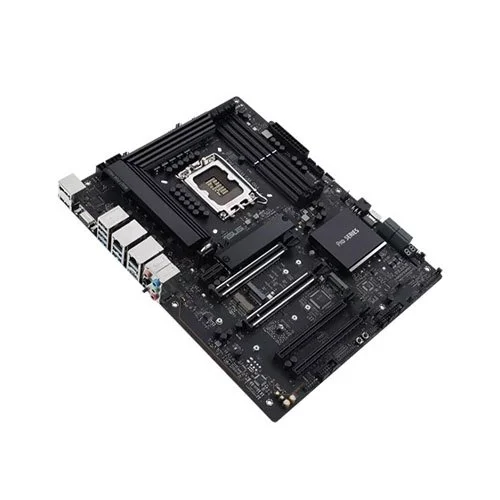

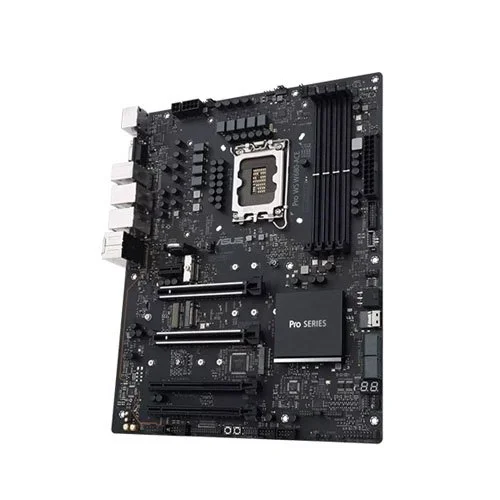

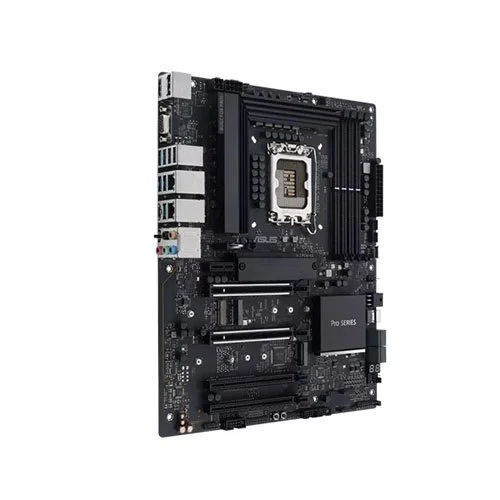

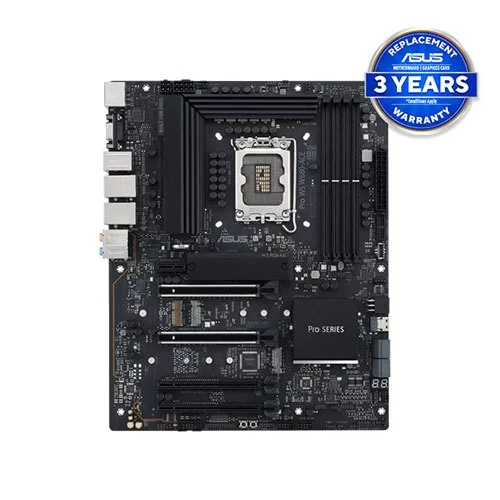

ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard
- Stock: Up Coming
- Model: ASUS Pro WS W680-ACE
- Product id: 26361
- Socket: LGA1700
- M.2 slots: 3 x M.2 slots
- Memory: 4 x DIMM, Max. 192GB, DDR5
- USB: 7x Front ports, 8x Rear ports
| Key Features | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Basic Information | |
| Memory | 4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory*
Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Chipset | Intel W680 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" |
| Storage | Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel W680 Chipset** - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)*** * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. *** SlimSAS slot can support up to 4 SATA devices via a transfer cable. the cable is purchased separately. |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x Q-connector 1 x M.2 Rubber Packages 2 x Screw package for M.2 SSD 1 x Screw package for M.2 Key E 1 x I/O Shield |
| General Information | |
| Software | Intel vPro support ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 |
| Graphics | |
| Graphics | 1 x DisplayPort** 1 x HDMI port*** 1 x VGA port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 8K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. |
| Connector & Ports | |
| USB (s) | Rear USB (Total 8 ports) - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) - 2 x USB 2.0 ports (2 x Type-A) |
| Software | |
| Operating System | Windows 11, Windows 10 64-bit |
| External Features | |
| Expansion Slots | Intel 13th & 12th Gen Processors*
- 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode)
Intel W680 Chipset - 2 x PCIe 3.0 x16 slots (supports x4 mode) - 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/). |
| Network | |
| Ethernet Port | 2 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Warranty Information | |
| Warranty | 3 Years Replacement Warranty |
ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard
ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard, a powerhouse of performance and reliability designed to meet the demanding needs of professionals and content creators. This motherboard combines cutting-edge technology, robust construction, and a comprehensive set of features to deliver exceptional performance and versatility. The ASUS Pro WS W680-ACE is built to support the latest 12th generation Intel Core processors with its LGA1700 socket. This means you can harness the power of the most advanced CPUs available, providing you with the processing power needed to tackle complex tasks and handle resource-intensive applications with ease. Whether you're rendering 3D graphics, editing high-resolution videos, or running simulations, this motherboard ensures smooth and efficient performance. Designed for professionals, the Pro WS W680-ACE offers an extensive range of connectivity options. With multiple PCIe 4.0 slots, USB 3.2 Gen 2 ports, and Thunderbolt 4 support, you have the flexibility to connect a wide range of devices and peripherals. Whether you need to connect high-speed storage, multiple graphics cards, or external displays, this motherboard has you covered. When it comes to storage, the Pro WS W680-ACE doesn't disappoint. With multiple M.2 slots and support for RAID configurations, you can create a lightning-fast storage solution that enhances productivity and workflow efficiency. Store and access your files with incredible speed, whether you're working with large datasets, editing raw footage, or managing extensive project files. Reliability is paramount in a workstation motherboard, and the Pro WS W680-ACE delivers. With its durable construction and industry-leading components, this motherboard is built to withstand the demands of heavy workloads and extended usage. ASUS' renowned engineering ensures stable performance, minimal downtime, and long-term reliability, giving you peace of mind when working on critical projects. In addition to its performance and reliability, the Pro WS W680-ACE also offers advanced security features. With built-in TPM 2.0, secure boot, and BIOS password protection, you can rest assured that your data and system are safeguarded against unauthorized access and potential threats. The ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard is the ultimate choice for professionals and content creators seeking uncompromising performance, extensive connectivity, and rock-solid reliability. Take your work to new heights with this exceptional motherboard and experience the power of seamless productivity and creativity.
