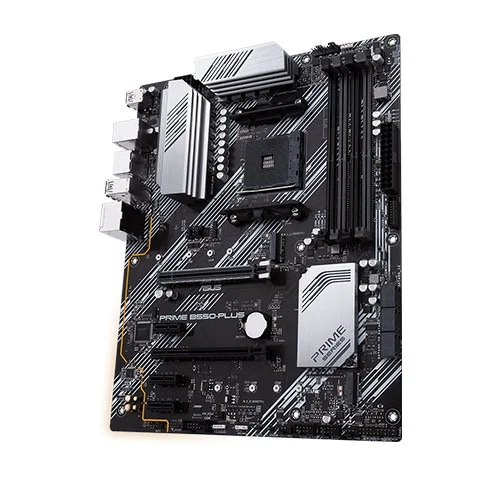

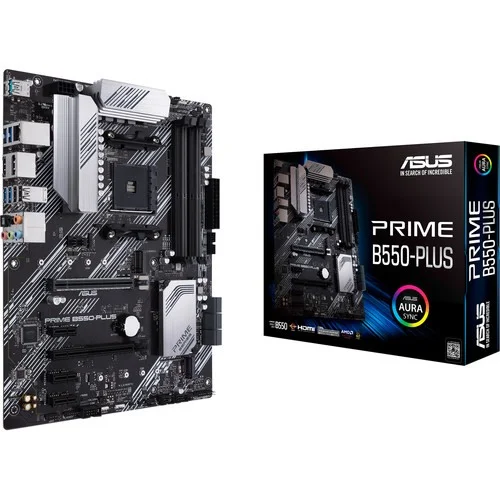

ASUS Prime B550 Plus AM4 ATX Motherboard

ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard

ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard From ASUS. Designed For The AM4 Socket And Using The B550 Chipset, This Motherboard Can Support Up To 128GB Of DDR4 RAM With Frequencies Up To 3200 MHz Or, If Overclocking, Up To 4800 MHz. Users Can Also Connect Up To Six SATA III Drives And Up To Two M.2 Drives Ranging From 2242 To 22110. One Of These Slots Benefits 3rd Gen AMD Processors With PCIe 4.0 X4 Performance, While The Other Slot Features PCIe 3.0 X4 Speeds. The Prime B550 Plus Also Supports RAID 0, 1, 10, And 5 For More Resilient Data Storage, And CrossFireX Allows For Multiple-GPU Setups. In Addition To One M.2 PCIe 4.0 X16 Slot And One M.2 PCIe 3.0 X16 Slot, Users Have Access To Three PCIe 3.0 X1 Slots. All-Around Energy Efficiency With The Energy Processing Unit, Or EPU, You'll Enjoy System-Wide Power Savings. The EPU Automatically Optimizes Power Consumption And Maximizes Savings With An Away Mode. Flexible Cooling Controls ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard Fan Xpert 4 Software Provides Comprehensive Control Over Fans, Water Pumps, And All-In-One Or AiO Coolers. Whether Cooling With Air Or Water, An Auto-Tuning Mode Allows You To Configure All Parameters With A Single Click. There's Also An Extreme Quiet Mode That Reduces All Fan Speeds Below The Default Minimum To Keep Your System Quiet When Performing Light Tasks. Fans, Water Pumps, And AiO Coolers Can Also Be Controlled Via The UEFI BIOS. Digital Power Control The Digi+ Voltage Regulator Module Or VRM Delivers Real-Time Control Over Voltage Drop, Automatically Switching Frequency And Power-Efficiency Settings. It Also Allows You To Fine-Tune Your CPU For Stability And Performance. VRM Heatsink And Thermal Pads Two VRM Heatsinks With Thermal Pads Underneath To Improve Heat Transfer From The MOSFETs And Chokes For Better Cooling Performance. Cooler By Design The ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard Series Features Cooling Controls That Are Configurable Via Fan Xpert 2+ Software Or Via The UEFI BIOS. Furthermore, Each Header Can Dynamically Reference Three Thermal Sensors. And, With Fan Xpert 2+, You Can Map The Temperature Of Supported ASUS Graphics Cards To Optimize Cooling For GPU- And CPU-Intensive Tasks. The Prime B550-Plus Also Features A Dedicated PWM/DC Header For Self-Contained Water-Cooling Setups And Onboard Chassis Fan Headers Supporting PWM And DC Control. Connectivity Numerous USB Ports Support High-End Rigs Loaded With Peripherals, Including A USB Type-C And Type-A Connector With USB 3.2 Gen 2 Connectivity For Compatible Cases. The Prime B550-Plus Also Supports ThunderboltEX 3-TR, An Intel Certified Thunderbolt 3 Add-On Card That Enables Bidirectional Speeds Of Up To 40 Gb/S Via A Single Cable. Additionally, An Integrated Thunderbolt 3 Header Can Support Up To Six Devices In A Daisy-Chain And Provide Up To 100W Of Power To Fast-Charge Devices. Onboard M.2 PCIe 4.0 M.2 Slots Support Drives Up To 22110 And Provide NVMe SSD RAID Support For A Performance Boost. Create A RAID Configuration With Up To 64 Gb/S PCIe 4.0 Storage Devices To Take Advantage Of The 3rd Generation AMD Ryzen Platform. One M.2 Slot Supports PCIe 4.0 And One Supports PCIe 3.0. Optimized For Audio Audio Shielding Separates Analog And Digital Signal Domains, Reducing The Chance Of Multilateral Interference. There's Also Separate Layers For Left And Right Tracks, Ensuring Lower Crosstalk Between Audio Paths. Aura Sync ASUS Aura Offers Full RGB Lighting Control With Functional Presets For RGB LED Strips Connected To The Onboard RGB Headers. And, It Can All Be Synced With Aura-Capable Hardware. Addressable Gen 2 RGB Header The Addressable Gen 2 RGB Header Is Now Capable Of Detecting The Number Of LEDs On Second-Gen ARGB Devices, Allowing The Software To Tailor Lighting Effects To Specific Devices. This Header Also Offers Backward-Compatibility With Existing Aura RGB Gear. Armoury Crate Armoury Crate Is A Software Utility Designed To Give You Centralized Control Of Supported Products. From A Single Interface, Armoury Crate Allows You To Customize RGB Lighting And Effects For Compatible Devices In Your Build. The Software Also Provides Control Of Settings For ASUS Products, Including Keyboard And Mouse Preferences. Armoury Crate Even Features Dedicated Product Registration And Highlight To Help You Stay In Touch With The ASUS Community.

ASUS Prime B550 Plus Feature

• AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
• Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
• Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware

ASUS Prime B550 Plus Review

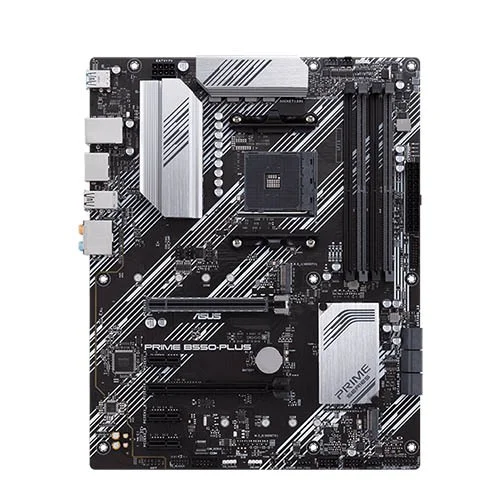

The Prime line of motherboards now sits as ASUS’ budget line, as an entry point into the market. The focus of Prime is on a simple polished aesthetic, which is why we’re going to see a good amount of polished metal designs, and in the case of the ASUS Prime B550-Plus, the white lines on the motherboard this time go from top right to bottom left. It’s good to see we still have multiple power delivery heatsinks here, even if they’re not connected by a heatpipe, but the design across the PCB carries over across the heatsink in order to keep the continuity. The CPU is powered by a single 8-pin to the top left, and the socket has access to four 4-pin headers within easy reach. The memory slots are again single sided latch designs, despite the main PCIe slot being further way than usual. On the right hand side of the board is a 24-pin ATX power connector, a USB 3.0 header, and six SATA ports. For the PCIe layout, at the top is the PCIe 4.0 x4 M.2 slot, without a heatsink cover. Next is the PCIe 4.0 x16 full-length slot, with additional reinforcement. The board also has a full-length PCIe 3.0 x4 slot from the chipset, and below the chipset heatsink is a PCIe 3.0 x4 M.2 slot, also without a heatsink. ASUS’ Prime boards use ALC887 audio codecs rather than the S1200A custom ones, but here we get some PCB separation in built in LEDs as well. Along the bottom of the board there is a Thunderbolt header, a COM header, RGB LED headers, a Clear CMOS header, a thermocouple header, two additional 4-pin fan headers, and two USB 2.0 headers. On the rear panel there is a USB 3.2 Gen 2 Type-A port, a USB 3.2 Gen 2 Type-C port, a gigabit Ethernet port (Realtek RTL8111H), four USB 3.2 Gen 1 ports, a DisplayPort, a HDMI video output, two USB 2.0 ports, and the audio jacks.

Specification:

Basic Information
Supported CPU	Build-in AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
Chipset	AMD B550
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1
M.2 Socket	3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DDR4 memory slots
Supported Memory	3rd Gen AMD Ryzen Processors 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory 3rd Gen AMD Ryzen with Radeon Graphics Processors 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum Mamory	128GB
Graphics
Graphics	1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI	1 x HDMI 2.1(4K@60HZ)
Display Port (s)	1 x DisplayPort 1.2
USB (s)	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s)	Realtek RTL8111H ASUS LANGuard
Supported Storage	Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
Warranty Information
Manufacturing Warranty	03 Years Warranty
Others
Special Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - SafeSlot AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header
