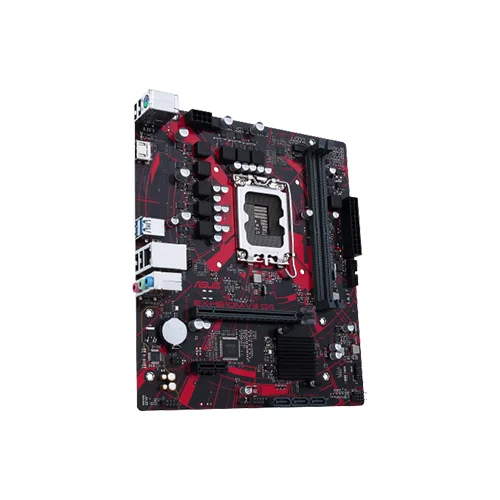

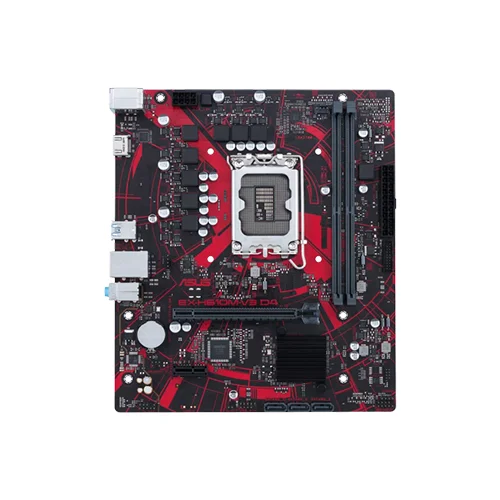

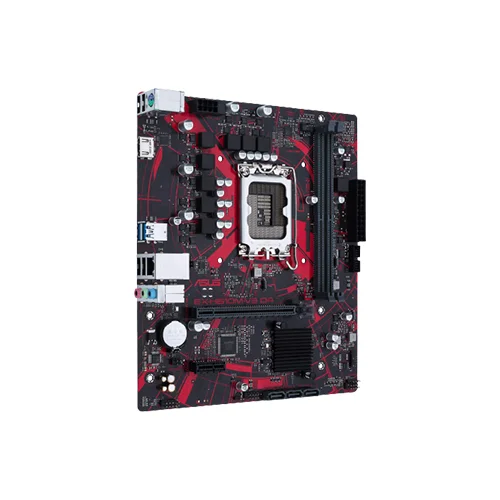

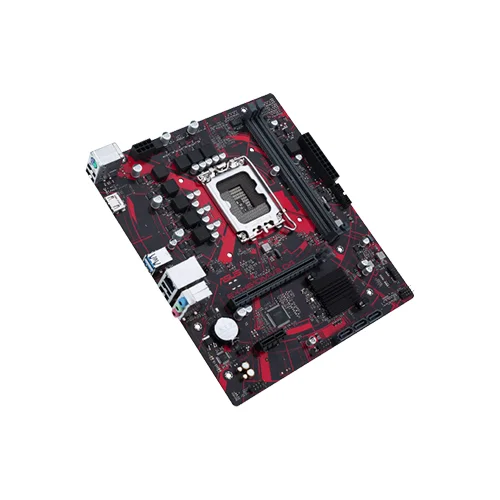

Asus EX-H610M-V3 D4 12th & 13th Gen mATX Motherboard




-23 %
Out Of Stock




Asus EX-H610M-V3 D4 12th & 13th Gen mATX Motherboard
- Stock: Out Of Stock
- Model: EX-H610M-V3 D4
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Supported CPU: 13th Gen & 12th Gen, Pentium, Celeron Processors (LGA1700)
- Supported Memory: 2 x DIMM, Max. 64GB, DDR4
- Graphics Output: 1 x HDMI
- Realtek 1Gb Ethernet
Specification
Supported CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
Chipset | Intel H610 Chipset |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback"Audio Features - Audio Shielding - Dedicated audio PCB layers |
PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
Type | DDR4 |
Slots | 2 x DIMM |
Supported Memory | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
Maximum Memory | Max. 64GB |
Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
HDMI | 1 x HDMI port |
USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
LAN Port (s) | 1 x Realtek 1Gb Ethernet port |
Supported Storage | Total supports 3 x SATA 6Gb/s ports Intel H610 Chipset 3 x SATA 6Gb/s ports |
Audio | 3 x Audio jacks |
Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel headerBack Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Anti-moisture coating - USBGuard |
Manufacturing Warranty | 3 years warranty |
Asus EX-H610M-V3 D4 12th & 13th Gen mATX Motherboard
The Asus EX-H610M-V3 D4 is a micro ATX motherboard with an LGA 1700 socket built for 12th and 13th-generation Intel CPUs. PCIe 4.0, HDMI, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and Realtek 1 Gb Ethernet are among the features. The motherboard has a bright anti-moisture layer that adds endurance and protection against moisture. It also has USBGuard, which protects against power spikes. This motherboard is a superb choice for iCafés, custom-built gaming systems, and quality-conscious enterprises. Its features, such as LANGuard, SafeSlot Core+, and 5X Protection III, ensure continuous longevity.The stainless-steel rear I/O offers further corrosion resistance. Beyond VR-ready and Epic audio certified, the Asus EX-H610M-V3 D4 ensures an immersive gaming experience. In addition, the motherboard has been evaluated for compatibility with a broad range of peripherals, CPUs, memory modules, graphics cards, and top games. The ASUS iCafé LAB has verified the motherboard, confirming that it can handle reboot and diskless-diskless systems. The Asus EX-H610M-V3 D4 is a non-stop competitor for anybody searching for a trustworthy micro ATX motherboard, thanks to its unrivaled durability, compatibility, and gaming capabilities.
