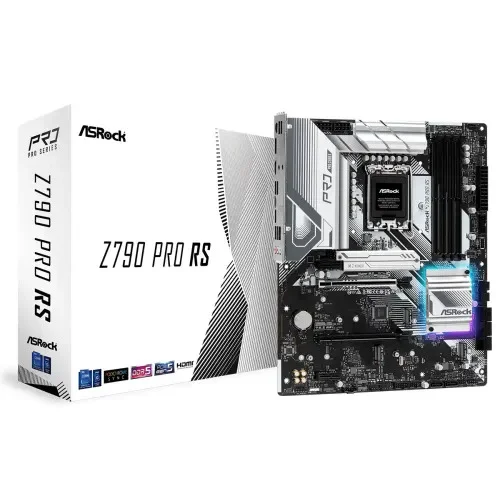

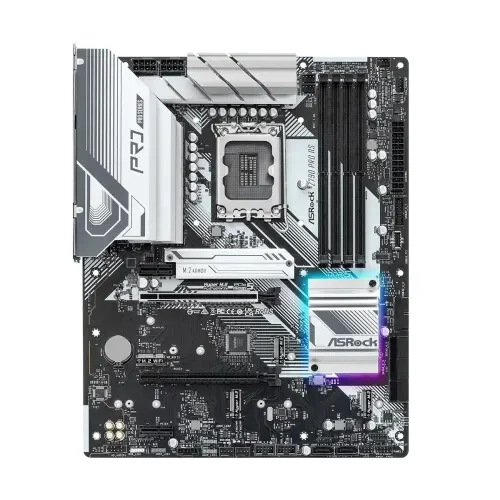

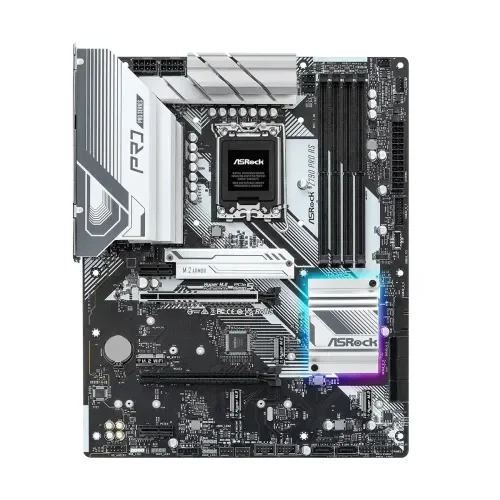

ASRock Z790 Pro RS ATX Motherboard
Save: 3591৳ (11%)
ASRock Z790 Pro RS ATX Motherboard
- Stock: In Stock
- Model: Z790 Pro RS
- Product id: 24007
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Supported CPU: 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700)
- Supported RAM: 4 x DDR5 DIMMs, up to 6800+(OC)

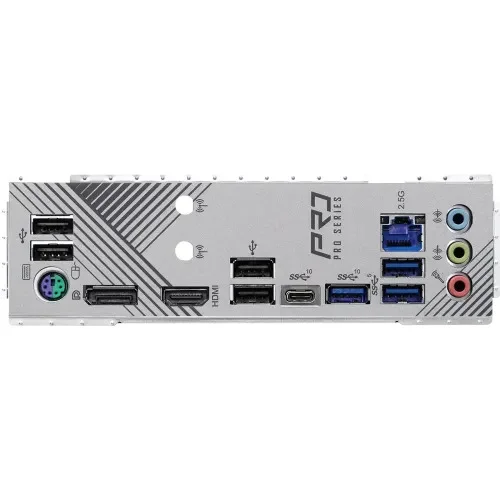

- Graphics Output: 1x HDMI, 1x DisplayPort, eDP
- Features: 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
Quick Compare
| Product Details | ||||
| Product | ASRock Z790 Pro RS ATX Motherboard | Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard | ASRock Z790 Pro RS/D4 13th Gen & 12th Gen ATX Motherboard | GIGABYTE Z790 UD 13th & 12th Gen ATX Motherboard |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | Z790 Pro RS | PRIME B860-PLUS WIFI-CSM | Z790 Pro RS/D4 | Z790 UD |
| Brand | ASROCK | ASUS | ASROCK | GIGABYTE |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | ASRock Z790 Pro RS ATX MotherboardASRock Z790 Pro RS is a high-performance ATX motherboard designed to support Intel's 14th, 13th, and 12th Generation processors. Built on the Intel Z790 chipset, it is ideal for users seeking a balance of cutting-edge technology, robust durability, and advanced connectivity for gaming, productivity, and multimedia applications. Its compatibility with Intel Hybrid Technology, Turbo Boost Max 3.0, Adaptive Boost Technology (ABT), and Thermal Velocity Boost ensures superior CPU performance. The motherboard offers a PCIe 5.0 x16 slot for GPUs, ensuring excellent graphics performance for modern games and intensive applications. Additionally, it includes PCIe 4.0 and PCIe 3.0 slots for expansion cards, supporting AMD CrossFire for multi-GPU setups. With four DDR5 DIMM slots, the ASRock Z790 Pro RS supports up to 128GB of DDR5 memory with speeds of up to 6800+ MHz (overclocked), making it future-proof for high-speed computing tasks. It features four Hyper M.2 sockets supporting PCIe Gen4x4 SSDs and eight SATA3 ports, offering diverse and high-speed storage options. RAID support for both SATA and M.2 devices enhances data redundancy and performance. Connectivity options are top-notch with 2.5G LAN, multiple USB ports (including USB 3.2 Gen2x2 Type-C), HDMI 2.1, and DisplayPort 1.4, supporting resolutions up to 8K for exceptional display quality. The motherboard's 14+1+1 power phase design and 50A Dr.MOS ensure reliable power delivery to the CPU and GPU. The enlarged heatsink armor enhances heat dissipation, contributing to system stability. Smart fan speed control and multiple fan connectors allow users to customize and optimize cooling solutions. The Realtek ALC897 codec delivers immersive 7.1-channel HD audio, further enhanced by Nahimic Audio software. A suite of onboard utilities like ASRock EZ Mode, Post Status Checker, and Polychrome SYNC simplifies system management, troubleshooting, and RGB lighting customization. The durable 2oz Copper PCB and integrated I/O shield ensure reliability and ease of installation. The inclusion of multiple internal I/O ports and headers, including support for Thunderbolt 4 AIC cards, expands the motherboard's functionality. The ASRock Z790 Pro RS is a robust and versatile motherboard catering to gamers, content creators, and enthusiasts. Its rich features, cutting-edge technology, and durable design make it an excellent choice for building a high-performance PC... | Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX MotherboardThe ASUS PRIME B860-PLUS WIFI-CSM is a high-performance ATX motherboard designed to support the latest Intel Core Ultra Series 2 processors with the new LGA 1851 socket. Powered by the Intel B860 chipset, it delivers outstanding speed, stability, and flexibility for both productivity-focused users and enthusiasts building next-gen systems. Engineered for future-ready performance, it supports up to 256GB of DDR5 memory with speeds reaching an incredible 8666+ MT/s (OC), ensuring exceptional multitasking and computing efficiency. Storage expansion is flexible with dual M.2 slots — including one PCIe 5.0 x4 slot for ultra-fast NVMe SSDs — and four SATA 6Gb/s ports. With PCIe 5.0 and PCIe 4.0 slots available, the motherboard provides excellent support for the latest GPUs and add-in cards. For connectivity, the PRIME B860-PLUS WIFI-CSM features integrated Wi-Fi 6E for ultra-fast wireless networking and Bluetooth 5.3 for seamless device pairing. The Realtek 2.5Gb Ethernet with ASUS LANGuard ensures stable, high-speed wired networking. Rear I/O ports include a USB 20Gbps Type-C, multiple USB 10Gbps and 5Gbps Type-A ports, HDMI 2.1, and DisplayPort outputs, offering 4K@60Hz display support. Built with ASUS’s 5X Protection III technology, the board ensures reliability through enhanced power solutions, SafeSlot reinforcement, stainless steel back I/O, and overvoltage protection. DIY-friendly features like Q-LED diagnostics, M.2 heatsinks, pre-mounted I/O shield, and Q-DIMM latches make assembly straightforward. Adding style to substance, it supports Aura Sync RGB lighting with both RGB and addressable Gen 2 headers. Bundled with ASUS Armoury Crate software, Fan Xpert 2+, and UEFI BIOS EZ Mode, the PRIME B860-PLUS WIFI-CSM is a perfect balance of performance, reliability, and customization for users building powerful next-generation PCs... | Specification Basic Information Supported CPU - Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) Chipset Intel Z790 BIOS 128Mb AMI UEFI Legal BIOS with GUI support Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio Expansion Slots PCI CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire Memory Type DDR4 Slots 4 x DDR4 DIMM Slots Supported Memory - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 Maximum Memory 128GB Graphics Graphics - Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz Connector & Ports HDMI 1 x HDMI Port Display Port (s) 1 x DisplayPort 1.4 USB (s) - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) LAN Port (s) - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control Supported Storage CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 8 x SATA3 6.0 Gb/s Connectors RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices Audio HD Audio Jacks: Line in / Front Speaker / Microphone Internal I/O Ports - 1 x eDP Signal Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) TPM (Trusted Platform Module ) 1 x SPI TPM Header Others Special Features Superb Productivity - PCIe Gen5 (Graphics) Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker Bundled Software Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer Warranty Information Manufacturing Warranty 3 years ASRock Z790 Pro RS/D4 13th Gen & 12th Gen ATX Motherboard The ASRock Z790 Pro RS/D4 motherboard supports Intel Core processors from generations 13 and 12, has a 14+1+1 phase power design, and incorporates Dr.MOS for VCore+GT. It has 4 DDR4 DIMMs and can support up to 5333+ MHz (OC). This Motherboard included 1 M.2 Key-E for WiFi, 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, and 3 PCIe 3.0 x1. It has one DisplayPort, one HDMI, and one eDP graphics output option. 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio are features of the ASRock Z790 Pro RS/D4. Additionally, this ASRock motherboard has 8 SATA3 and 4 Hyper M.2 (PCIe Gen4x4). It has one USB 3.2 Gen2x2 Type-C on the front, one USB 3.2 Gen2 Type-C on the back, one USB 3.2 Gen2 Type-A on the back, six USB 3.2 Gen1 (2 Rear, four Front), eight USB 2.0 (4 Rear, four Front), and Realtek 2.5G LAN. The most recent PCI Express 5.0 is set to unleash the full power of future high-end graphic cards with its astonishing bandwidth of 128GBps. The ASRock Z790 Pro RS/D4 13th Gen ATX Motherboard includes Nahimic Audio, which provides you with the most engaging listening experience, bright and rich with details, via USB, Wi-Fi, analog output, or even HDMI. One of the M.2 storage devices that can be supported by the ASRock Z790 Pro RS/D4 motherboard's many M.2 slots is a PCI Express 4.0 M.2 SSD. This 13th Gen ASRock motherboard can do tasks twice as quickly as the previous 3rd generation, providing an incredibly quick data transmission experience. Three years of warranty are offered with the most recent ASRock Z790 Pro RS/D4 Motherboard. .. | Specification Basic Information Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU Chipset Intel Z790 Express Chipset BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor ATX Form Factor; 30.5cm x 24.4cm Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out Expansion Slots PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) Memory Type DDR5 Slots 4 x DIMM sockets Supported Memory 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory 128GB (32 GB single DIMM capacity) Graphics Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Connector & Ports HDMI 1 x HDMI Display Port (s) 1 x DisplayPort USB (s) Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Audio 3 x audio jacks Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) Others Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software Warranty Information Manufacturing Warranty 3 years GIGABYTE Z790 UD 13th & 12th Gen ATX Motherboard The GIGABYTE Z790 UD ATX Motherboard comes with Intel Socket LGA 1700 that supports 13th and 12th Gen Series Processors. It delivers unparalleled performance with twin 16+1+1 Phases Digital VRM Solution. The motherboard comes with 4x SMD DIMMs with XMP 3.0 Memory Module Support. The sockets support up to 128 GB (32 GB single DIMM capacity) of system memory. The motherboard is equipped with 3x PCIe 4.0 x4 M.2 Connectors. It supports new PCIe 5.0 SSD with up to type 25110 M.2 slot designed to provide high power M.2 PCIe 5.0 SSD solutions. It has PCIe 5.0 x16 Slot with Quick Release & Screwless Design. The GIGABYTE Z790 UD is equipped with a 2.5GbE LAN that provides up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience. The advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process. The GIGABYTE Z790 UD ATX Motherboard comes with 3 years of warranty. .. |
