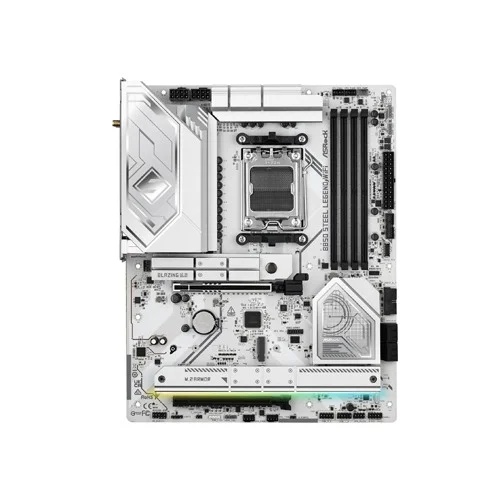

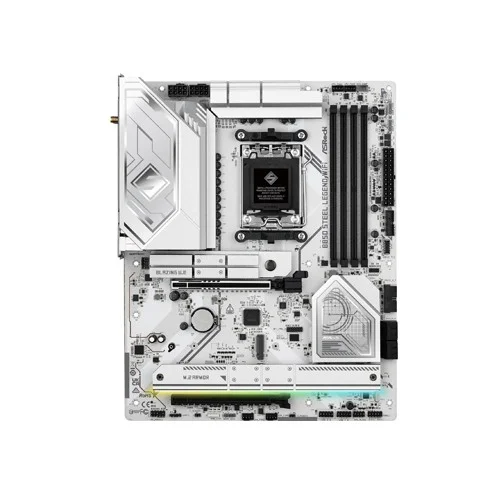

ASRock B850 STEEL LEGEND WIFI AM5 AMD ATX Motherboard
- Stock: In Stock
- Model: B850 STEEL LEGEND WIFI
- Product id: 27852
- CPU Socket Type: AM5
- Chipset: AMD B850
- Form Factor: ATX
- Bluetooth: Bluetooth 5.4
| Basic Information | |
| Supported CPU | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B850 |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| CPU Socket | AM5 |
| Form Factor | ATX |
| Expansion Slots | |
| PCI | PCI Express 5.0 x16: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. * If M2_4 is occupied, PCIE2 will be disabled. * Supports NVMe SSD as boot disks - 15µ Gold Contact in VGA PCIe Slot (PCIE1) PCI Express 4.0 x16: 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode |
| M.2 Socket | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* * Supports NVMe SSD as boot disks * M2_1 is the first priority for M.2 installation. * M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. * M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors. * If M2_4 is occupied, PCIE2 will be disabled. |
| Memory | |
| Supported Memory | 256GB |
| Connector & Ports | |
| LAN Port (s) | Dragon RTL8125BG |
| Physical Specification | |
| Dimension | 12.0" x 9.6" |
ASRock B850 STEEL LEGEND WIFI AM5 AMD ATX Motherboard
The ASRock B850 STEEL LEGEND WIFI AM5 AMD ATX Motherboard is a powerhouse designed for gamers, creators, and professionals who demand high performance and efficiency. Built on the AMD B850 chipset, this motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors, making it an ideal choice for the latest computing needs.
Exceptional Expansion & Connectivity
This motherboard features PCI Express 5.0 x16 and PCI Express 4.0 x16 slots, ensuring faster data transfer rates for high-end graphics cards and storage solutions. With multiple M.2 sockets, including Blazing M.2 and Hyper M.2, users can take advantage of lightning-fast PCIe Gen5x4 and Gen4x4 SSDs. Whether you're gaming, streaming, or editing, the high-speed NVMe SSD support ensures reduced load times and seamless performance.
Powerful Memory & Networking
The ASRock B850 STEEL LEGEND supports up to 256GB of DDR5 memory, allowing users to run intensive applications and multitask without slowdowns. The Dragon RTL8125BG LAN provides stable and high-speed network connectivity, while built-in WiFi ensures a hassle-free wireless experience.
Superior Build Quality & Durability
Designed with 15µ Gold Contact in VGA PCIe Slot, this motherboard ensures reliable signal transmission and durability. The ATX form factor offers excellent airflow and compatibility with various PC cases.
