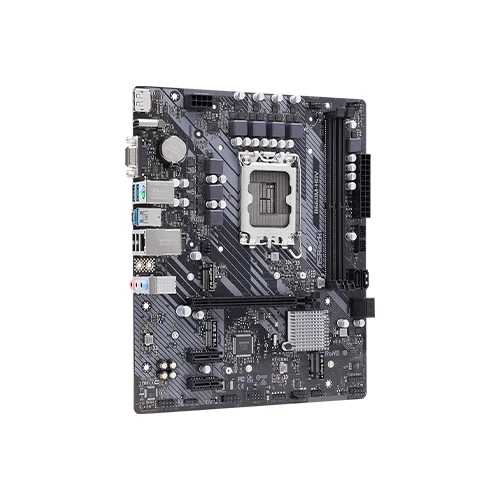

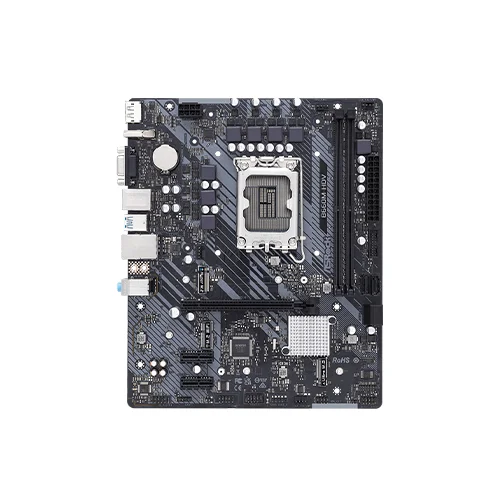

ASRock B660M-HDV 13th Gen & 12th Gen Micro ATX Motherboard
-5 %
ASRock B660M-HDV 13th Gen & 12th Gen Micro ATX Motherboard
- Stock: In Stock
- Model: B660M-HDV
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Supports 12th Gen Intel Core Processors (LGA1700)
- 6 Phase Power Design
- Supports DDR4 5066MHz (OC)
- Graphics Output: HDMI, DisplayPort, D-Sub
Quick Compare
| Product Details | ||||
| Product | ASRock B660M-HDV 13th Gen & 12th Gen Micro ATX Motherboard | GIGABYTE A620M S2H DDR5 AMD AM5 Micro-ATX Motherboard | MSI PRO B760M-E DDR5 m-ATX Motherboard | Asus TUF B450-PLUS GAMING AMD ATX Motherboard |
| Image |  |  |  |  |
| Price | | | | |
| Model | B660M-HDV | A620M S2H | B760M-E | Model-6381 |
| Brand | ASROCK | GIGABYTE | MSI | ASUS |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. | Based on 0 reviews. | Based on 0 reviews. | Based on 0 reviews. |
| Summary | SpecificationSupported CPU - Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 6 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 TechnologyChipset Intel B660BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustmentForm Factor - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm - Solid Capacitor designAudio - 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) - Supports Surge ProtectionPCI CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi moduleType Dual Channel DDR4 Memory TechnologySlots 2 x DDR4 DIMM SlotsSupported Memory - Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0Maximum Memory 64GBGraphics - Intel Xe Graphics Architecture (Gen 12) - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 PortsHDMI 1 x HDMI PortDisplay Port (s) 1 x DisplayPort 1.4D-Sub (s) 1 x D-Sub PortUSB (s) - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection)LAN Port (s) - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXESupported Storage CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes - 4 x SATA3 6.0 Gb/s Connectors- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesAudio HD Audio Jacks: Line in / Front Speaker / MicrophoneInternal I/O Ports - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)TPM (Trusted Platform Module ) 1 x SPI TPM HeaderSpecial Features ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP ShopManufacturing Warranty 3 yearsASRock B660M-HDV 13th Gen & 12th Gen Micro ATX MotherboardThe ASRock B660M-HDV Motherboard Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700). It features 9 Phase Dr.MOS Power Design and it supports DDR4 5000MHz (OC). It supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards. It features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strips, CPU fans, coolers, chassis, and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Nahimic Audio ASRock B660M-HDV comes with Realtek ALC897 7.1 CH HD Audio Codec, and Nahimic Audio. Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. High-Speed M.2 Solution and PCIe 4.0 This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. It has 4 SATA3, and 2 Hyper M.2 (PCIe Gen4 x4). Dual Graphics Outputs The ASRock B660M-HDV comes with an HDMI + DisplayPort combo. It supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz and DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz.The ASRock B660M-HDV Motherboard has 03 years warranty... | GIGABYTE A620M S2H DDR5 AMD AM5 Micro-ATX MotherboardThe GIGABYTE A620M S2H is a DDR5 AMD AM5 Micro-ATX Motherboard designed to provide a solid foundation for your AMD Ryzen 7000 Series processor-based system. While it offers a more budget-friendly alternative to high-end motherboards, it doesn't compromise on essential features and performance, making it an excellent choice for budget-conscious users. This motherboard supports DDR5 memory, offering enhanced data transfer speeds for improved multitasking and overall system performance. It features two DIMM slots and supports a range of memory speeds, including overclocked options up to 6400 MT/s. With dual-channel memory architecture, you can expect smooth and responsive performance for a variety of computing tasks. It also supports AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules, allowing enthusiasts to fine-tune their system's memory performance. The maximum memory capacity is 96GB, ensuring ample memory for most applications. The A620M S2H comes equipped with integrated graphics, featuring a D-Sub port, a DisplayPort, and an HDMI port. This allows for flexible connectivity to a wide range of display devices, with support for resolutions up to 4096x2160@60 Hz, ensuring that your visual content looks great. The motherboard supports AMD Socket AM5, providing compatibility with AMD Ryzen 7000 Series Processors, which deliver impressive CPU performance. It is powered by the AMD A620 chipset, offering a reliable and stable foundation for your system. The Micro ATX Form Factor of the motherboard is ideal for compact PC builds. It measures 23.0cm x 22.5cm, allowing you to create a smaller system without sacrificing key features. Connectivity options include USB 3.2 Gen 1 and USB 2.0/1.1 ports for various peripherals. It features Realtek GbE LAN for reliable network connections, and the M.2 connector and SATA ports allow for storage expansion. RAID support for both NVMe SSD and SATA storage devices is available, ensuring data redundancy and improved performance.GIGABYTE A620M S2H DDR5 Motherboard FeaturesDDR5 Memory Support: The motherboard supports DDR5 memory with speeds of up to 6400 MT/s when overclocked. It features two DIMM slots, enabling a maximum memory capacity of 96GB. Dual-channel memory architecture ensures efficient data transfer and system responsiveness.Integrated Graphics: The motherboard features an Integrated Graphics Processor with multiple display options, including a D-Sub port (max resolution 1920x1200@60 Hz), a DisplayPort (max resolution 3840x2160@144 Hz), and an HDMI port (max resolution 4096x2160@60 Hz). This provides flexibility for connecting various display devices.CPU Support and Chipset: It supports AMD Socket AM5 and is compatible with AMD Ryzen 7000 Series Processors. The motherboard is powered by the AMD A620 chipset, providing a stable platform for your system.BIOS and Audio: The motherboard features a 256 Mbit flash with a licensed AMI UEFI BIOS, complying with various industry standards. The Realtek Audio CODEC provides high-definition audio with support for 2/4/5.1/7.1-channel audio setups.Compact Form Factor: With a Micro ATX Form Factor measuring 23.0cm x 22.5cm, it's ideal for smaller PC builds where space is a consideration.Expansion Slots: It includes a PCIe 4.0 x16 slot on the CPU side and a PCIe 3.0 x1 slot on the chipset side, accommodating graphics cards and other expansion cards.Connectivity and Ports: The motherboard offers a range of USB ports, including two USB 3.2 Gen 1 ports and one USB 2.0/1.1 port on the back panel. Additionally, the chipset provides two internal USB 3.2 Gen 1 ports and seven internal USB 2.0/1.1 ports, ensuring ample connectivity for peripherals. It also features a Realtek GbE LAN chip for reliable network connections.Storage Solutions: It includes an M.2 connector for PCIe 4.0 x4/x2 SSD support on the CPU side and four SATA 6Gb/s connectors on the chipset side. RAID support is available for both NVMe SSD and SATA storage devices, allowing for data redundancy and improved storage performance.Internal I/O Ports: The motherboard provides various internal connectors, including fan headers, LED strip headers, and USB headers for customization and expandability.TPM Header: It features a Trusted Platform Module header for enhanced system security.Special Features: The motherboard supports GIGABYTE Control Center (GCC) for advanced system management and Q-Flash for easy BIOS updates. Additionally, it offers Q-Flash Plus for hassle-free BIOS updating without the need for a CPU or memory.Bundled Software: Included in the package is Norton Internet Security (OEM version) and LAN bandwidth management software to enhance system security and network performance.Warranty: Backed by a 3-year warranty, this motherboard offers reliability and assurance... | MSI PRO B760M-E DDR5 m-ATX MotherboardMSI PRO B760M-E DDR5 m-ATX Motherboard is a powerful and versatile solution designed for those seeking robust performance and cutting-edge features in a compact form factor. Compatible with the latest Intel processors, this motherboard supports Intel Core 14th, 13th, and 12th Gen CPUs, as well as Intel Pentium Gold and Celeron processors, thanks to its LGA 1700 socket and Intel B760 chipset. This ensures seamless performance for a wide range of applications, from gaming to professional workloads. The board features dual DDR5 DIMM slots, allowing you to take advantage of the latest memory technology with support for overclocked speeds of up to 6400+ MHz. With a maximum memory capacity of 96GB, it offers ample headroom for multitasking and memory-intensive applications. For graphics, the MSI PRO B760M-E comes equipped with both HDMI 1.4 and VGA ports, supporting up to 4K resolution at 30Hz through HDMI. This provides flexibility for connecting modern monitors and displays. Expansion is made easy with one PCI-E x16 slot and one PCI-E x1 slot, supporting PCIe 4.0 and 3.0 respectively, ensuring compatibility with a wide range of expansion cards. Storage options are well-covered, with one M.2 slot supporting PCIe 4.0 x4 and SATA mode, along with four SATA 6G ports. This allows for various storage configurations, including RAID 0, RAID 1, RAID 5, and RAID 10 for enhanced data protection and performance. The motherboard also includes a Realtek ALC897 Codec for 7.1-channel high-definition audio, providing an immersive audio experience. Additionally, it features multiple internal I/O ports, including headers for USB 2.0, USB 3.2 Gen1, and RGB LED connectors, offering extensive customization options... | Asus TUF B450-PLUS GAMING AMD ATX Motherboard Asus TUF B450-PLUS GAMING ATX AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory AMD motherboard has the Ultra-Fast 32Gbps M.2, HDMI 2.0b, Type C and native USB 3.1 Gen 2 Interface. Considering the graphics, it will support maximum resolution of 4096 x 2160 @ 60 Hz for HDMI and 1920 x 1200 @ 60 Hz for DVI-D ports for Multiple Display. This Aura Sync RGB motherboard has the facility of SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliable TUF Protection. This AMD CrossFireX™ Technology supported board has GPU Temperature Sensing & Fan Xpert 4 Core and Military-grade TUF Components such as TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability.Purchase TUF B450-PLUS GAMING board with 3 years of warranty facility at best price from Star Tech. Order latest AMD board from Star Tech’s online store and have the delivery at any location in Bangladesh. Specification:Basic InformationSupported CPU AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors Supports CPU up to 8 coresChipset AMD B450BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory informationForm Factor ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )Expansion SlotsPCI AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1M.2 Socket 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)MemoryType Dual Channel DDR4 Memory TechnologySlots 4 x DIMMSupported Memory DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered MemoryMaximum Mamory 64 GBGraphicsGraphics Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 HzConnector & PortsHDMI 1 x HDMI portUSB (s) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)LAN Port (s) Realtek® RTL8111H TUF LANGuardSupported Storage AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 2 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 AMD B450 chipset : 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10Audio Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2 Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.Internal I/O Ports 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port headerDVI-D (s) 1 xDVI-DWarranty InformationManufacturing Warranty 03 years .. |
