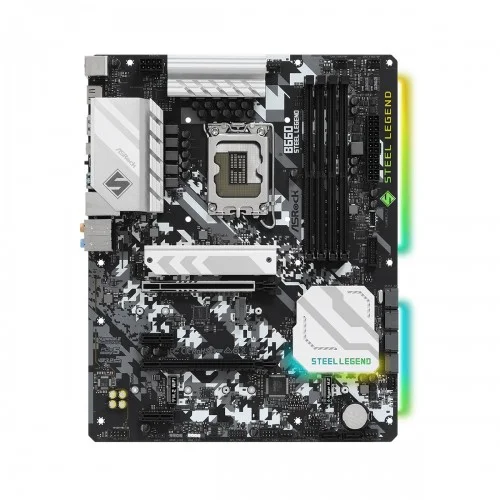

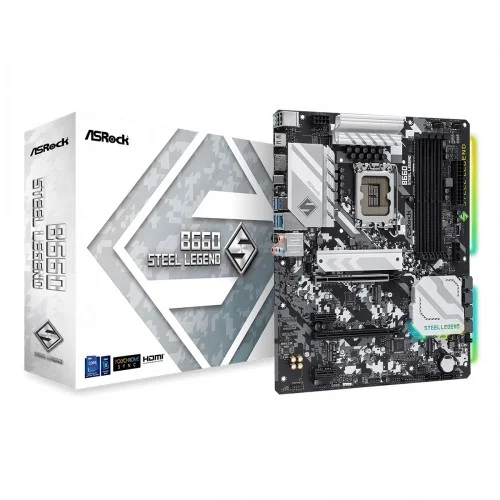

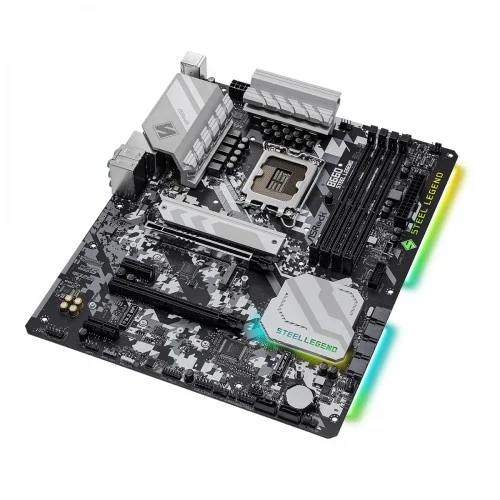

ASRock B660 Steel Legend ATX Motherboard




-20 %
Out Of Stock




ASRock B660 Steel Legend ATX Motherboard
- Stock: Out Of Stock
- Model: B660 Steel Legend
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Supports 12th Gen Intel Core Processors (LGA1700)
- 9 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- Graphics Output Options: HDMI, DisplayPort
Specification
Basic Information | ||
Supported CPU | - Supports 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 8 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology | |
Chipset | Intel B660 | |
BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment | |
Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design | |
Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio | |
Expansion Slots | ||
PCI | - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3)) - 2 x PCIe Gen3x1 Slots - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) | |
Memory | ||
Type | Dual Channel DDR4 Memory Technology | |
Slots | 4 x DDR4 DIMM Slots | |
Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 | |
Maximum Memory | 128GB | |
Graphics | ||
Graphics | - Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports | |
Connector & Ports | ||
HDMI | 1 x HDMI Port | |
Display Port (s) | 1 x DisplayPort 1.4 | |
USB (s) | - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) | |
LAN Port (s) | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE | |
Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
Audio | - HD Audio Jacks: Line in / Front Speaker / Microphone | |
Internal I/O Ports | - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) | |
TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
Warranty Information | ||
Manufacturing Warranty | 3 years | |
Others | ||
Special Features | ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
ASRock B660 Steel Legend 12th Gen ATX Motherboard
The ASRock B660 Steel Legend Motherboard supports 12th Gen Intel Core Processors (LGA1700). It features a 9 Phase Power Design and it supports DDR4 4800MHz (OC). ASRock B660 Steel Legend comes with Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio. Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Optimized VRM Design with PCIe 5.0 & High-Speed M.2
ASRock B660 Steel Legend supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards. It is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. It has 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x4 & SATA3).Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet.Polychrome RGB
It features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis, and so on.The ASRock B660 Steel Legend Motherboard has 03 years warranty.Quick Compare
Product Details | ||||
Product | ASRock B660 Steel Legend ATX Motherboard | MSI B760M GAMING PLUS WIFI DDR5 Intel ATX Motherboard | MSI B760M BOMBER WIFI DDR5 mATX Motherboard | MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard |
Image | ![]() | ![]() | ![]() | ![]() |
Price | | | | |
Model | B660 Steel Legend | B760M GAMING PLUS WIFI | B760M BOMBER WIFI | PRO B650M-A WIFI |
Brand | ASROCK | MSI | MSI | MSI |
Availability | Out Of Stock | In Stock | In Stock | In Stock |
Rating | Based on 0 reviews. | Based on 0 reviews. | Based on 1 reviews. | Based on 0 reviews. |
Summary | SpecificationBasic InformationSupported CPU - Supports 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 8 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 TechnologyChipset Intel B660BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustmentForm Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor designAudio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic AudioExpansion SlotsPCI - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3)) - 2 x PCIe Gen3x1 Slots - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)MemoryType Dual Channel DDR4 Memory TechnologySlots 4 x DDR4 DIMM SlotsSupported Memory - Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0Maximum Memory 128GBGraphicsGraphics - Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 PortsConnector & PortsHDMI 1 x HDMI PortDisplay Port (s) 1 x DisplayPort 1.4USB (s) - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection)LAN Port (s) - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXESupported Storage - 4 x SATA3 6.0 Gb/s Connectors If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesAudio - HD Audio Jacks: Line in / Front Speaker / MicrophoneInternal I/O Ports - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)TPM (Trusted Platform Module ) 1 x SPI TPM HeaderWarranty InformationManufacturing Warranty 3 yearsOthersSpecial Features ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP ShopASRock B660 Steel Legend 12th Gen ATX MotherboardThe ASRock B660 Steel Legend Motherboard supports 12th Gen Intel Core Processors (LGA1700). It features a 9 Phase Power Design and it supports DDR4 4800MHz (OC). ASRock B660 Steel Legend comes with Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio. Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Optimized VRM Design with PCIe 5.0 & High-Speed M.2 ASRock B660 Steel Legend supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards. It is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. It has 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x4 & SATA3). Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet. Polychrome RGB It features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis, and so on.The ASRock B660 Steel Legend Motherboard has 03 years warranty... | MSI B760M GAMING PLUS WIFI DDR5 Intel ATX MotherboardThe MSI B760M GAMING PLUS WIFI DDR5 Intel ATX Motherboard is a high-performance motherboard designed for gamers and professionals seeking speed, stability, and future-proof features. Built with the Intel B760 chipset, it supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors, ensuring robust processing power for demanding applications. Equipped with DDR5 memory support, this motherboard offers an overclocking frequency of up to 7000+ MHz, enabling lightning-fast performance and seamless multitasking. The dual-channel memory architecture and Intel® Extreme Memory Profile (XMP) support further enhance system responsiveness, making it ideal for high-end gaming and productivity tasks. For graphics and expansion, the MSI B760M GAMING PLUS WIFI features two PCI-E x16 slots and one PCI-E x1 slot, supporting PCIe 5.0, 4.0, and 3.0 for ultimate bandwidth and speed. Whether for gaming GPUs or high-speed SSDs, this motherboard ensures top-tier performance. Connectivity is a strong suit, with Realtek 2.5Gbps LAN and Intel Wi-Fi 6E, delivering ultra-fast networking with minimal latency. The pre-installed wireless module supports MU-MIMO and a wide frequency range, ensuring a smooth online experience. The motherboard's I/O panel includes multiple USB ports, including USB 3.2 Gen2 Type-C, HDMI 2.1, and DisplayPort 1.4, supporting resolutions up to 8K 60Hz for immersive visuals. Additionally, Realtek ALC897 7.1-channel high-performance audio ensures crisp and clear sound for an enhanced gaming and multimedia experience. Designed with durability in mind, the MSI B760M GAMING PLUS WIFI DDR5 motherboard comes with a 3-year warranty, ensuring long-term reliability. Its extensive cooling options, high-speed connectivity, and cutting-edge features make it a great choice for gamers and PC enthusiasts.MSI b760m gaming plus wifi ddr5The MSI B760M GAMING PLUS WIFI DDR5 is a high-performance mATX motherboard designed for Intel 12th and 13th Gen processors. It supports DDR5 memory, ensuring faster speeds and improved efficiency. Equipped with PCIe 4.0, M.2 slots, and Wi-Fi 6E, it offers seamless connectivity and high-speed data transfer. The motherboard features Core Boost technology, Extended Heatsinks, and M.2 Shield Frozr for enhanced cooling and stability. With USB 3.2 Gen 2 and 2.5G LAN, it ensures smooth gaming and multitasking. Ideal for gamers and content creators, the MSI B760M GAMING PLUS WIFI DDR5 delivers powerful performance and future-proof technology.MSI b760m gaming plus wifi ddr5 priceThe MSI B760M GAMING PLUS WIFI DDR5 motherboard is available in Bangladesh at prices ranging from 18,800৳ to 19,000৳, depending on the retailer. This Micro-ATX motherboard supports 14th, 13th, and 12th Gen Intel Core processors with an LGA 1700 socket. It features four DDR5 RAM slots, accommodating up to 192GB with speeds up to 6800+ MHz (OC). For graphics, it offers two HDMI 2.1 ports and two DisplayPort 1.4 outputs.Connectivity and ExpansionConnectivity is a crucial factor for any gaming setup, and the MSI B760M does not disappoint. It comes with Wi-Fi 6E for ultra-fast wireless connections and multiple USB ports for all your peripherals. The motherboard also features PCIe 4.0 slots for high-speed expansion options, allowing gamers to install the latest graphics cards and storage devices without bottlenecks.CompatibilityThis motherboard is designed to work seamlessly with Intel's 12th and 13th Gen processors, providing top-notch performance for gaming and multitasking. The support for DDR5 RAM ensures faster data transfer rates, reducing latency and improving system responsiveness. Whether you are gaming, streaming, or working on intensive applications, the MSI B760M ensures a smooth experience.Features of MSI B760M GAMING PLUS WIFI DDR5 Intel ATX MotherboardThe MSI B760M GAMING PLUS WIFI DDR5 Intel ATX Motherboard is packed with features that make it stand out from the competition. Some of the most notable features include:Support for DDR5 memory for lightning-fast speedsIntel 12th and 13th Gen processor compatibilityEnhanced power design for stability and efficiencyHigh-speed Wi-Fi 6E for seamless connectivityMultiple PCIe slots for expandabilityAdvanced thermal solution for effective cooling.. | MSI B760M BOMBER WIFI DDR5 mATX MotherboardThe MSI B760M BOMBER WIFI DDR5 mATX Motherboard is a feature-packed and high-performance motherboard designed to support a wide range of Intel processors, making it an excellent choice for gamers, content creators, and PC enthusiasts. With its LGA1700 socket and compatibility with 14th, 13th, and 12th Gen Intel Core processors, as well as Pentium Gold and Celeron processors, it offers exceptional versatility for various computing needs. This motherboard is based on the MSI INTEL B760 chipset, ensuring reliable and efficient performance. The audio is powered by the Realtek ALC897 Codec, delivering crisp and immersive 7.1-channel high-definition audio, and it also supports S/PDIF output for enhanced audio connectivity. In terms of form factor, it's a compact mATX motherboard measuring 220mmx243.84mm, making it suitable for smaller PC cases while maintaining ample expandability. One of its standout features is the expansion slots. The motherboard offers five PCIe slots, with support for PCIe 4.0 for high-speed data transfer. These slots can accommodate various add-in cards, providing ample room for customization and upgrades. The DDR5 memory support ensures you can harness the latest in RAM technology with overclocking capabilities, allowing for memory speeds up to 6400+ MHz. With two memory slots, you can install up to 96GB of DDR5 RAM, making it suitable for memory-intensive applications and gaming. For graphics, the motherboard provides HDMI 2.1 and DisplayPort 1.4 connectors, both capable of delivering high-resolution content. Additionally, it features a D-Sub connector, offering flexibility in display options. Connectivity options are plentiful, with numerous USB ports, including USB 2.0 and USB 3.2 Gen1, ensuring quick data transfer and peripheral connectivity. It also comes with a Realtek RTL8125B 2.5Gbps LAN port for high-speed wired networking. Storage options include two M.2 slots, SATA ports, and support for RAID configurations, allowing you to set up a high-performance storage solution. The motherboard even comes with Intel Wi-Fi 6E pre-installed in the M.2 (Key-E) slot, offering ultra-fast wireless connectivity with support for MU-MIMO, Bluetooth 5.3, and various Wi-Fi standards. Internal I/O ports are extensive, providing a wide range of connections for power, cooling, and expansion, along with support for RGB lighting and TPM 2.0 for enhanced security.MSI B760M BOMBER WIFI Motherboard FeaturesCPU Compatibility: This motherboard supports a wide range of Intel processors, including 14th, 13th, and 12th Gen Intel Core processors, Pentium Gold, and Celeron processors. It features the LGA1700 socket for optimal CPU compatibility.Chipset: The motherboard is based on the INTEL B760 chipset, providing a reliable and efficient foundation for your PC build.High-Quality Audio: It features the Realtek ALC897 Codec, delivering 7.1-channel high-definition audio for an immersive audio experience. It also supports S/PDIF output for enhanced audio connectivity.Compact Form Factor: With a micro-ATX (mATX) form factor measuring 220mmx243.84mm, this motherboard is suitable for smaller PC cases while still offering a robust feature set.Expansion Slots: The motherboard provides five PCIe expansion slots, including PCIe 4.0 support for high-speed data transfer. This allows for flexible customization and the addition of various expansion cards.DDR5 Memory Support: It supports DDR5 memory with overclocking capabilities, allowing for memory speeds of up to 6400+ MHz. With two memory slots, you can install up to 96GB of DDR5 RAM, making it ideal for memory-intensive tasks.Graphics Support: The motherboard comes equipped with graphics options, including HDMI 2.1 with HDR support, DisplayPort 1.4, and a D-Sub connector for diverse display choices.Ample Connectivity: The motherboard features a variety of USB ports, including USB 2.0 and USB 3.2 Gen1, for fast data transfer and peripheral connectivity. It also includes a Realtek RTL8125B 2.5Gbps LAN port for high-speed wired networking.Storage Options: With two M.2 slots, SATA ports, and support for RAID configurations (RAID 0, RAID 1, RAID 5, and RAID 10) for SATA storage devices, you can set up a high-performance storage solution.Wireless Communication: The motherboard comes with an Intel Wi-Fi 6E module pre-installed in the M.2 (Key-E) slot, offering fast wireless connectivity with support for MU-MIMO, Bluetooth 5.3, and various Wi-Fi standards.Internal I/O Ports: The motherboard includes a comprehensive array of internal connectors for power, cooling, expansion, and RGB lighting. It also features a TPM 2.0 pin header for enhanced security.Special Features: Notably, it includes 4x EZ Debug LED indicators to simplify troubleshooting and comes with a generous 3-year warranty, ensuring peace of mind for your investment... | SpecificationBasic InformationSupported CPU Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5Chipset AMD B650Form Factor mATX 243.84mmx243.84mmAudio Realtek ALC897 Codec 7.1-Channel High Definition AudioExpansion SlotsPCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)MemoryType DDR5Slots 4 DIMMsSupported Memory Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5800+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPOMaximum Memory 128GBGraphicsGraphics 1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Supports DP1.4, maximum resolution of 4K 60HzConnector & PortsHDMI 1x HDMIDisplay Port (s) 1x DisplayPortUSB (s) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front)LAN Port (s) Realtek 8125BG 2.5G LANWireless Communication module AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2Supported Storage 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G portRAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devicesAudio Audio ConnectorsInternal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type CTPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)OthersSpecial Features 4x EZ Debug LEDWarranty InformationManufacturing Warranty 3 YearsMSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard The AMD Ryzen 7000-series CPUs with up to 16 Zen 4 cores and dual-channel DDR5 memory with a maximum memory capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz are supported by the MSI PRO B650M-A WIFI Motherboard. It has Core Boost technology, which combines MSI's premium layout with an improved power architecture to provide current to the CPU more quickly and accurately. not only supports multi-core CPUs, but also makes your CPU overclocking possible. It is designed for a high-performance system and a nonstop gaming experience and includes an expanded heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and a Double-sided M.2 Shield Frozr. The motherboard is constructed from a 6-layer PCB comprised of server-grade materials and copper that is 2 oz thicker. Lightning Gen 4 x4 M.2 with M.2 Shield Frozr design keeps M.2 SSDs safe while reducing throttling, making them run quicker. It can provide a lightning-fast gaming experience with PCIe 4.0 slots. The rear I/O panel now provides quick access to Turbo mode, a one-click toggle for all RGB lights, and direct safe boot entry. MSI PRO B650M-A WIFI provides Four times faster than USB 3.2 Gen 1 at 20 Gbps, the built-in USB 3.2 Gen 2x2 port delivers rapid transfer. When using the Rear USB Type-C, the MAG B650 series motherboards provide never-before-seen USB speeds of up to 20Gb/s, giving you a wide range of options for connecting and enhancing your USB devices. A three-year guarantee is included with the MSI PRO B650M-A WiFi. .. |
