ASRock A620M-HDV/M.2 AMD Motherboard

Name: ASRock A620M-HDV/M.2 AMD Motherboard
Brand: ASROCK
Availability: OutOfStock

Up Coming

ASRock A620M-HDV/M.2 AMD Motherboard

Stock: Up Coming
Model: A620M
Product id: 27233

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Graphics Output Options: D-Sub, HDMI
6 Phase Power Design
2 x DDR5 DIMM Slots

Basic Information
Supported CPU	- Supports AMD AM5 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors* - 6 Power Phase design
Chipset	- AMD A620
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Form Factor	- Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design
Audio	- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) - Supports Surge Protection
Storage	CPU: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* Chipset: - 4 x SATA3 6.0 Gb/s Connectors
Special Feature	ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Memory
Slots	- 2 x DDR5 DIMM Slots - 15μ Gold Contact in DIMM Slots
Supported Memory	- AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots
Connector & Ports
RAID	- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Network & Connectivity
Lan	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
General information
Graphics	- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 Port - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft® PlayReady
Memory Type	- Dual Channel DDR5 Memory Technology
External Features
Expansion Slots	- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* - 1 x PCI Express 3.0 x1 Slot

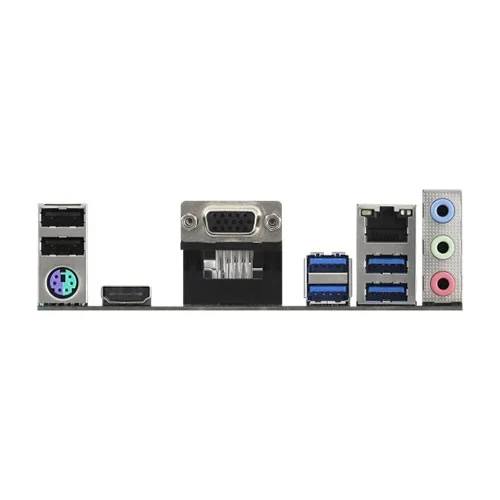

I/O Port	- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Warranty Information
Warranty	3 years

ASRock A620M-HDV/M.2 AMD Motherboard

ASRock A620M-HDV/M.2 AMD Motherboard is a compact and versatile motherboard designed for users looking to build a system with excellent performance and compatibility. Featuring the AMD A620 chipset, it supports a wide range of AMD Ryzen processors, including the Ryzen™ 3000, 4000 G-Series, and 5000 and 5000 G-Series Desktop Processors, ensuring robust processing power and flexibility for various computing needs. The motherboard supports dual-channel DDR5 memory technology, with two DDR5 DIMM slots that can accommodate up to 64GB of RAM. With AMD Ryzen series CPUs, it provides an impressive range of overclocking capabilities for enthusiasts. Additionally, it includes support for Extreme Memory Profile (XMP) modules, making it easier to achieve higher memory speeds. On the graphics front, the A620M-HDV/M.2 integrates AMD Radeon Vega Series Graphics, delivering decent graphical performance for systems that use AMD Ryzen APUs. The motherboard supports dual graphics outputs via HDMI 2.1 and D-Sub ports. It can handle 4K resolution at 60Hz through HDMI and offers support for HDR, HDCP 2.3, and 4K Ultra HD playback, ensuring a smooth multimedia experience. For storage, the motherboard provides one Ultra M.2 slot supporting PCIe Gen3x4 (32Gbps) and SATA3 drives, along with four SATA3 connectors. This ensures ample storage options for high-speed SSDs and traditional HDDs. Expansion capabilities include a PCIe 3.0 x16 slot for a dedicated GPU and a PCIe 3.0 x1 slot for additional components like sound or network cards. The onboard Realtek RTL8111H Gigabit LAN supports lightning and ESD protection, energy-efficient Ethernet, and Wake-On-LAN, ensuring reliable and fast networking. The audio system is powered by the Realtek ALC887/897 codec, delivering 7.1-channel HD audio, with added surge protection for durability. The Micro-ATX form factor of the motherboard makes it suitable for compact builds. It includes ASRock’s signature features like Premium 50A Power Chokes, Sapphire Black PCB, and Full Spike Protection to ensure durability and stability. The ASRock Live Update & APP Shop provides an easy way to update BIOS and manage applications. In summary, the ASRock A620M-HDV/M.2 is a reliable and feature-rich motherboard, offering a balance of performance, expandability, and affordability. Its compatibility with AMD Ryzen processors and robust features make it an excellent choice for budget-friendly builds and everyday computing tasks.

ASRock A620M-HDV/M.2 AMD Motherboard Features

Processor Compatibility: Supports AMD AM5 Socket Ryzen™ 3000, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors, making it suitable for various AMD-based builds.

Efficient Power Design: Built with a 6 Power Phase design, ensuring stable power delivery for improved CPU performance and durability.

Enhanced Storage Options: Equipped with one Ultra M.2 socket supporting PCIe Gen3x4 (32 Gb/s) and four SATA3 connectors, offering high-speed storage for faster boot times and efficient data transfer.

DDR5 Dual Channel Memory: Features dual DDR5 DIMM slots with a maximum capacity of 64GB, supporting high memory speeds and XMP memory modules for better multitasking and gaming performance.

Integrated Graphics Support: Includes AMD Radeon Vega graphics support for Ryzen APUs, with dual display output (D-Sub and HDMI) and HDMI 2.1, providing up to 4K resolution at 60Hz.

Comprehensive Connectivity: Offers multiple USB ports, including two USB 2.0 and four USB 3.2 Gen1 ports, supporting ESD protection. Also includes HDMI, D-Sub, PS/2, and HD audio jacks for versatile connectivity.

Robust Network Support: Equipped with Realtek Gigabit LAN (10/100/1000 Mb/s) with Wake-On-LAN and Energy Efficient Ethernet support, ensuring fast and reliable network performance.

ASRock Super Alloy Design: Built with Premium 50A Power Choke, High-Density Glass Fabric PCB, and a durable Sapphire Black PCB for enhanced durability and stability.

Full Spike Protection: Protects USB, audio, and LAN ports from potential power surges, offering greater reliability for connected devices.

3-Year Warranty: Backed by a 3-year warranty, providing peace of mind and support for extended use.
