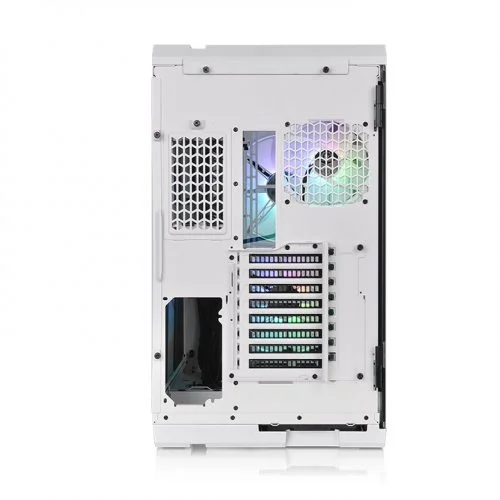

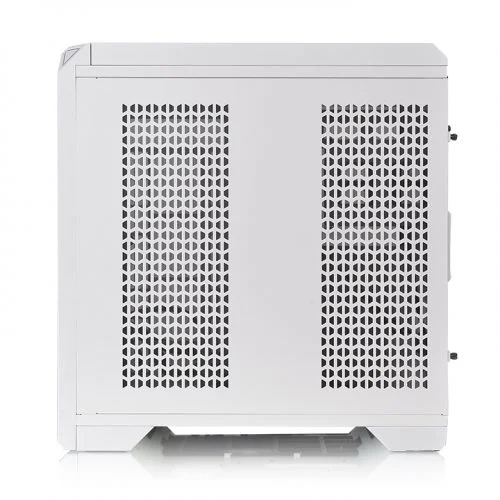

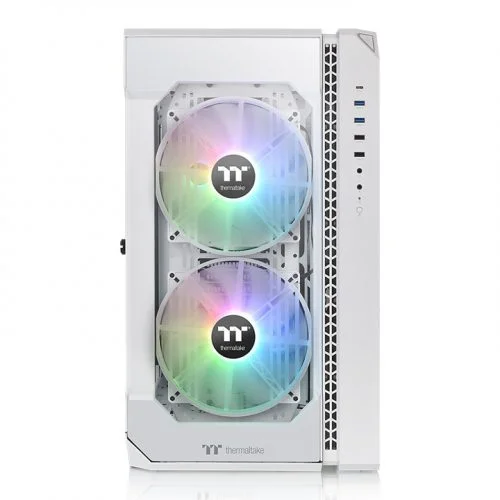

Thermaltake View 51 TG Snow ARGB Edition Full Tower White (Tempered Glass) ATX Desktop Casing

Thermaltake View 51 TG Snow ARGB Edition Full Tower White (Tempered Glass) ATX Desktop Casing

Thermaltake View 51 TG Snow ARGB Edition Full Tower White (Tempered Glass) ATX Desktop Casing is designed to expand the legacy of the View Series lineup, the View 51 Tempered Glass Snow ARGB Edition full-tower chassis features two 200mm 5V ARGB fans at the front and one 120mm 5V ARGB fan at the rear providing outstanding ventilation. This elegant chassis utilizes swing-out side panels, and is enclosed with 4mm tempered glass panels on three sides for users to demonstrate their DIY handwork and showcase their internal components. The I/O ports are positioned vertically on the right side of the front panel with tempered glass windows on its left. Different from other View Series chassis’, the View 51 TG Snow ARGB can hold up to two 200mm fans at the front and on the top.

Tempered Glass Window

The chassis comes with three 4mm tempered glass panels, thicker and more scratch resistant when compared to standard acrylic. A swing door on the left side allows users to easily access the internal components as well as the ability to remove the doors entirely for complete access to the internals. On top of this, the enlarged window design enables you to display and admire all your components in their full RGB glory.

Smart Space Design

Sophisticated space design located on the right side of the case provides a neat area for PSU placement and cable management.

Vertical GPU Mount and Patented Rotational PCI-E 8 Slot

Specially designed with dual GPU placement options, the View 51 TG Snow ARGB has support for both vertical and horizontal graphics card layouts. With dual PCI-E slot designs (and an optional PCI-e riser cable), the included riser GPU support bracket will not only prevent the graphics card from sagging, but also help reduce the overall weight on the motherboard. Thermaltake TT Premium PCI-E 3.0 Extender (Optional) – Supports a wide range of GPU solutions. This is an extreme high-speed cable with highly-routable design, EMI shielding with conducting polymer are crafted for meeting the most demanding system. Available in 300mm, 600mm and 1000mm length.

Dust Reduction

Two magnetic super fine fan filters with excellent protection and reduction against dirt on the right side and another easily removable filter at the bottom. Airflow In and Out Thanks to the dedicated design of the View 51 TG Snow ARGB, the airflow within the case moves smoothly, ensuring the interior temperature stays low at all times.

Opportunities For High-End Expansion

View 51 TG Snow ARGB has excellent expandability. It can support a CPU cooler with a maximum height of 175mm, two-way VGA placement of up to 440mm in length (without water pump), a power supply with a length of up to 200mm. The View 51 TG Snow ARGB is optimized for advanced AIO/DIY liquid cooling components and supports all kinds of AIO liquid cooling solutions. It is able to hold up to 360mm custom liquid cooling radiator and up to 360mm AIO liquid coolers. Three ARGB fans are preinstalled with two 200mm at the front and one 120mm at the rear. Moreover, the View 51 TG Snow ARGB can also house up to three 140mm fans at the front and on the top.

DMD: Dismantlable Modular Design

Strip your case down to the bones and install elements when and as you need them with our modular design. The View 51 TG Snow ARGB features modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

Specifications:

P/N	CA-1Q6-00M6WN-00
SERIES	View
MODEL	View 51 TG Snow
CASE TYPE	Full Tower
DIMENSION (H X W X D)	550 x 315 x 525 mm (21.65 x 12.4 x 20.67 inch)
NET WEIGHT	14.95 kg / 32.96 lb
SIDE PANEL	3 x Tempered Glass (4mm thickness)
COLOR	Exterior & Interior: White
MATERIAL	SPCC
COOLING SYSTEM	Front (intake) : 2 x 200 x 200 x 30mm Addressable RGB fan (600rpm, 24dBA) Rear (exhaust) : 1 x 120 x 120 x 25mm Addressable RGB fan (1000rpm, 27.2 dBA)
DRIVE BAYS -ACCESSIBLE -HIDDEN	2 x 2.5’’ (With HDD Bracket) 2 x 3.5’’ or 2.5’’ (With HDD Cage)
EXPANSION SLOTS	8
MOTHERBOARDS	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX)
I/O PORT	1 x USB 3.1 (Gen 2) Type C, 2 x USB 2.0, 2 x USB 3.0, 1 x HD Audio, 1 x RGB Buttom
PSU	Standard PS2 PSU (optional)
FAN SUPPORT	Front: 2 x 200mm or 1 x 200mm 3 x 140mm or 2 x 140mm or 1 x 140mm 3 x 120mm or 2 x 120mm or 1 x 120mm Top: 2 x 200mm or 1 x 200mm 3 x 140mm or 2 x 140mm or 1 x 140mm 3 x 120mm or 2 x 120mm or 1 x 120mm Rear: 1 x 120mm , Right: 3 x 120mm or 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Bottom: 3 x 120mm or 2 x 120mm or 1 x 120mm
RADIATOR SUPPORT	Front: 1 x 360mm or 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm Top: 1 x 360mm or 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm Right: 1 x 360mm or 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm Bottom: 1 x 360mm or 1 x 240mm or 1 x 120mm
CLEARANCE	CPU cooler height limitation: 175mm VGA length limitation: 300mm(With Water Pump) 440mm(Without Water Pump) PSU length limitation: 200mm
