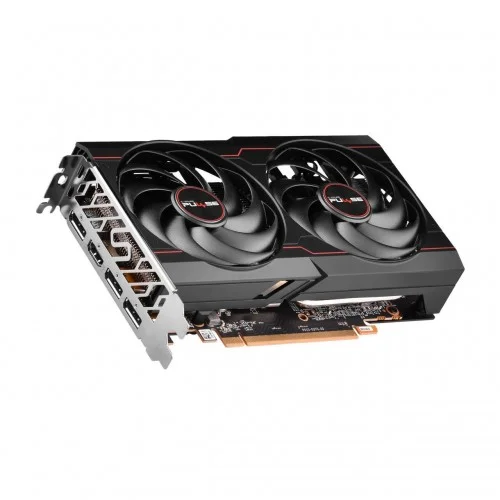

Sapphire Pulse AMD Radeon RX 6600 Gaming 8GB GDDR6 Graphics Card

Video Memory Specifications
Type	GDDR6
Size	8GB
Resolution	7680×4320
Core Clock	Boost Clock: Up to 2491 MHz Game Clock: Up to 2044 MHz
Memory Clock	14 Gbps Effective
BUS Type	128 bit
Memory Interface	PCI-Express 4.0
Stream Processors	1792
Interface
Display Port	3x DisplayPort (7680×4320)
HDMI	1x HDMI (7680×4320)
Power Specifications
Connectors	1 x 8-pin Power Connector
Recommended PSU	500 Watt
Consumption	140W (Board Power)
Display Option
Multi Display	Maximum 4 Displays
Application Programming Interfaces
DirectX	12 Ultimate
Physical Specifications
Dimensions	193(L)X 120.05(W)X 40.05(H)mm
Others	2 slot, ATX
Warranty
Manufacturing Warranty	2 Years

Sapphire Pulse AMD Radeon RX 6600 Gaming 8GB GDDR6 Graphics Card

Sapphire Pulse AMD Radeon RX 6600 Gaming 8GB GDDR6 Graphics Card Headlines With 2048 Stream Processors Running With A Lift Clock Of Up To 2593 MHz And A Game Clock Of Up To 2382 MHz. The Newest 8GB Of GDDR6 High-Speed Memory Clocked At 16 Gbps Effective With 32 MB Of AMD Infinity Cache, Which Dramatically Reduces Latency And Power Consumption, Ensuring Higher Overall Gaming Performance Than Traditional Architectural Designs. It’s Equipped With 4 Output Ports Including 1 X HDMITM And 3x Display Port 1.4 With DSC Outputs To Support The Newest Display Monitors Within The Market. The Heart Beat AMD Radeon™ RX 6600 XT Graphics Card Series Features 32 Powerful Enhanced Compute Units And 32 Ray Accelerators. Remarkable Dual-X Cooling Technology Behold A Silent And Funky Gaming Experience On The Heart Beat AMD Radeon RX 6600 XT Graphics Card, Designed With The Powerful Dual-X Cooling Technology. Powered By Two Massive And Quiet Fans, The Streamlined Sort Of The Blades End In Greater Airflow And More Heatsink Coverage At A Coffee Background Level Of 32dBA. Sapphire Pulse AMD Radeon XT Gaming OC 8GB Graphics Card Works In Tandem With The Intelligent Fan Control Feature To Stay The Temperature Of All The GPU Components Low, While Balancing Performance And Fan Noise. The Fuse Protection Feature Is Engineered Into The Circuit Of The External PCIe Power Connector To Preserve The Components And Protect The Graphics Card.

Sapphire Pulse AMD Radeon RX 6600 Gaming 8GB GDDR6 Review

AMD powers the Radeon RX 6600 with its Navi 31 XL GPU, compared to the Navi 31 XT GPU used in the slightly higher-end Radeon RX 6600 XT. We also have 8GB of GDDR6 memory with Infinity Cache, with the card bound to PCIe 4.0 x8 compared to the higher-end GPU offerings with PCIe 4.0 x16. SAPPHIRE’s new custom PULSE Radeon is a no-frills GPU that offers reference RX 6600 clock speeds, a compact form with dual fans, and it’s virtually silent during operation. It packs quite the punch at 1080p, rocks a single 8-pin PCIe power connector, and will fit virtually anywhere. The RDNA 2 architecture gets spread a little thinner here to make the Radeon RX 6600, with the same 11.1 billion transistors that was used on the Radeon XT. There’s cut down 28 Compute Units here on the RX 6600, compared to 32 Compute Units on the RX 6600 XT while there’s 1792 Stream Processors, down from 2048 Stream Processors. AMD is still using 32MB of Infinity Cache on the Radeon, with the same 8GB of GDDR6 memory on a 128-bit memory bus and PCIe 4.0 x8 connector. The board power is just 132W, down 28W from the Radeon RX 6600 XT and its 160W TBP. Not too damn bad at all there, AMD. 1080p gaming is where AMD is aiming with the Radeon, and when compared against the GeForce RTX 2060, the new RDNA 2-powered Radeon RX 6600 holds its own. We have 79FPS average in Assassin’s Creed Valhalla, 142FPS average in Battlefield V, 95FPS average in Call of Duty: Black Ops Cold War, 136FPS average in F1 2021, and 114FPS average in Hitman 3 — not bad at all. Even in something like Cyberpunk 2077 we have 70FPS average at 1080p on the Radeon RX 6600, and 145FPS average in Resident Evil Village. Very, very nice results there. Far Cry 6 and DEATHLOOP just launched, with 91FPS average at 1080p in Far Cry 6 on the Radeon RX 6600 and 85FPS average in DEATHLOOP. Once again, that’s not damn bad at all — but do keep in mind, many of these results are with Smart Access Memory enabled. One of the biggest things for me is the performance-per-watt side of the Radeon, especially if you consider how bad the performance-per-watt was with the Radeon RX Vega 64.Wrapping up the Radeon RX 6600: 100FPS+ average in AAA g names, 1.3x the performance-per-watt versus the GeForce RTX 3060, and 2x faster in some games with FSR enabled and on Performance Mode on the Radeon RX 6600. When the package for the SAPPHIRE PULSE Radeon turned up, I didn’t even think it was a graphics card the box was that small. But yep, it was… the card and box are just that small. The SAPPHIRE PULSE Radeon graphics card is petite, from the retail packaging to when the card is in your hands and then inside of your PC.I do like that SAPPHIRE didn’t cheap out on the back of the card, with the PULSE Radeon RX 6600 featuring the usual PULSE backplate.

COMPARE SAPPHIRE PULSE GRAPHICS CARD

SAPPHIRE GPU	RECOMMENDED PSU
Sapphire Pulse Radeon RX 550 4GB GDDR5 Graphics Card	400 Watt (Recommended)
Sapphire Pulse Radeon RX 570 4GB GDDR5 HDMI DP Graphics card	500 Watt
Sapphire Pulse Radeon RX 570 8GB GDDR5 Graphics Card	500 Watt
Sapphire Pulse Radeon RX 5700 XT 8GB GDDR6 Graphics Card	Recommended 650 Watt
Sapphire Pulse Radeon RX 5600 XT 6GB GDDR6 Graphics Card	Recommended 500 Watt
Sapphire Pulse Radeon RX 5700 8GB GDDR6 Graphics Card	Recommended 650 Watt
Sapphire PULSE AMD Radeon RX 6700 XT GAMING OC 12GB GDDR6 Graphics Card	Minimum 650 Watt
Sapphire Pulse AMD Radeon RX 6400 4GB GDDR6 Graphics Card	350 Watt
Sapphire Pulse AMD Radeon RX 6500 XT Gaming OC 4GB GDDR6 Graphics Card	Minimum 400 Watt
Sapphire Pulse AMD Radeon RX 6600 Gaming 8GB GDDR6 Graphics Card	500 Watt
Sapphire Pulse AMD Radeon RX 6600 XT Gaming OC 8GB GDDR6 Graphics Card	Minimum 500 Watt
Sapphire Pulse AMD Radeon RX 6800 OC Gaming 16GB GDDR6 Graphics Card	650 Watt
Sapphire Pulse AMD Radeon RX 6800 XT 16GB GDDR6 Graphics Card	750 Watt
